MDM 45 Mobile Asphalt Drum Mix Plant
40–60 TPH | Single-Drum Mixing | Portable & Fuel-Efficient

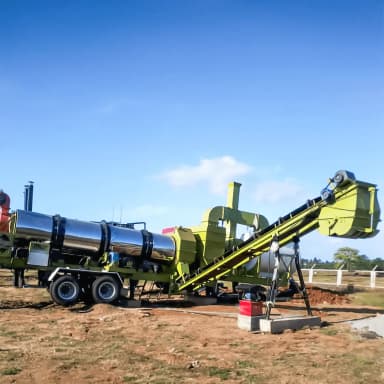

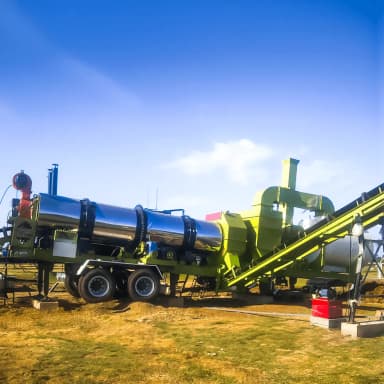

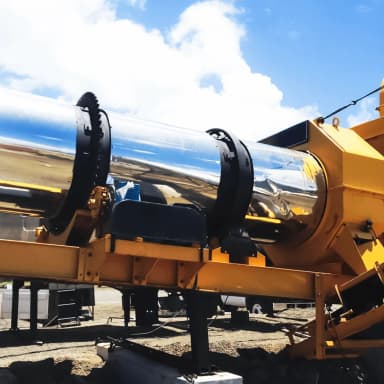

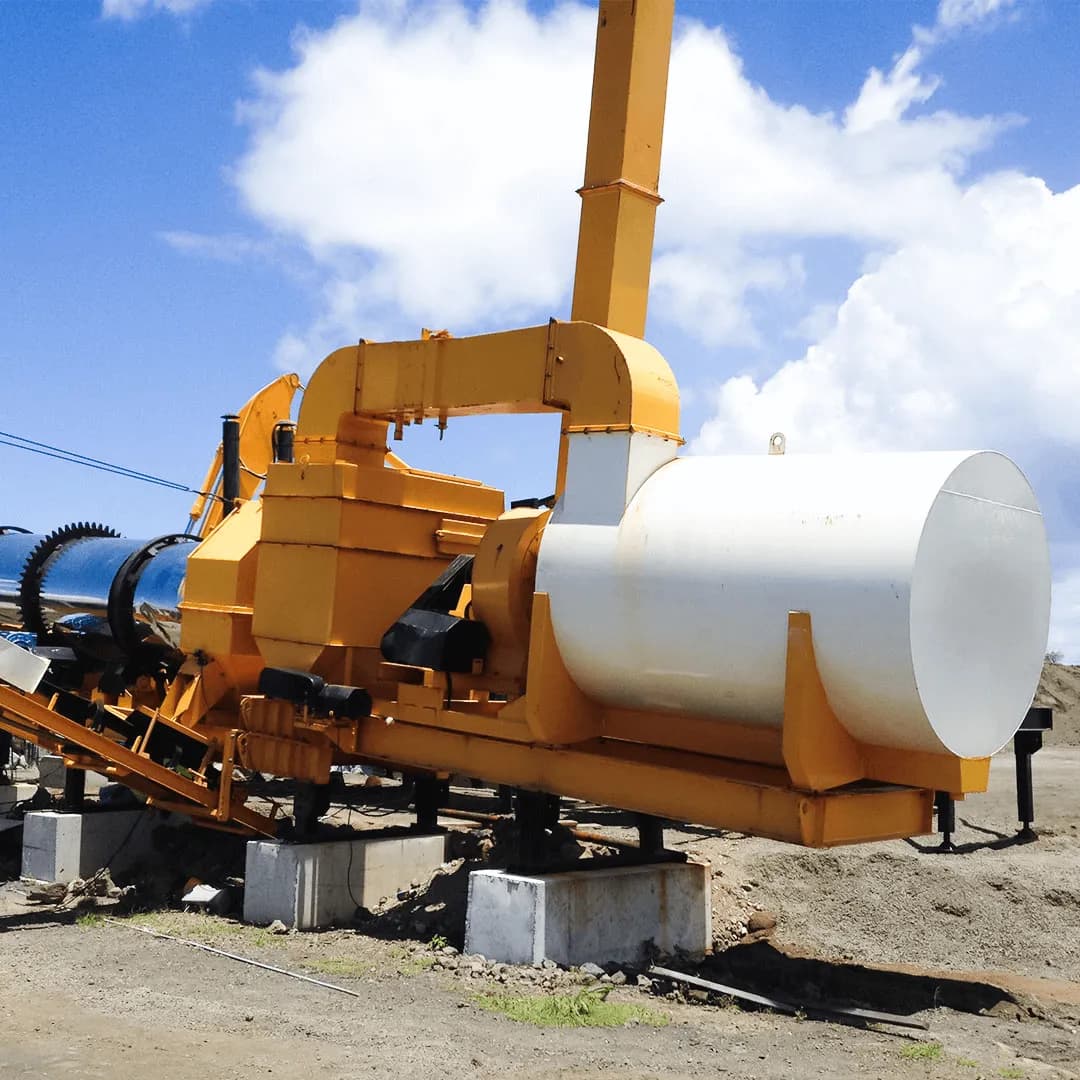

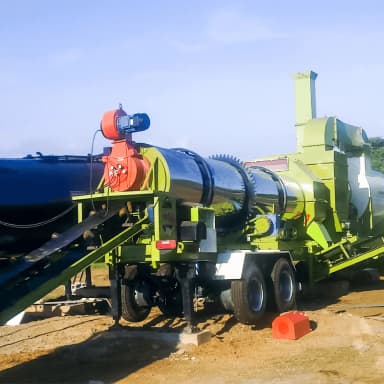

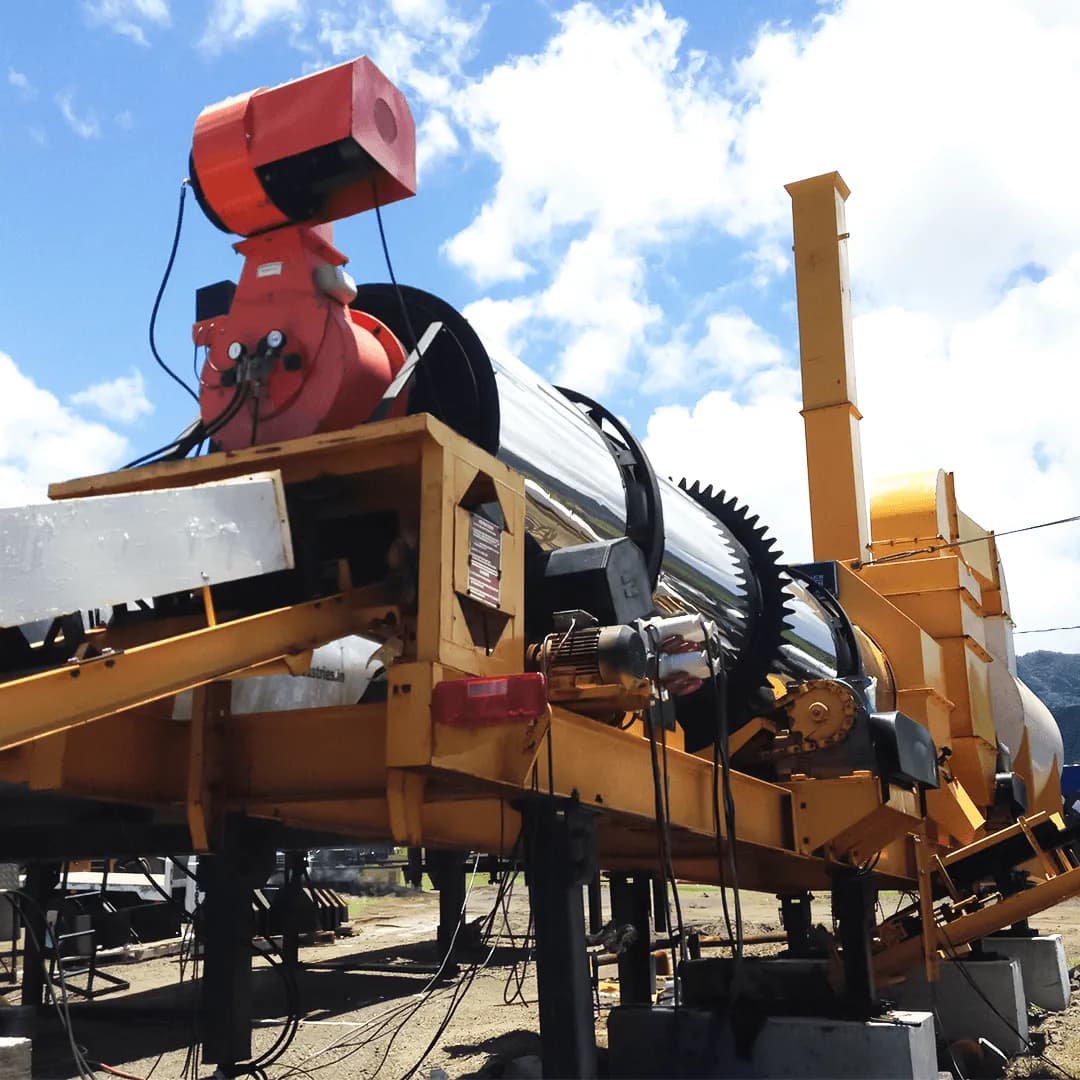

The Atlas MDM 45 Mobile Asphalt Drum Mix Plant is a high-performance, mobile asphalt production system designed for 40–60 tons per hour output. Built for regional contractors, infrastructure developers, and municipal road agencies, it delivers reliable asphalt quality with the flexibility of quick relocation and minimal setup time....
Read More
Consistent Asphalt Quality
Efficient Transport
Economical Operations
MDM 45: Mobile Solution for Medium to Large-Scale Asphalt Projects
Key Features & Benefits
High Mobility | Continuous Efficiency | Rugged Construction
Single-Drum Continuous Mixing
Combines drying and mixing for uninterrupted asphalt production with uniform coating.
Precision Flight Design
Drum flights ensure maximum heat transfer and reduce fuel consumption by improving aggregate heating efficiency.
Rapid Deployment
Modular and pre-wired systems enable setup within a single working day.
Fuel Flexibility
Operates on diesel, LDO, furnace oil, or modulating gas burners with auto-viscosity control for optimized spray temperature.
Why Choose Atlas MDM 45?
Explore how the MDM 45 combines flexibility, performance, and reliability for demanding road projects.
Balanced Capacity
Rated for 40–60 TPH, providing efficient production for urban and regional road construction.
Durability & Longevity
Heavy-duty frame, wear-resistant liners, and low-vibration half-chain drive extend component life.
Thermal Efficiency
Optional ceramic wool & rock wool drum insulation ensures better heat retention and reduced energy costs.
All-Climate Performance
Rock-wool insulated bitumen tanks and hot-oil jacketing maintain smooth material flow in all weather conditions.
Factory-Tested Reliability
Every plant undergoes full factory trials and comes with on-site commissioning support.
Components Breakdown
Each component of the Mobile Asphalt Drum Mix Plant is optimized for mobile operation and rapid deployment.
- • Heavy-duty chassis with axles, kingpin, and pneumatic braking.
- • Safety lighting and reinforced frame for transport compliance.
Smart Design, Seamless Operation
Browse our range of products designed for exceptional performance and reliability.
CONNECT WITH US
Ready to Build? Let’s Talk!
Whether you’re expanding existing facilities or starting new projects, we’re here to help you achieve optimal results. Complete the form, and our engineers will provide a customized solution within 24 hours.
Frequently asked questions.
1. What is the rated capacity of MDM 45?
+The MDM 45 delivers 40–60 TPH under standard conditions (3% aggregate moisture at 150°C output).
