Mini Concrete Batching
Plants [8-13 m³/hr]

Compact & Mobile Solutions for Remote Concrete Production

View Products

Products

Discover and filter the products you need.

Filters

Product Capacity (m³/hr)

8 m³/hr13 m³/hr

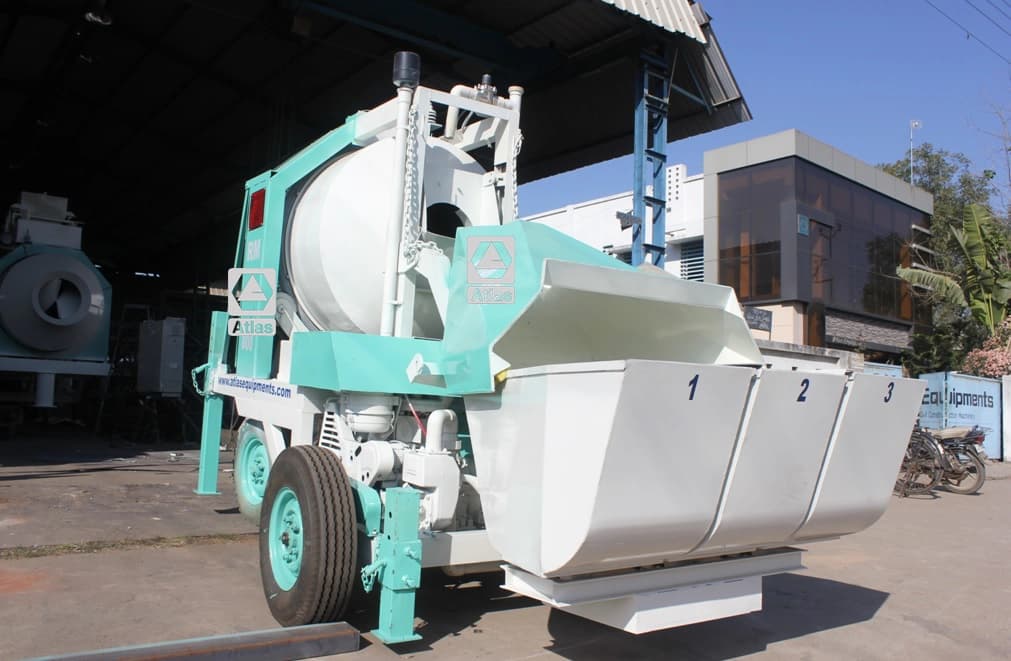

READY MIX-RM-1050 (Diesel Engine)

12-13 m³/hr | Reversible Drum Mixer

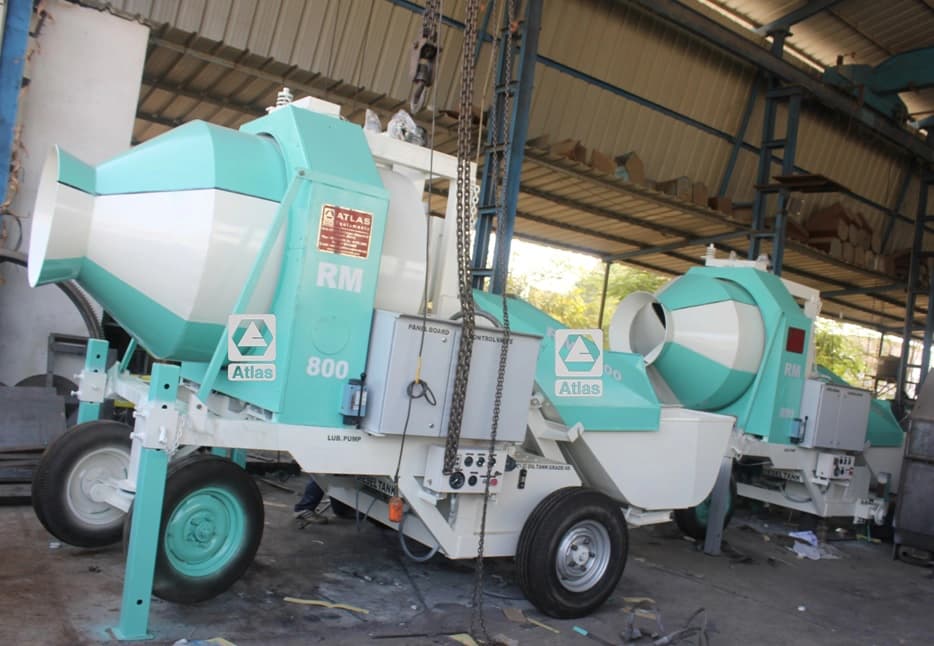

READY MIX-RM-800 (Diesel Engine)

8-9 m³/hr | Reversible Drum Mixer

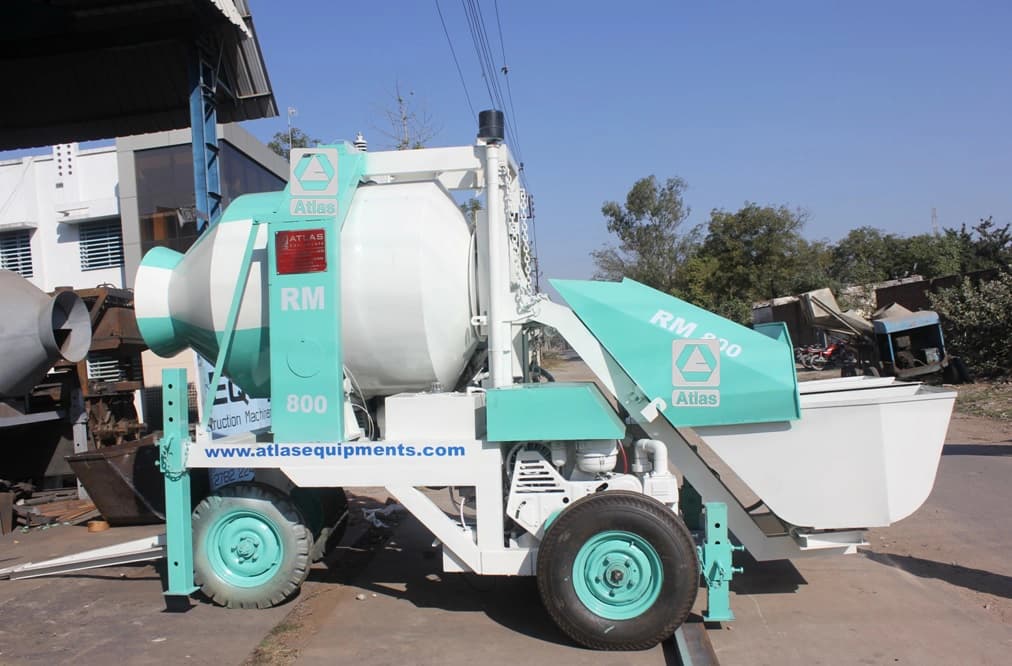

READY MIX-RM-1050 (Electric)

12-13 m³/hr | Reversible Drum Mixer

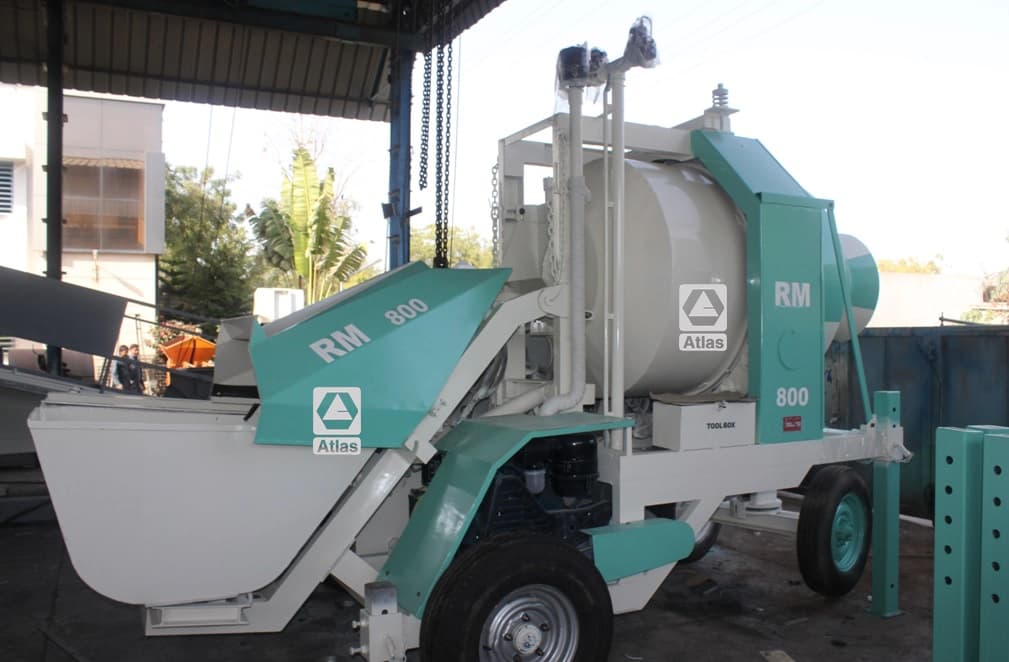

READY MIX-RM-800 (Electric)

8-9 m³/hr | Reversible Drum Mixer

Overview

Big Performance in Small Footprints

Atlas Mini Concrete Batching Plants are designed for small-scale projects requiring cost-effective and reliable concrete production. These plants are ideal for applications like rural roads, pavements, building foundations, and small precast units.

With a reversible drum mixer and compact design, these plants offer unmatched mobility and ease of use. Powered by either diesel engines or electric motors, they are perfect for remote locations, areas with limited electricity, or confined construction sites.

BENEFITS

Why Contractors Choose Atlas Planetary Mixer Plants

Extreme Mobility

−

✓ Towable by pickup trucks (RM-800: <4,500 kg)
✓ No foundation needed – operates on compacted ground

Precision Batching

✓ Individual load cells for aggregates, cement & water (±1.5% accuracy)
✓ Auto water refill with level sensors

Maintenance Made Simple

✓ Single-lever lubrication (11–14 points)
✓ V-belt driven drum – no gearbox servicing

Smart Control

✓ Recipe storage & printing
✓ Optional SCADA connectivity

CONNECT WITH US

Ready to Build? Let’s Talk!

Fill out the form to share your project needs and discuss the best option for it.

Frequently asked questions.

1. How does the reversible drum improve mixing?

−

Clockwise (mixing) + anticlockwise (discharge) action ensures 98% homogeneity in just 90 seconds – ideal for stiff rural road mixes.

2. What types of projects are suitable for Mini Concrete Batching Plants?

These plants are ideal for small-scale projects like rural roads, pavements, building foundations, and small precast units. They are also perfect for remote or confined construction sites.

3. How is water addition controlled in the Mini Concrete Batching Plants?

Water is weighed using a load cell under the water tank, and the exact amount can be controlled via the control panel. The water pump automatically refills the tank when the water level falls below the desired level.

4. What is the advantage of the single-lever lubrication system?

The single-lever lubrication system simplifies maintenance by lubricating all moving parts (11 points for RM-800, 14 points for RM-1050) with a single pull, ensuring smooth operation and reducing wear and tear.
