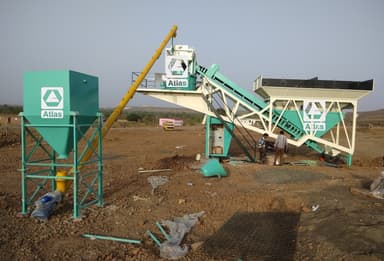

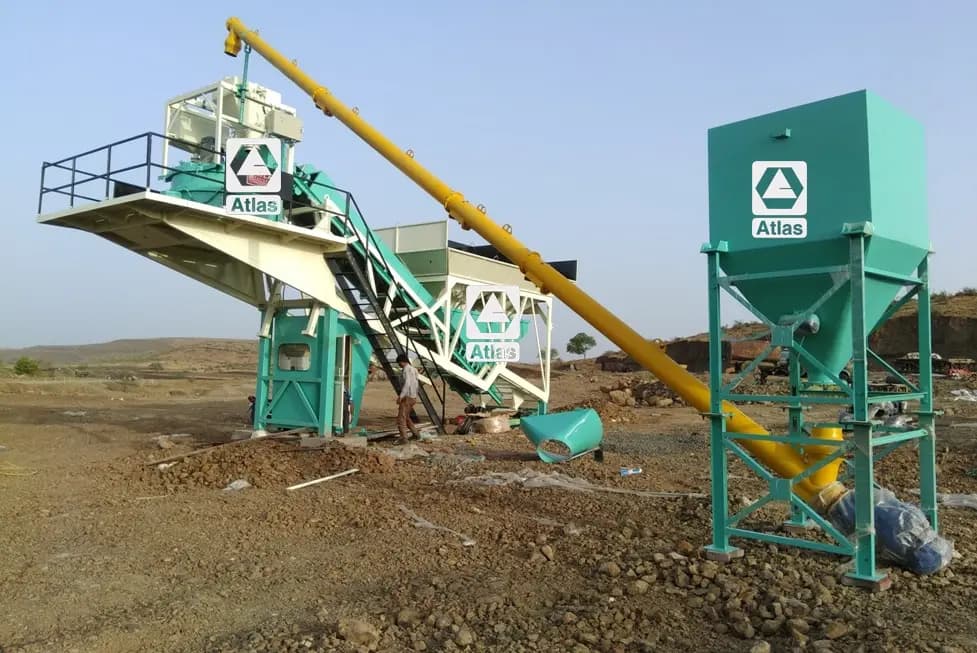

ATMIX CLASSIC 45 (Pan Mixer) Stationary Concrete Batching Plant
Pan Mixer (500 Litres, 30 m³/hr) | Control: PLC + HMI (SCADA Optional)
The Atlas ATMIX CLASSIC 45 (Pan Mixer) delivers dependable and economical concrete production for mid-scale construction and RMC applications. With a rated output of 45 m³/hr, it combines Atlas’s heavy-duty stationary framework with the proven reliability of pan-mixer technology, ideal for consistent quality, low-maintenance operation, and budget-friendly performance....
Read More
ATMIX CLASSIC 45 (Pan Mixer): Efficient Mixing for Everyday Concrete Production
Key Features & Benefits
Practical Design for Reliability, Efficiency, and Ease of Use
45 m³/hr Rated Capacity
Provides continuous, uniform output for medium-scale construction or RMC production.
Pan Mixer (1125/750 L)
Six-arm mixing spider driven by high-efficiency twin-stage planetary gearboxes (94 % efficiency).
Smart PLC + HMI Automation
Weighing and mixing controlled via 5.7" TFT touchscreen HMI (B&R / Delta) with recipe storage, USB data backup, and optional SCADA/Wi-Fi operation.
Load-Cell Based Weighing System
Four-bin aggregate feeder, cement, water, and additive hoppers mounted on load cells for accurate material proportioning.
Why Choose ATMIX CLASSIC 45 (Pan Mixer)
Designed for dependable, low-maintenance operation with consistent batching accuracy and reduced downtime.
Economical Mixing System
Pan mixer design delivers uniform standard concrete at lower power consumption than twin-shaft or planetary options.
Durability and Ease of Service
12 mm replaceable anti-wear liners and Ni-Hard tips minimize maintenance time and cost.
Simple Automation & Operation
Semi-automatic PLC desk with manual override enables smooth batching and easy operator training.
Flexible Configuration
Optional cement silo (100 T), screw conveyor, and diesel generator integration adapt the plant to site conditions.
Components Breakdown
Each component of the ATMIX CLASSIC 45 (Pan Mixer) is engineered for efficiency, longevity, and safe operation.
- • Four bins (10 m³ each) with pneumatic discharge gates and vibrator.
- • 5 mm mild steel construction, loading height ≈ 4.3 m.
Explore Other Models
Discover more stationary concrete batching plants from Atlas.
CONNECT WITH US
Ready to Build? Let’s Talk!
Whether you’re expanding existing facilities or starting new projects, we’re here to help you achieve optimal results. Complete the form, and our engineers will provide a customized solution within 24 hours.
Frequently asked questions.
1. What type of projects is the ATMIX CLASSIC 45 (Pan Mixer) best for?
+Ideal for medium-scale RMC plants, block manufacturing, and standard construction sites requiring consistent quality concrete.
