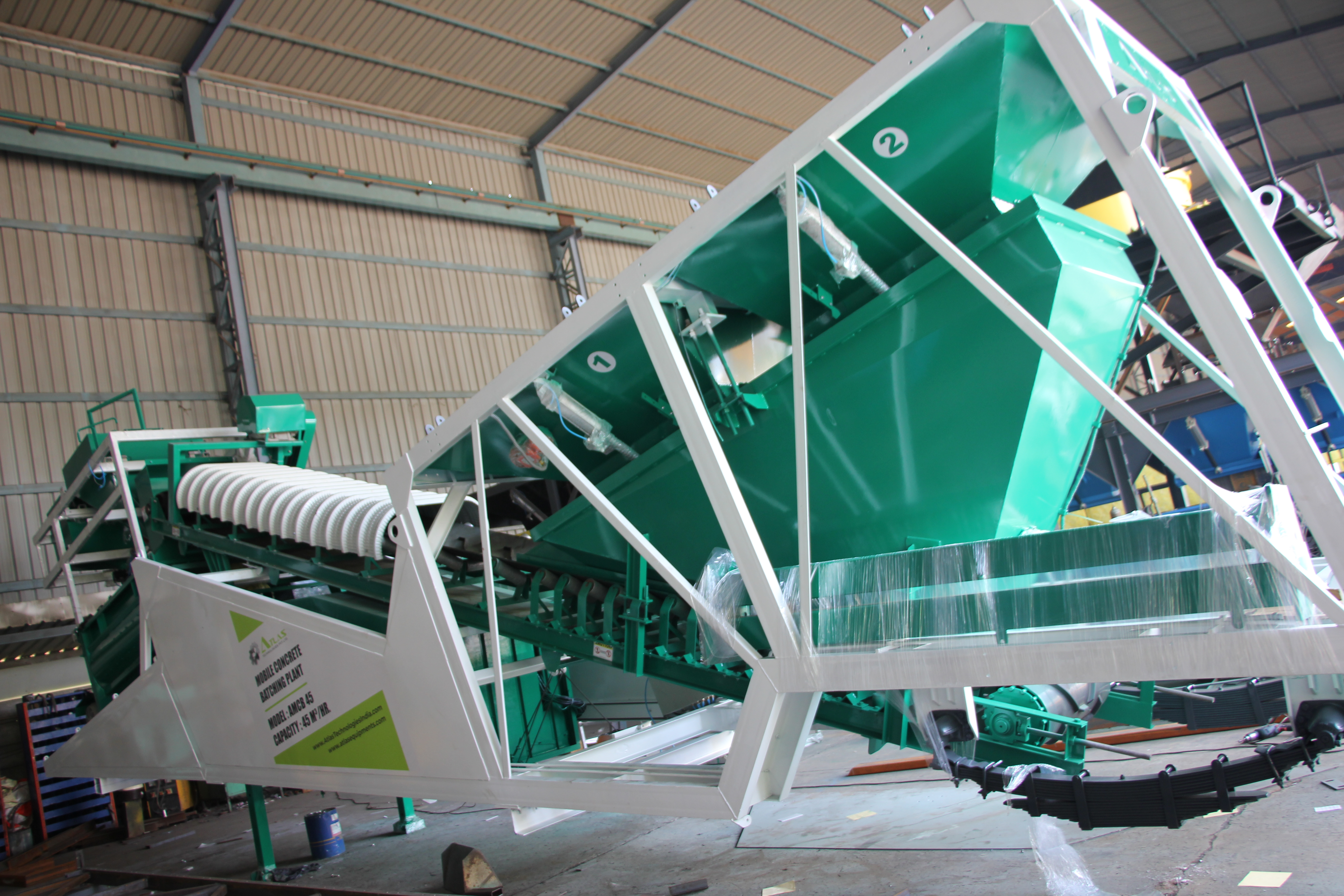

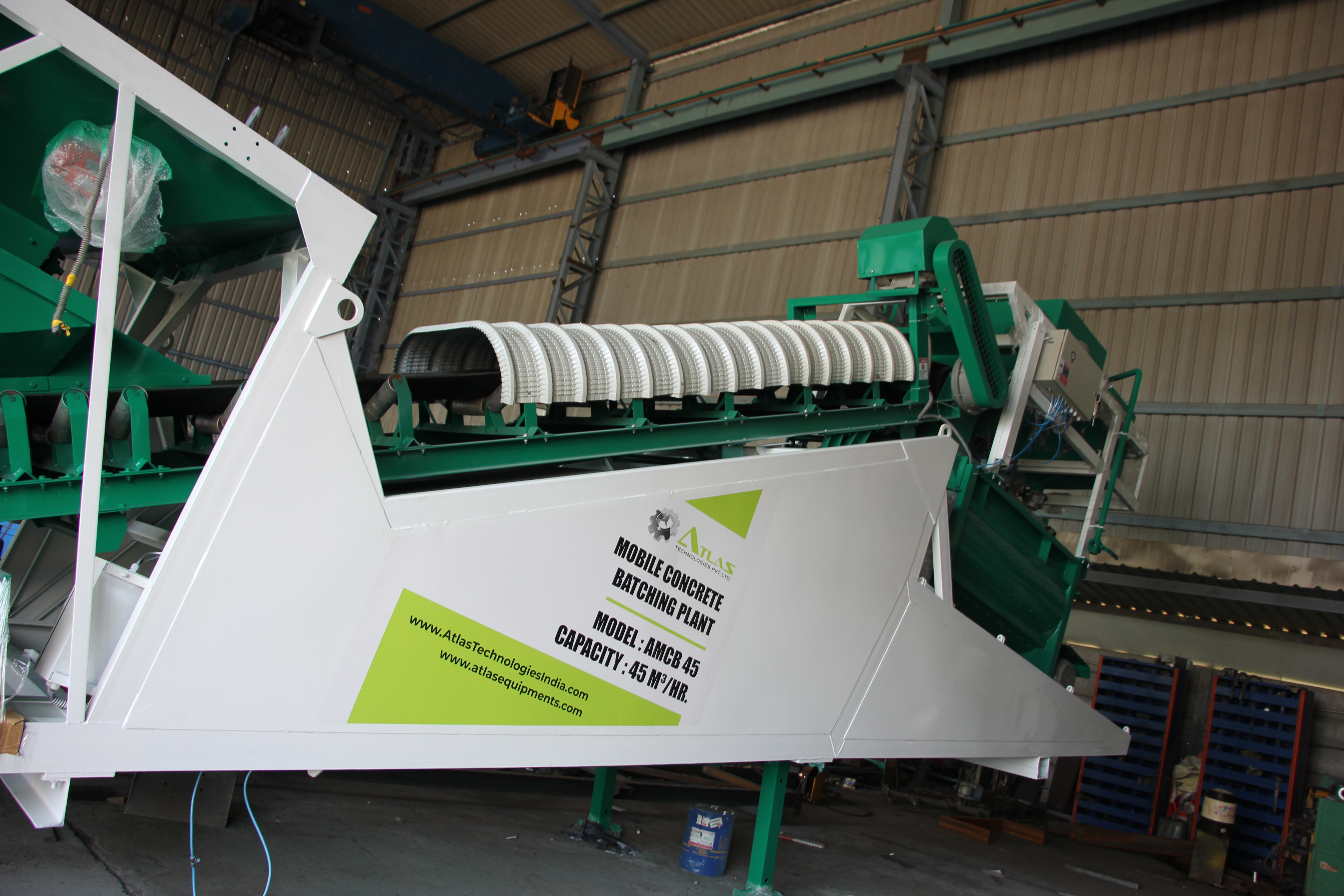

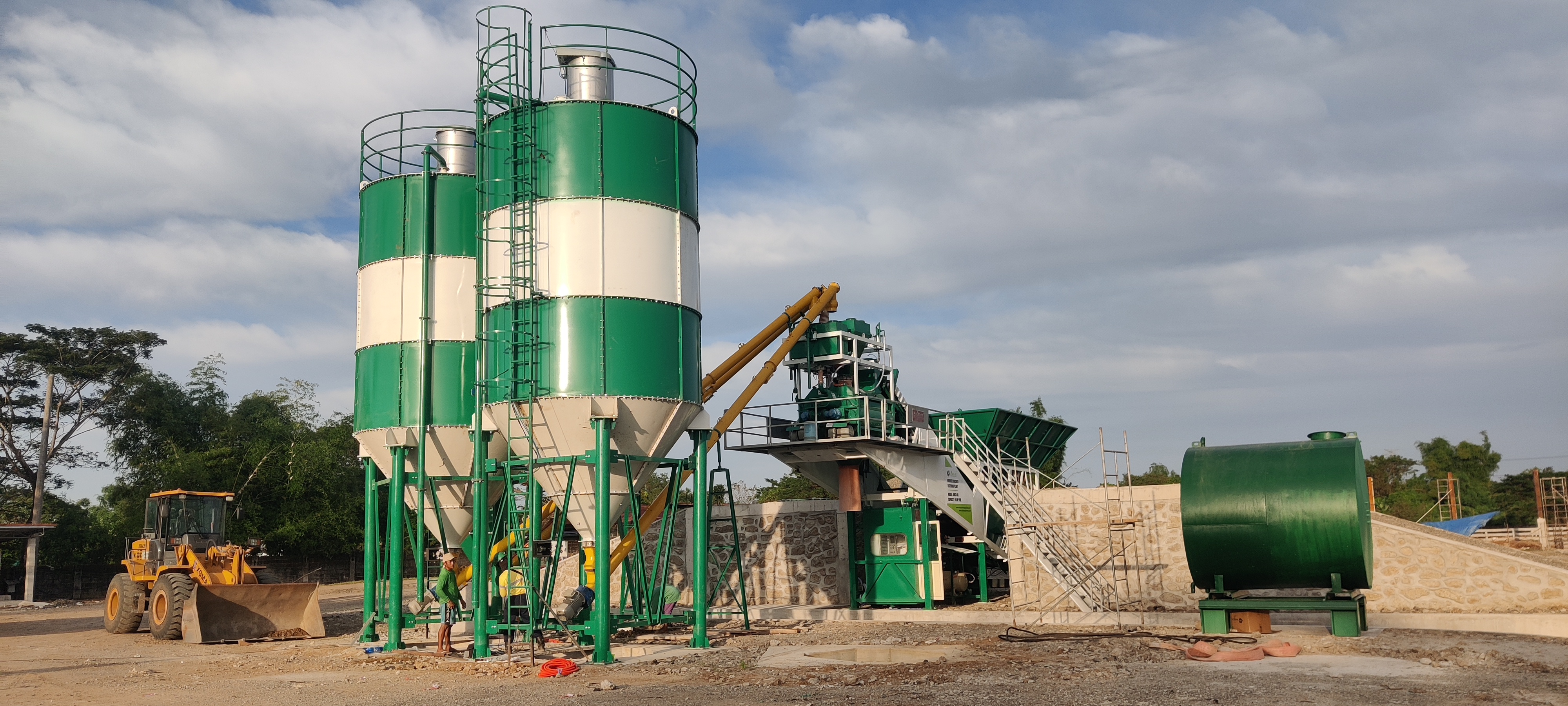

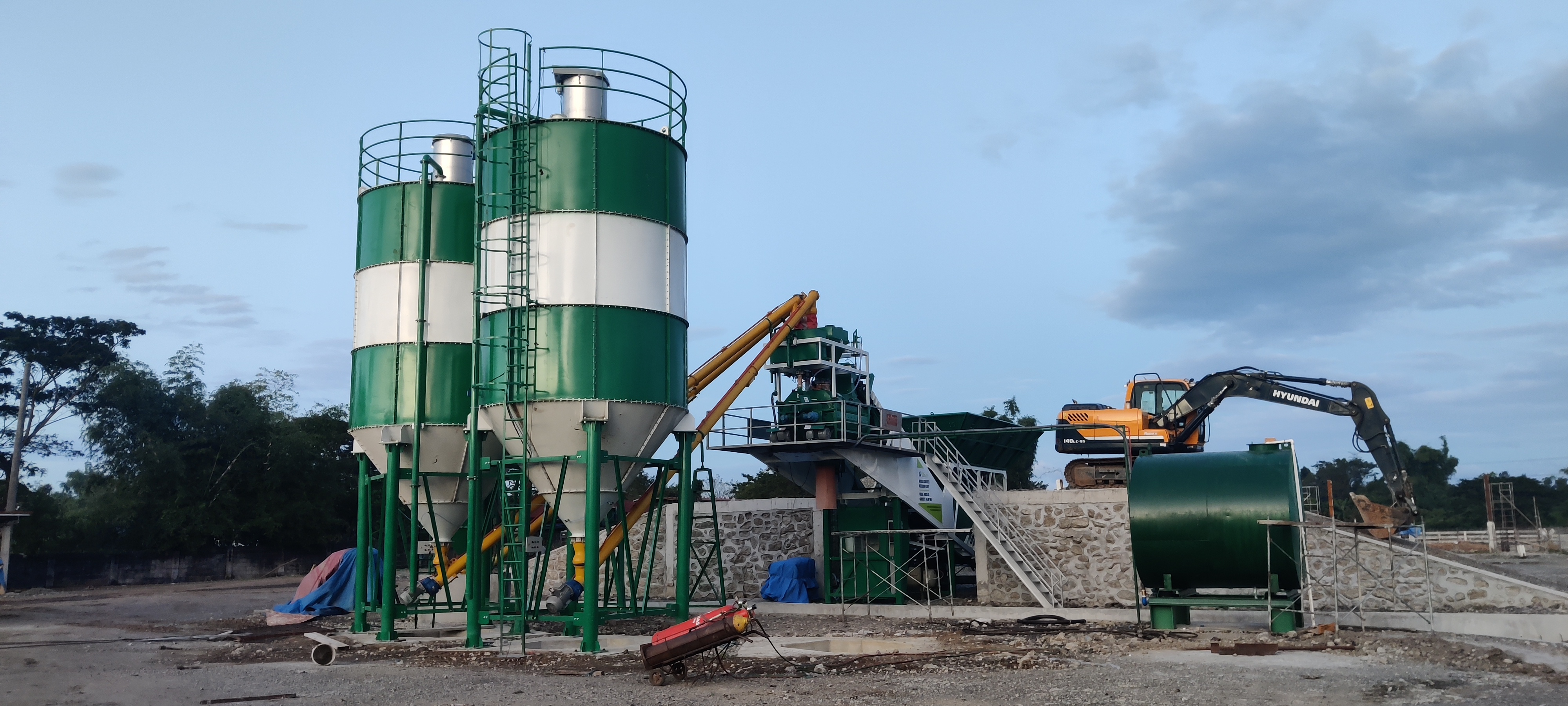

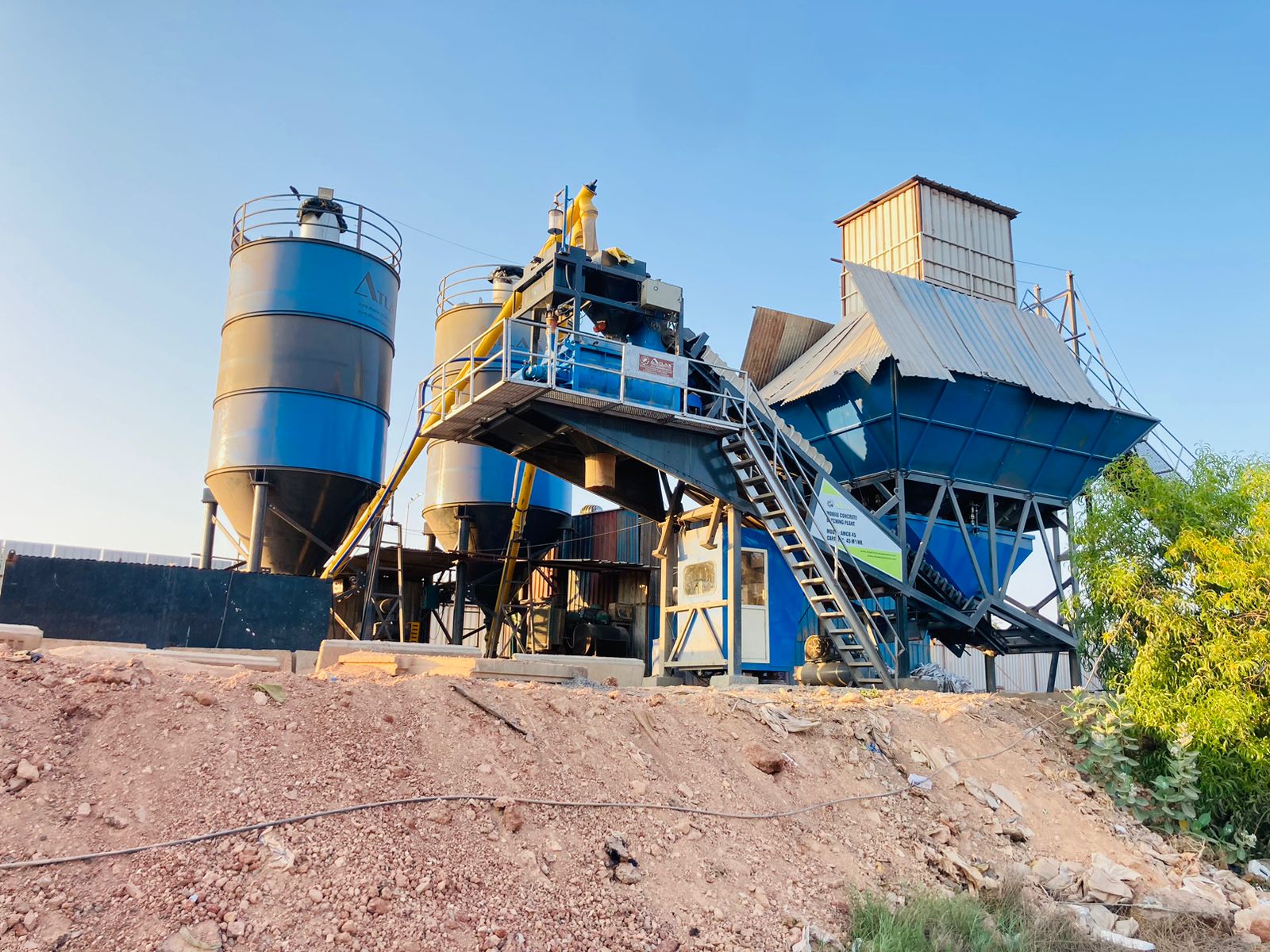

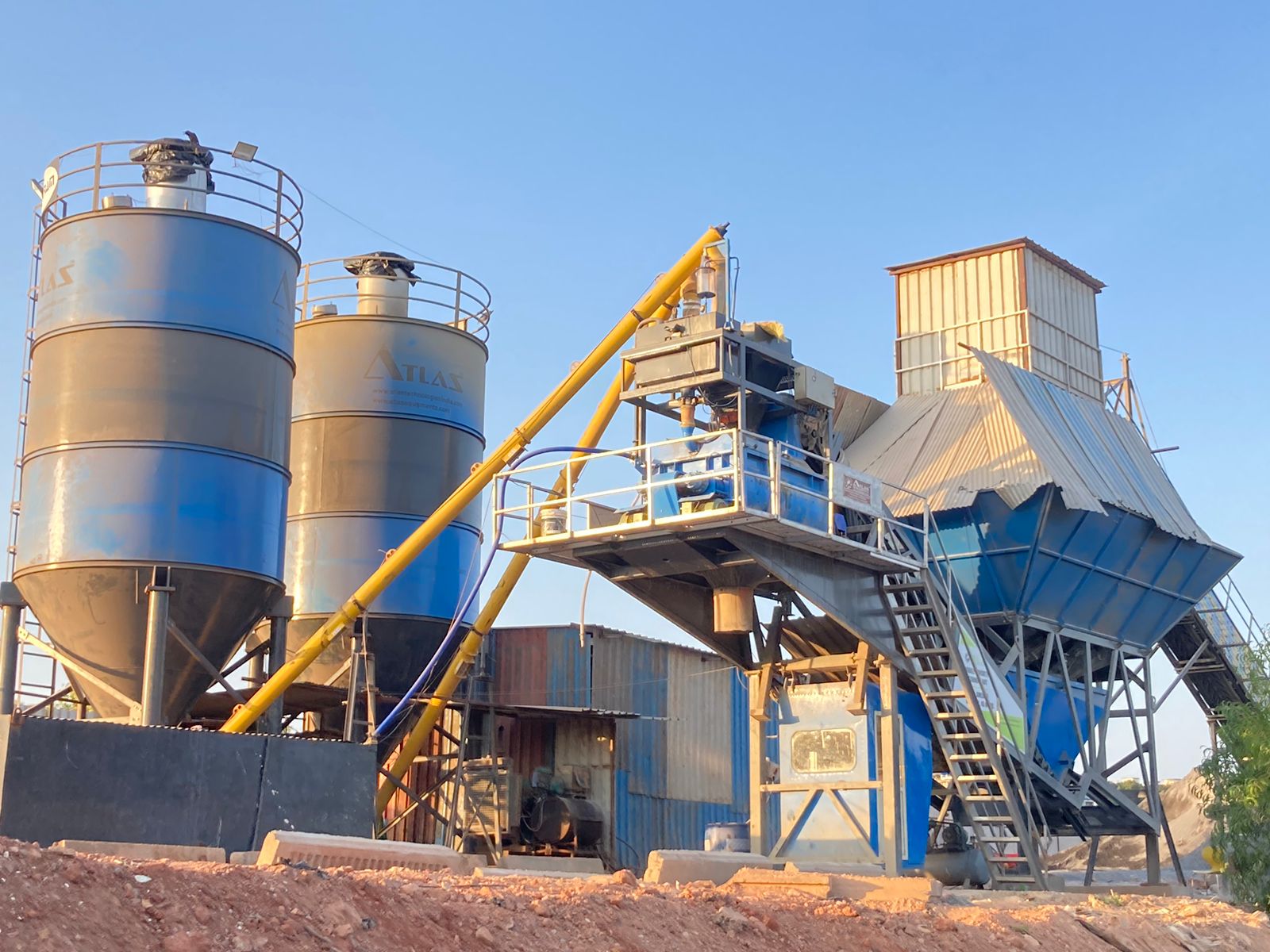

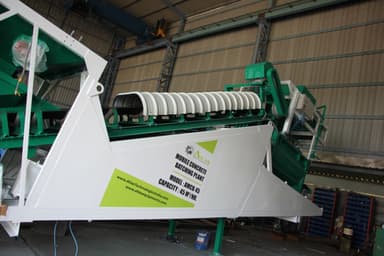

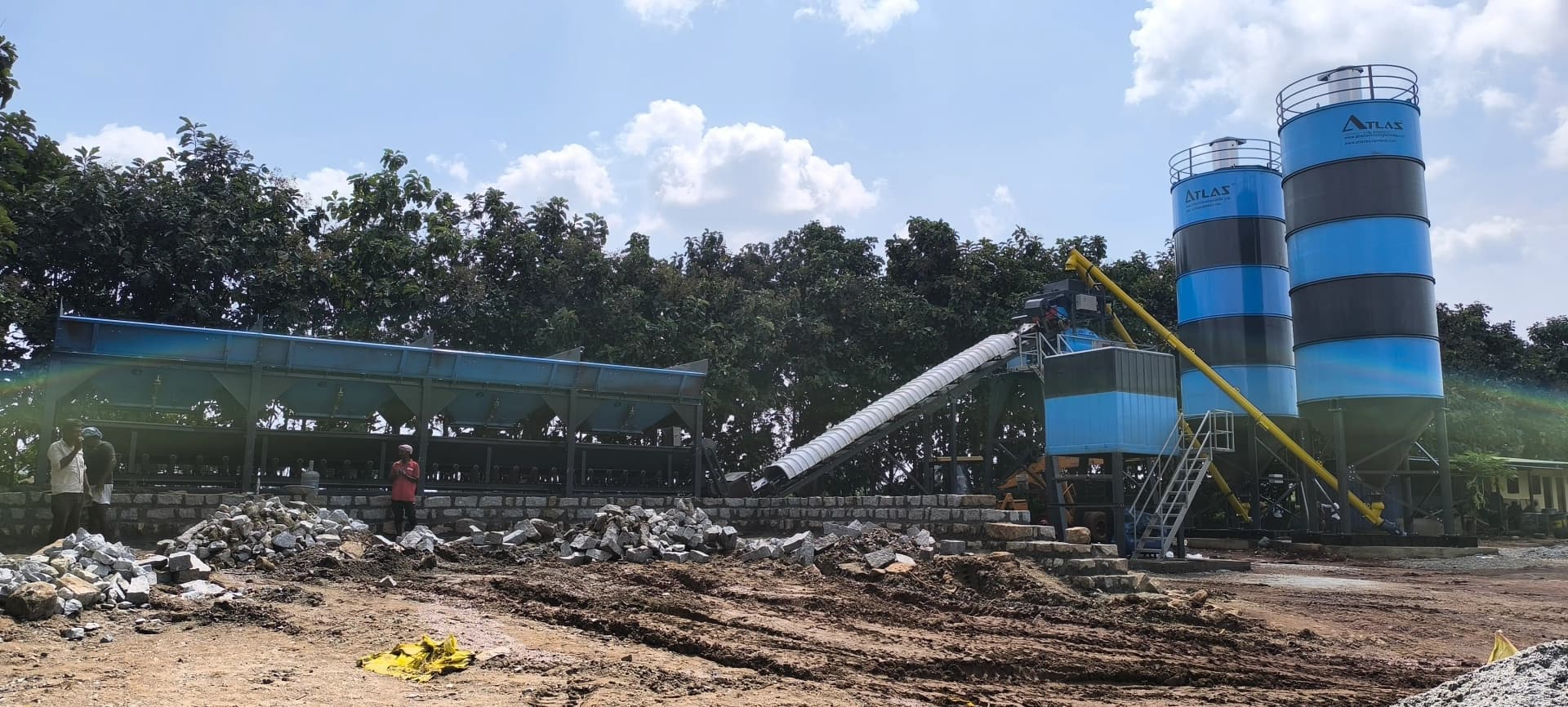

MOBMIX PRO 45 Mobile Concrete Batching Plant (Twin Shaft)
Twin Shaft Mixer (750 Liters, 45M3/HR) | Control: PLC + HMI (SCADA Optional)
The Atlas MOBMIX PRO 45 Mobile Concrete Batching Plant brings stationary-level concrete quality to job sites that demand frequent relocation. With a rated capacity of 45 m³/hr, it offers high-efficiency twin-shaft mixing in a compact, towable design, ensuring quick setup and reliable production even in remote or shifting project conditions....
Read More
True Mobility
Heavy-Duty Mixing
Quick Setup
MOBMIX PRO 45: Reliable Concrete Production On the Move
Key Features & Benefits
Engineered for Portability, Consistency, and Performance
45 m³/hr Mobile Output
Designed for mid-range project volumes, delivering uniform concrete batch after batch with 60-second cycles.
Twin Shaft Mixer (1125/750 L)
Produces 0.75 m³ of vibrated concrete per cycle; Ni-Hard liners (12 mm), cast-iron blades (600 HB), and hydraulic discharge.
Mobile Single-Chassis Design
Compact layout mounts aggregate bins, mixer, and control cabin on one towable frame for rapid relocation and minimal foundation work.
Smart PLC + HMI Automation
5.7" colour touchscreen interface (B&R / Delta) with recipe storage, data logging, and optional SCADA or Wi-Fi remote operation.
Why Choose MOBMIX PRO 45 (Twin Shaft Mixer)
Built for dependable, low-maintenance operation, the MOBMIX PRO 45 ensures consistent batching accuracy, reduced downtime, and long-term reliability.
Stationary-Level Quality, Mobile Design
Delivers the same mixing performance as Atlas stationary plants with the benefit of fast setup and relocation.
Rugged and Easy to Maintain
Ni-Hard liners, hydraulic discharge, and grease automation reduce wear and maintenance frequency.
Fully Automated Operation
PLC-based control desk with auto / manual modes and data logging for complete process traceability.
Flexible Configuration
Optional 100 T cement silo, 14 m screw conveyor, and diesel genset options for remote locations.
Load-Cell Batching
Aggregates, cement, water, and additives are measured independently on load cells for accurate material proportioning and consistent quality.
Components Breakdown
Each sub-system of the MOBMIX PRO 45 is engineered for accuracy, safety, and ease of transport.
- • Four bins (7.5 m³ each) with pneumatic discharge gates and vibrator motor.
- • Constructed from 5 mm MS plate; loading height 5.5 m.
Smart Design, Seamless Operation
Browse our range of products designed for exceptional performance and reliability.
CONNECT WITH US
Ready to Build? Let’s Talk!
Whether you’re expanding existing facilities or starting new projects, we’re here to help you achieve optimal results. Complete the form, and our engineers will provide a customized solution within 24 hours.
Frequently asked questions.
1. What projects is the MOBMIX PRO 45 best suited for?
+Ideal for bridges, infra sites, mid-scale RMC production, and road construction, where frequent site shifts occur.
