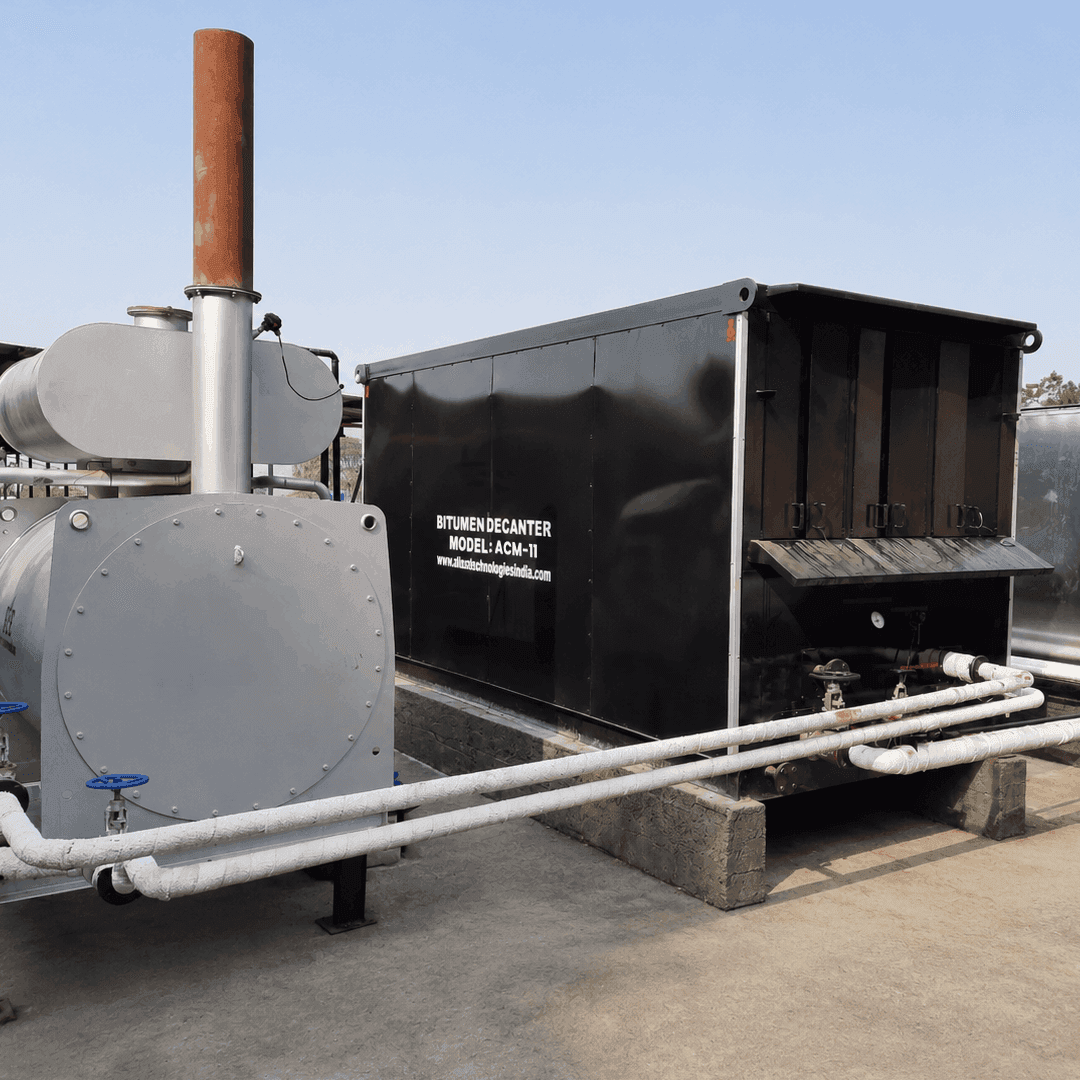

ACM-11 Bitumen Decanter
10 TPH | 60 Barrels | 25 Tons
The Atlas ACM-11 Bitumen Decanter is the largest model in our drum-melting range, engineered for 60 barrels per batch and an output of 10 TPH. It combines high-capacity melting with automated control, ensuring consistent, safe, and economical bitumen delivery for mega-scale infrastructure projects....
Read More
Maximum Capacity
Advanced Automation
Energy Efficient
ACM-11: High-Capacity & Automated Bitumen Melting for Mega Projects
Key Features & Benefits
Engineered for Continuous Large-Scale Operation
High-Efficiency Thermic-Oil Heating
Three-pass indirect heating keeps temperature uniform across 60 drums, eliminating direct flame exposure and preserving binder properties during prolonged operation.

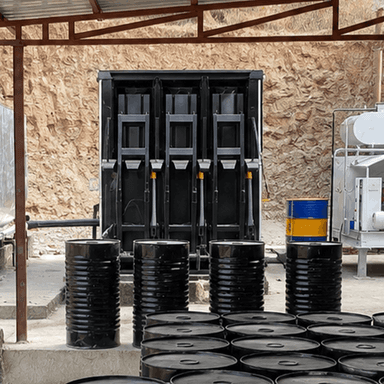

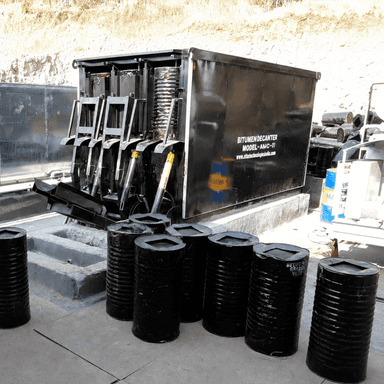

Heavy-Duty Hydraulic Drum Handling
Twin hydraulic lifters enable simultaneous loading of multiple drums, improving throughput while minimizing manual handling risks.
Reinforced Industrial Design
A skid-mounted steel frame, thick-layer insulation, and corrosion-resistant coils ensure stability and durability under 24/7 operation in challenging environments.
Automated Controls & Low Maintenance
Fully automatic PLC/relay panel regulates oil temperature, burner cycles, and pump activity - reducing manual supervision and extending service life.
Why Choose ACM-11
The ACM-11 is purpose-built for contractors running large asphalt or binder plants that require high-volume, continuous bitumen supply with uncompromised safety and thermal efficiency.
Built for Mega-Scale Throughput
Delivering 10 TPH output with a 25-ton storage tank, ACM-11 handles the demands of heavy-duty, continuous melting operations where productivity and uptime are critical.
Uninterrupted Performance
The three-pass thermic-oil system maintains a stable temperature even during long production cycles, ensuring consistent melting quality without overheating or residue build-up.
Fuel Optimization & Cost Control
Insulated panels and automated burner controls reduce heat loss and fuel consumption by up to 25%. Compatible with diesel, LDO, and gas for on-site flexibility.
Operator Safety & Automation
Hydraulic loading and auto-level controls eliminate manual risks, while pressure relief valves and emergency shutoffs ensure safe operation in high-temperature conditions.
Worldwide Service & Customization
Atlas supports installations in 40+ countries with on-site training and spare supply. Units can be customized with dual pumps, remote monitoring, or integrated storage modules for specific project needs.
Components Breakdown
The ACM Series of Bitumen Decanting Machine offers quick startup and continuous flow of molten bitumen.
- • Fully automatic diesel/LDO/gas burner maintains oil temperature at 200–240 °C.
- • Larger coil surface area ensures rapid melting and energy efficiency.
Smart Design, Seamless Operation
Browse our range of products designed for exceptional performance and reliability.
CONNECT WITH US
Ready to Build? Let’s Talk!
Whether you’re expanding existing facilities or starting new projects, we’re here to help you achieve optimal results. Complete the form, and our engineers will provide a customized solution within 24 hours.
Frequently asked questions.
1. What project scale is ACM-11 best suited for?
+ACM-11 is designed for large asphalt and infrastructure plants requiring continuous bitumen melting and storage capacity beyond 20 tons.
