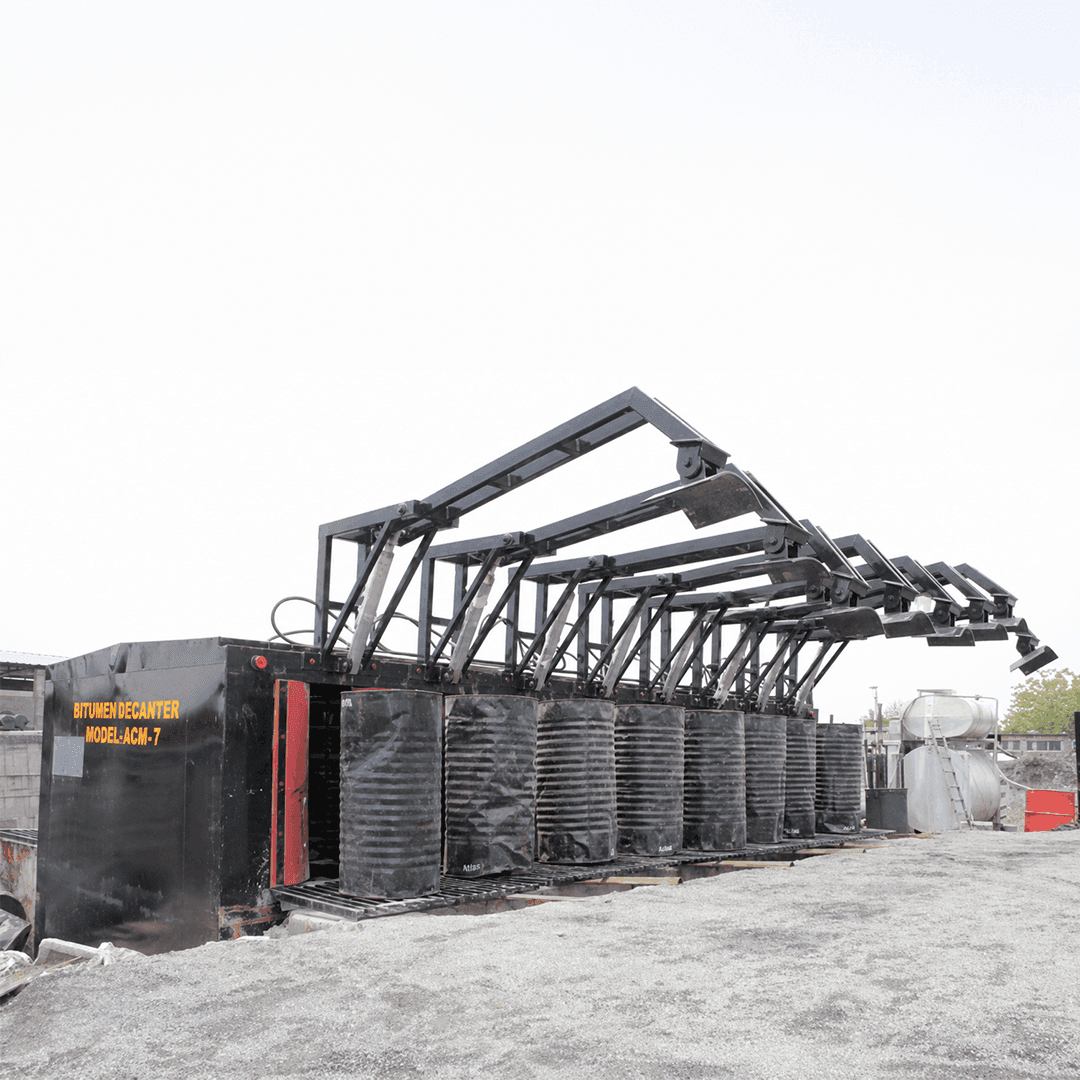

ACM-7 Bitumen Decanter
6 TPH | 40 Barrels | 15 Tons
The Atlas ACM-7 Bitumen Decanter is a mid-range model in our drum-melting series, designed for 40 barrels per batch and an output of 6 TPH. It offers efficient, indirect heating through a three-pass thermic-oil system, delivering clean, uniform bitumen without thermal degradation....
Read More
ACM-7: Safe, Reliable & High-Performance Bitumen Melting for Medium-Scale Projects
Key Features & Benefits
Engineered for Safe and Reliable Performance
Indirect Heating Technology
Three-pass thermic-oil circulation melts bitumen drums uniformly, eliminating direct flame contact and protecting material properties throughout each 6 TPH cycle.
Hydraulic Drum Loading System
Robust hydraulic lifters handle up to 40 drums (≈ 8 tons per batch) with single-operator control, reducing manual labour and ensuring smoother handling under heavy workloads.
Compact and Modular Design
A skid-mounted framework enables quick site installation and relocation. Ideal for contractors managing multiple sites or operating in semi-remote regions.
Smart Integration & Low Maintenance
Compatible with existing asphalt and binder plants; corrosion-resistant heating coils, auto-temperature regulation, and easy-access panels ensure reduced servicing downtime and steady performance.
Why Choose ACM-7
The ACM-7 is a mid-range bitumen decanter designed for contractors who need reliable 6 TPH performance and faster drum processing without compromising fuel economy.
Built for Higher Throughput
With 6 TPH output, ACM-7 is engineered for medium-volume melting where consistency and pace matter. It maintains high flow efficiency across all 40 drums without increasing fuel or labour demand.
Uniform Heating Assurance
The indirect thermic-oil system maintains even temperature profiles across the chamber. Each drum reaches the same melt rate, ensuring homogenous bitumen quality for paving or mix plants.
Fuel Economy and Flexibility
ACM-7 uses diesel, LDO, or gas with optimized burner controls and dense insulation to minimise heat loss, thereby cutting operational fuel costs by up to 20% over open-flame systems.
Enhanced Safety & Automation
Hydraulic loading, auto-level control, and pressure-relief valves keep operators safe while maintaining system integrity under continuous load. (Optional PLC panel automation).
Global Support & Custom Options
Atlas supports commissioning, training, and after-sales in 40+ countries. ACM-7 units can be customised with extended storage tanks or transfer modules to fit diverse project scales.
Components Breakdown
The ACM Series of Bitumen Decanting Machine offers quick startup and continuous flow of molten bitumen.
- • Automatic diesel/LDO burner with thermostatic controls maintains oil temperature of 200–240 °C.
- • Multi-pass coils deliver efficient heat transfer and fast melt response.
Smart Design, Seamless Operation
Browse our range of products designed for exceptional performance and reliability.
CONNECT WITH US
Ready to Build? Let’s Talk!
Whether you’re expanding existing facilities or starting new projects, we’re here to help you achieve optimal results. Complete the form, and our engineers will provide a customized solution within 24 hours.
Frequently asked questions.
1. What differentiates ACM-7 from ACM-4?
+ACM-7 offers 50% higher throughput (6 TPH vs 4 TPH) and a larger batch capacity of 40 drums, making it ideal for medium-scale road construction and plant operations.
