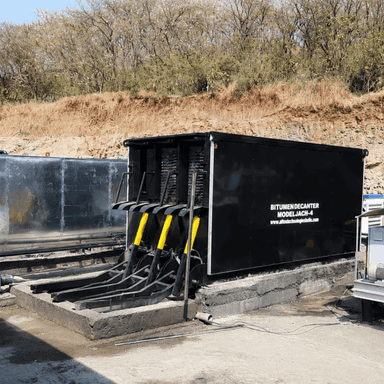

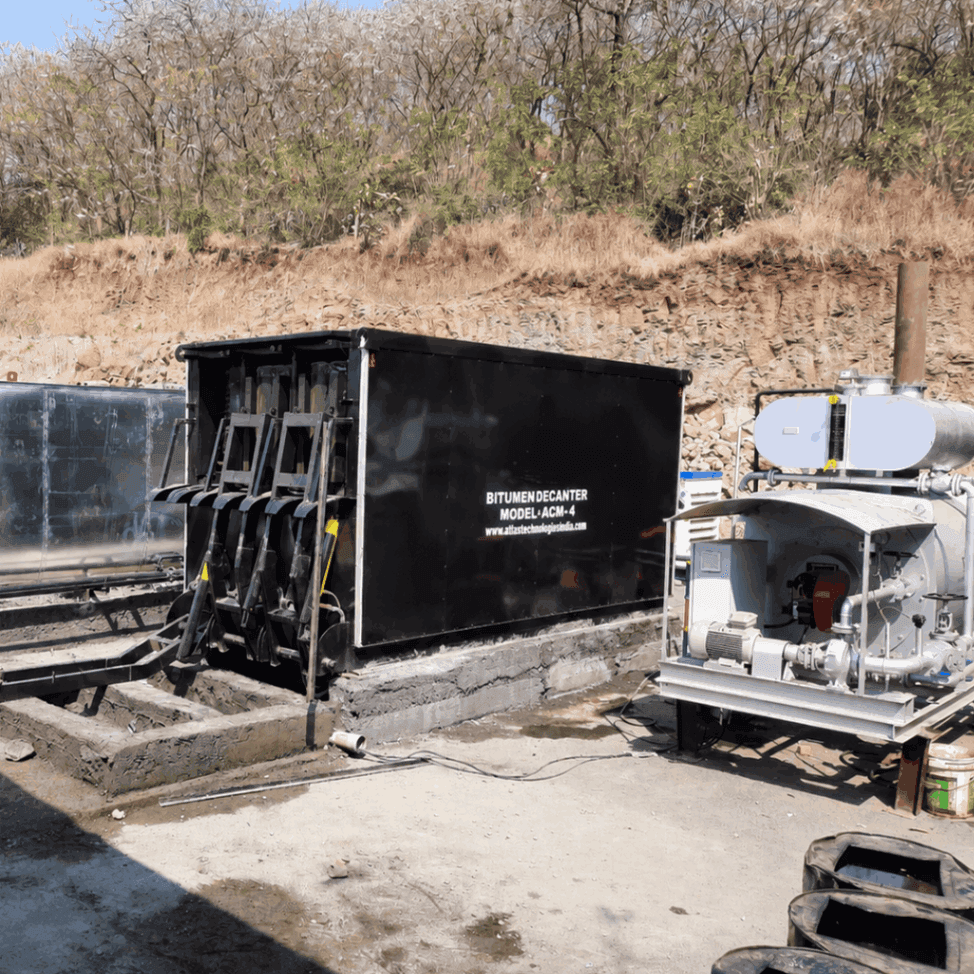

ACM-4 Bitumen Decanter
4 TPH | 27 Barrels | 9–10 Tons
The Atlas ACM-4 Bitumen Decanter is the most compact model in our drum-melting series, designed for 27 barrels per batch and an output of 4 TPH. It offers efficient, indirect heating through a three-pass thermic-oil system, ensuring high-quality liquid bitumen without degradation....
Read More
ACM-4: Safe, Compact & Efficient Bitumen Decanting for Small-Scale Projects
Key Features & Benefits
Engineered for Safe and Reliable Performance
Indirect Heating Technology
Three-pass thermic-oil circulation melts bitumen drums uniformly, eliminating direct-flame contact and preventing material ageing or oxidation.

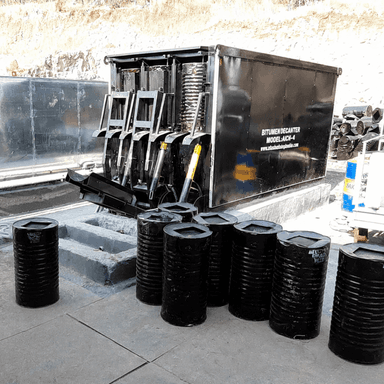

Hydraulic Drum Loading System
Powered lifters allow single-operator loading/unloading of 27 drums per batch, ensuring smooth operation and improved safety.
Compact, Site-Ready Design
Skid-mounted structure requires minimal foundation and enables easy relocation between project sites.
Smart Integration & Low Maintenance
Compatible with existing asphalt or binder plants; corrosion-resistant coils and thermic-oil system ensure longer lifecycle and lower service frequency.
Why Choose ACM-4
The ACM-4 is the most compact decanter, engineered for contractors who need reliable 4 TPH melting without heavy foundations or complex installation.
Built for Smaller Batches
ACM-4 is optimized for compact operations where frequent drum melting is required but space and logistics are limited. It provides continuous 4 TPH output without compromising on heating precision or safety.
Consistent Heating Performance
The thermic-oil system maintains steady heat across all 27 drums. By avoiding direct flame, ACM-4 preserves bitumen viscosity and ensures consistent quality across every batch.
Fuel-Efficient Operation
Insulated panels reduce heat loss, cutting fuel consumption by up to 20%. Diesel, LDO, or gas options give operators flexibility to match local fuel availability.
Safe & User-Friendly Handling
Hydraulic loading minimizes manual lifting and drum rotation hazards. Auto-level control and pressure-relief valves provide added protection for operators and equipment.
Global Customization
Units can be customized with optional transfer pumps, extended tanks, or automatic controls; installation, training, and spare-part support available in 40+ countries.
Components Breakdown
The ACM Series of Bitumen Decanting Machine offers quick startup and continuous flow of molten bitumen.
- • Automatic diesel/LDO burner with thermostatic controls delivers stable oil temperature between 200–240 °C.
- • Multi-pass coils maximize heat transfer efficiency.
Smart Design, Seamless Operation
Browse our range of products designed for exceptional performance and reliability.
CONNECT WITH US
Ready to Build? Let’s Talk!
Whether you’re expanding existing facilities or starting new projects, we’re here to help you achieve optimal results. Complete the form, and our engineers will provide a customized solution within 24 hours.
Frequently asked questions.
1. What makes ACM-4 safer than conventional drum-melting methods?
+ACM-4 Bitumen Decanter uses indirect thermic oil heating instead of direct flame, preventing bitumen degradation and eliminating exposure to open fire.
