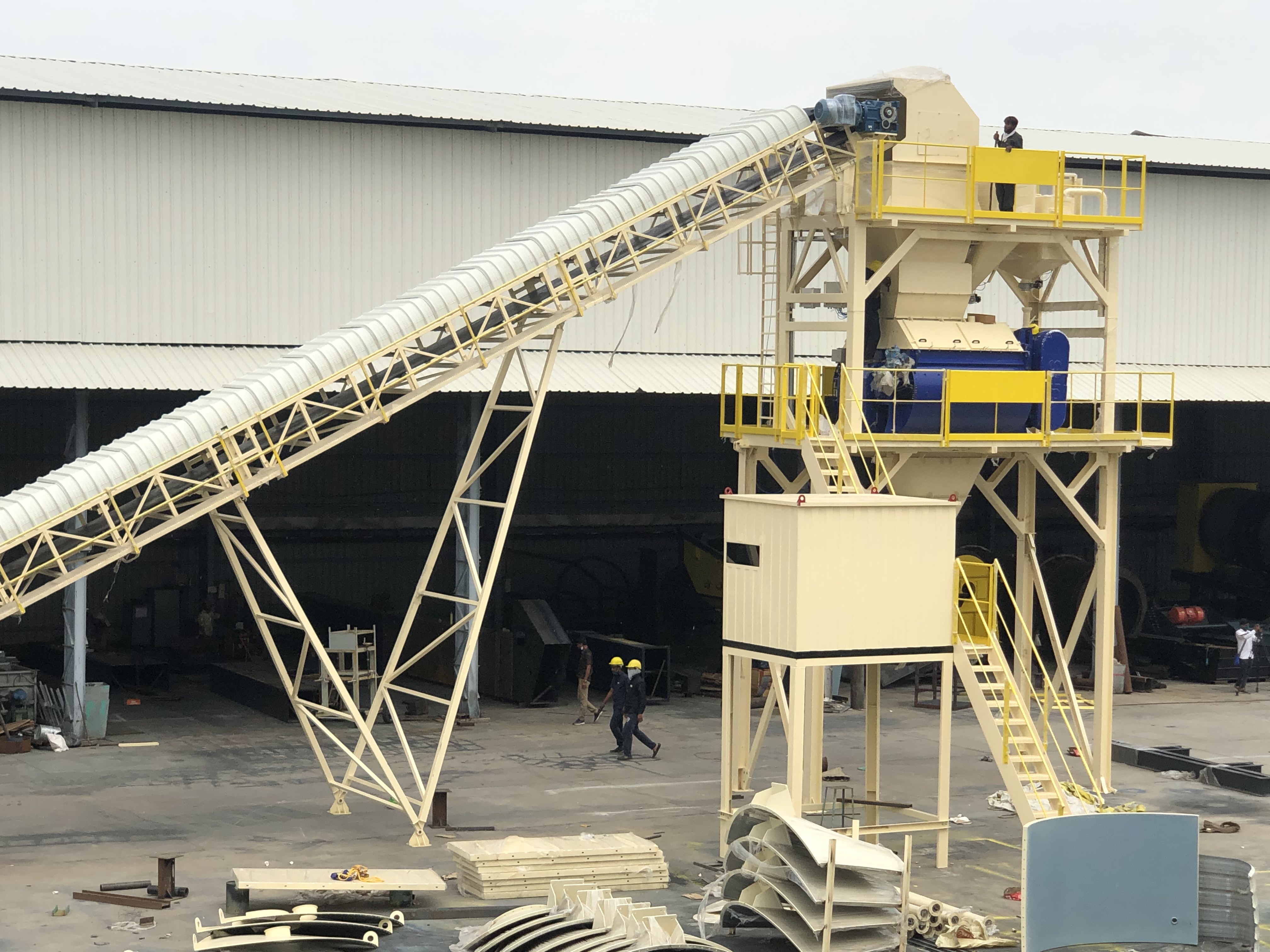

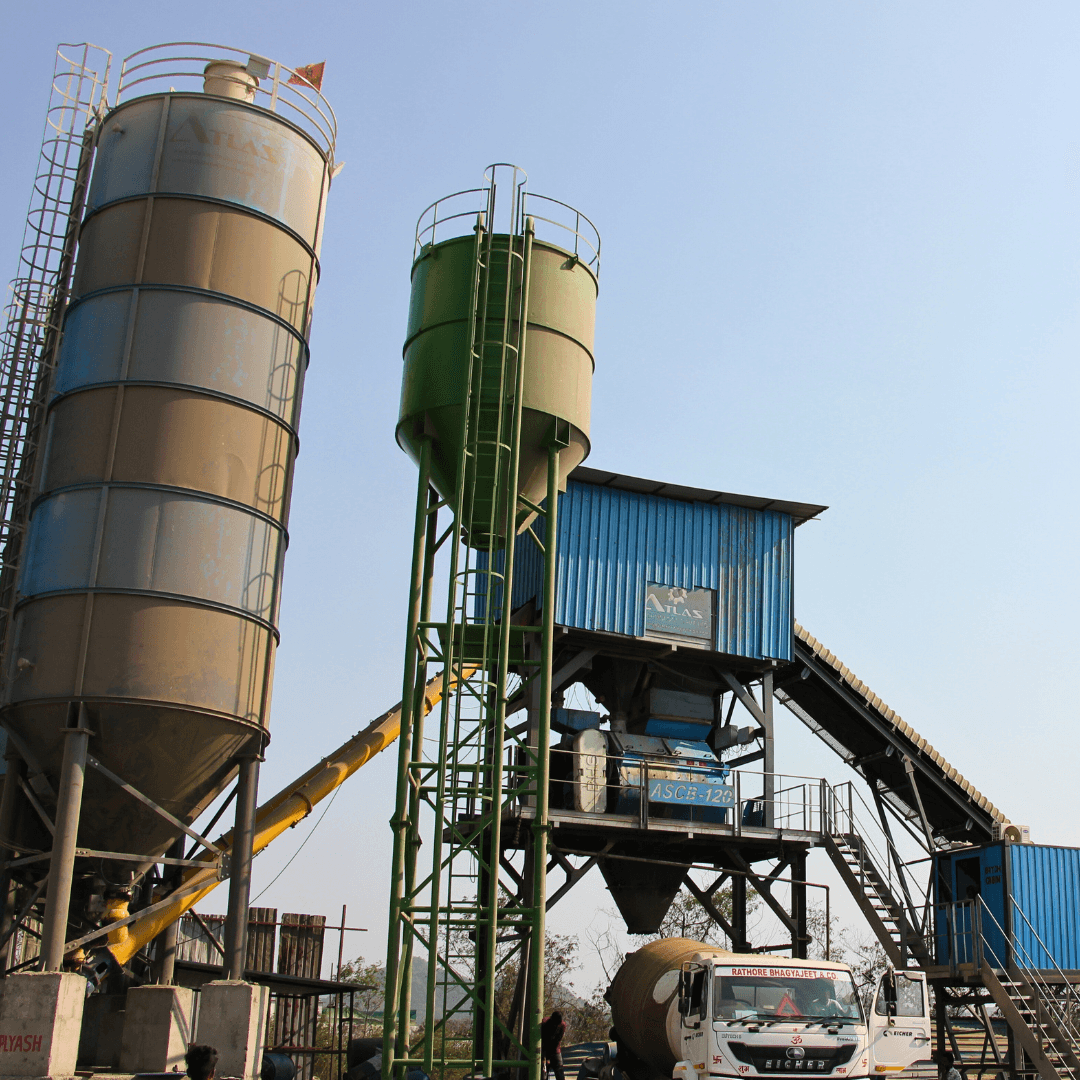

ATMIX PRO 120 T Stationary Concrete Batching Plant
Mixer: 3000 Liters | Twin Shaft (3.0 m³/batch) | Control: PLC + HMI (SCADA Optional)
The Atlas ATMIX PRO 120 T Stationary Concrete Batching Plant is engineered for high-volume concrete production with exceptional precision and efficiency. Delivering 120 cubic meters per hour, it is built to perform in large-scale commercial, industrial, and infrastructure projects demanding continuous, high-strength concrete output....
Read More
High Capacity
Heavy-Duty Design
Intelligent Automation
ATMIX PRO 120 T: High-Volume Precision, Engineered for Performance
Key Features & Benefits
Designed for Accuracy, Durability, and Continuous Operation
Reliable 120 m³/hr Output
Ideal for high-demand RMC plants and infrastructure works needing continuous, precise concrete supply.
Twin-Shaft Mixer (4500/3000 L)
Produces 3.0 m³ per batch with Ni-Hard liners, 600 HB blades, and hydraulic discharge for consistent, dense mixing.
PLC + HMI Control with SCADA
Siemens S7-1200 PLC with data logging, USB connectivity, and Wi-Fi-enabled remote operation for total batching control.
Four-Bin Aggregate Feeder
Four 25 m³ bins with pneumatic discharge gates and load-cell monitoring for uniform material feeding.
Why Choose ATMIX PRO 120 T
Built for dependable, low-maintenance operation, the ATMIX PRO 120 T ensures consistent batching accuracy, reduced downtime, and long-term structural reliability.
High-Efficiency Mixing Cycle
3.0 m³ batches mixed in ~90 seconds with automatic grease lubrication and manual discharge backup.
Quick Setup, Easy Operation
Pre-wired system with insulated, air-conditioned control cabin for comfortable and efficient plant management.
Rugged and Long-Lasting
Heavy-gauge steel structure, PU finish, and ISI-standard motors ensure strength and corrosion protection in all environments.
Built for Safety and Maintainability
Equipped with emergency stops, guarded drives, and accessible platforms for safe and simple maintenance.
Accurate Weighing & Dosing
Load-cell-based cement, water, and additive hoppers ensure precise proportioning and consistent batch quality.
Components Breakdown
Every module of the ATMIX PRO 120 T is engineered for high throughput, precise weighing, and durability under continuous production.
- • Four bins (25 m³ each) with pneumatically operated gates.
- • Mild steel (5 mm) construction for longevity.
- • One vibrator for efficient discharge.
Smart Design, Seamless Operation
Browse our range of products designed for exceptional performance and reliability.
CONNECT WITH US
Ready to Build? Let’s Talk!
Whether you’re expanding existing facilities or starting new projects, we’re here to help you achieve optimal results. Complete the form, and our engineers will provide a customized solution within 24 hours.
Frequently asked questions.
1. What type of projects is ATMIX PRO 120 T ideal for?
+Perfect for RMC plants, metro and bridge projects, industrial sites, and large-scale infrastructure requiring continuous concrete output.
