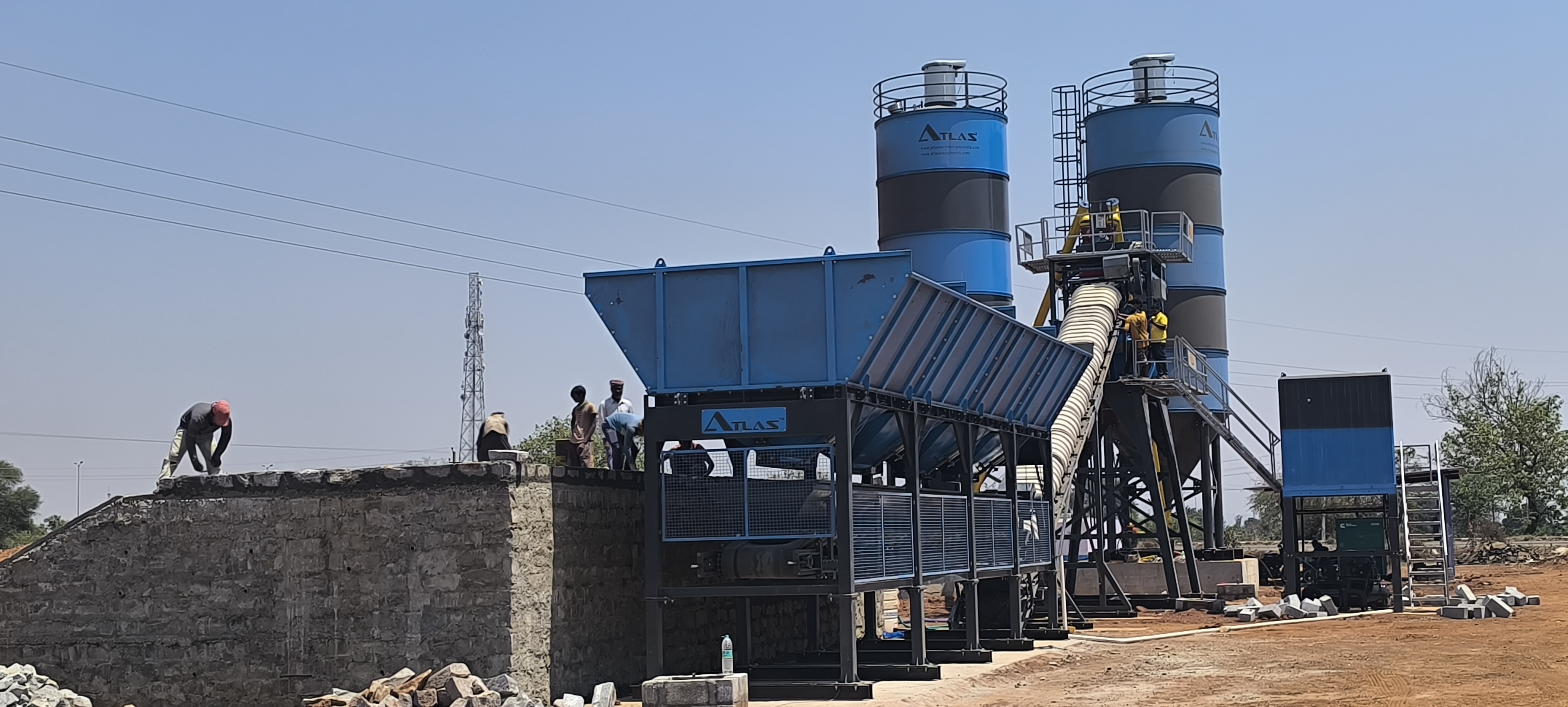

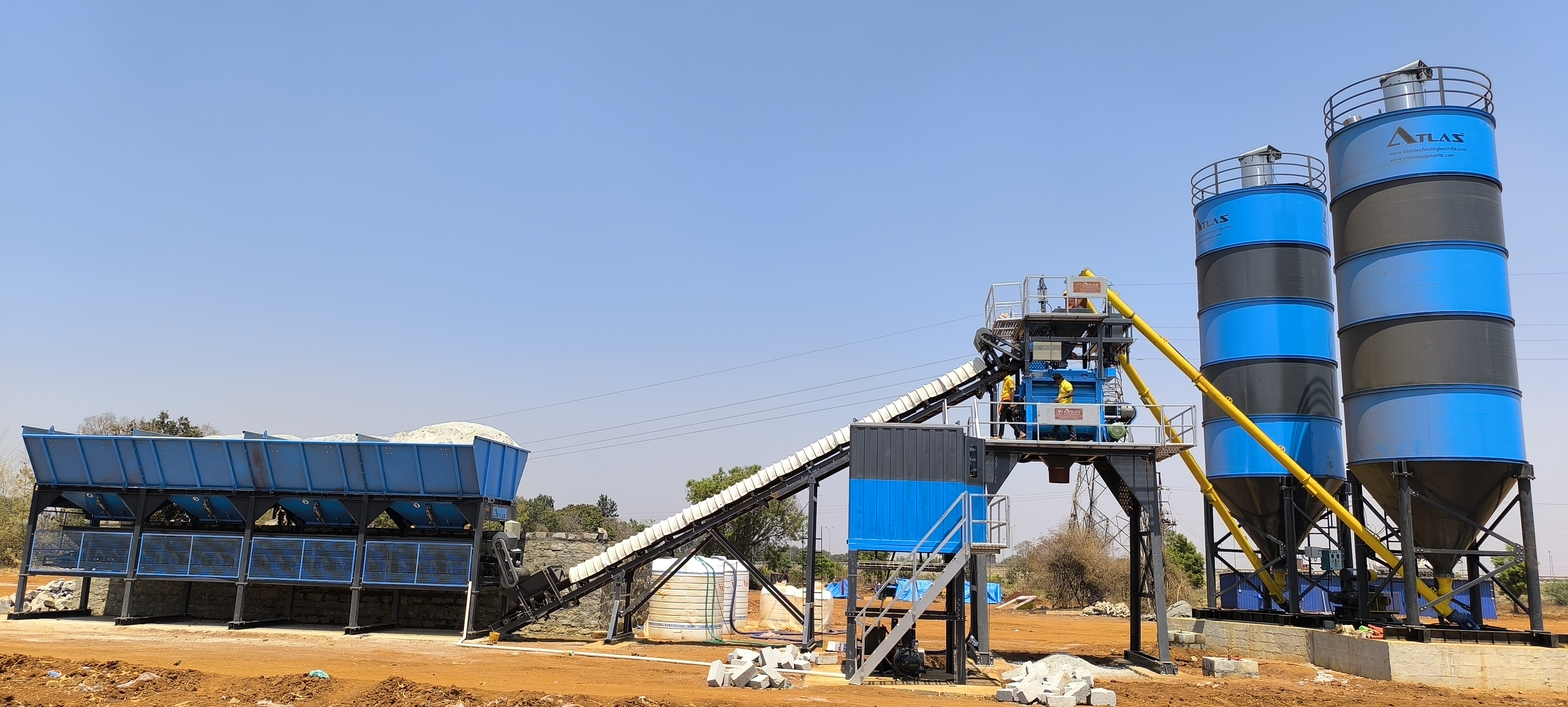

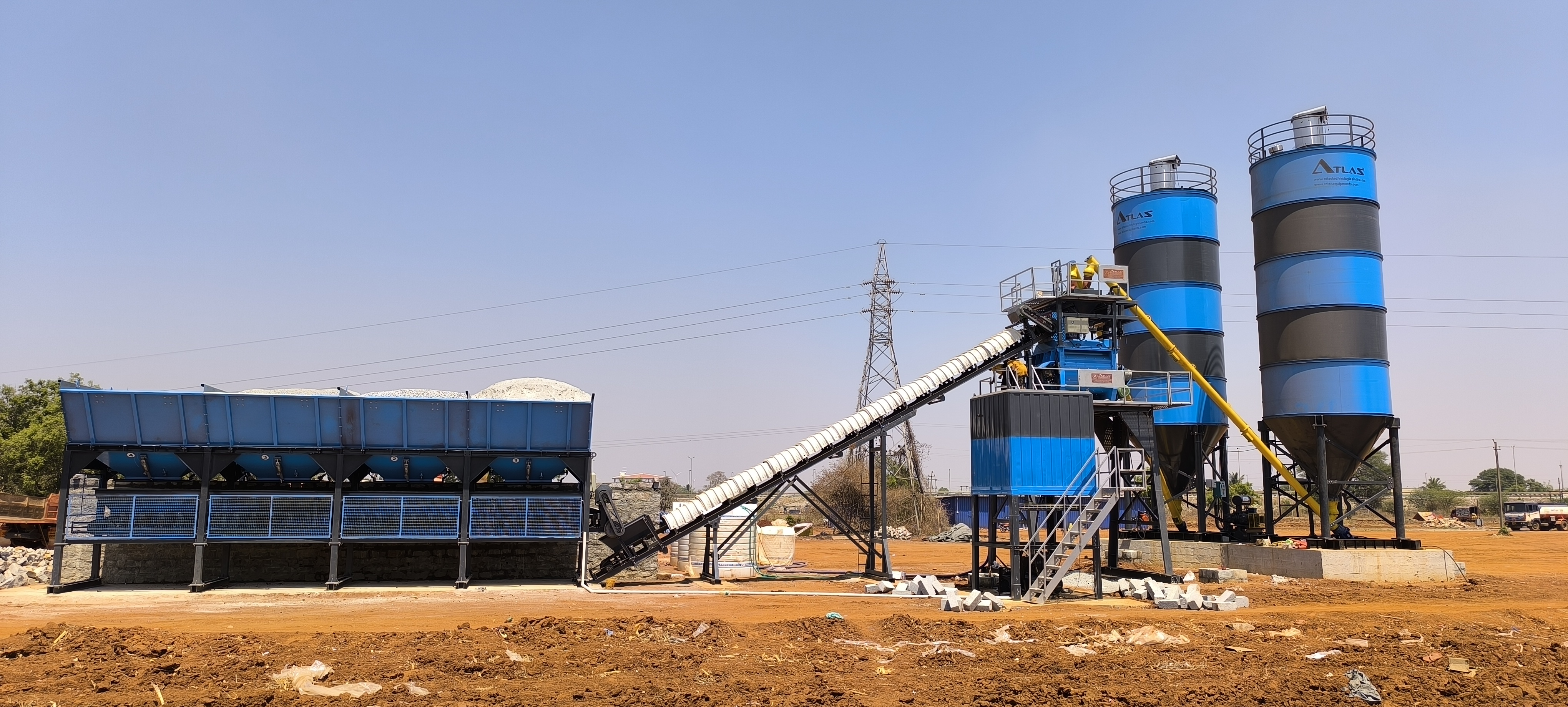

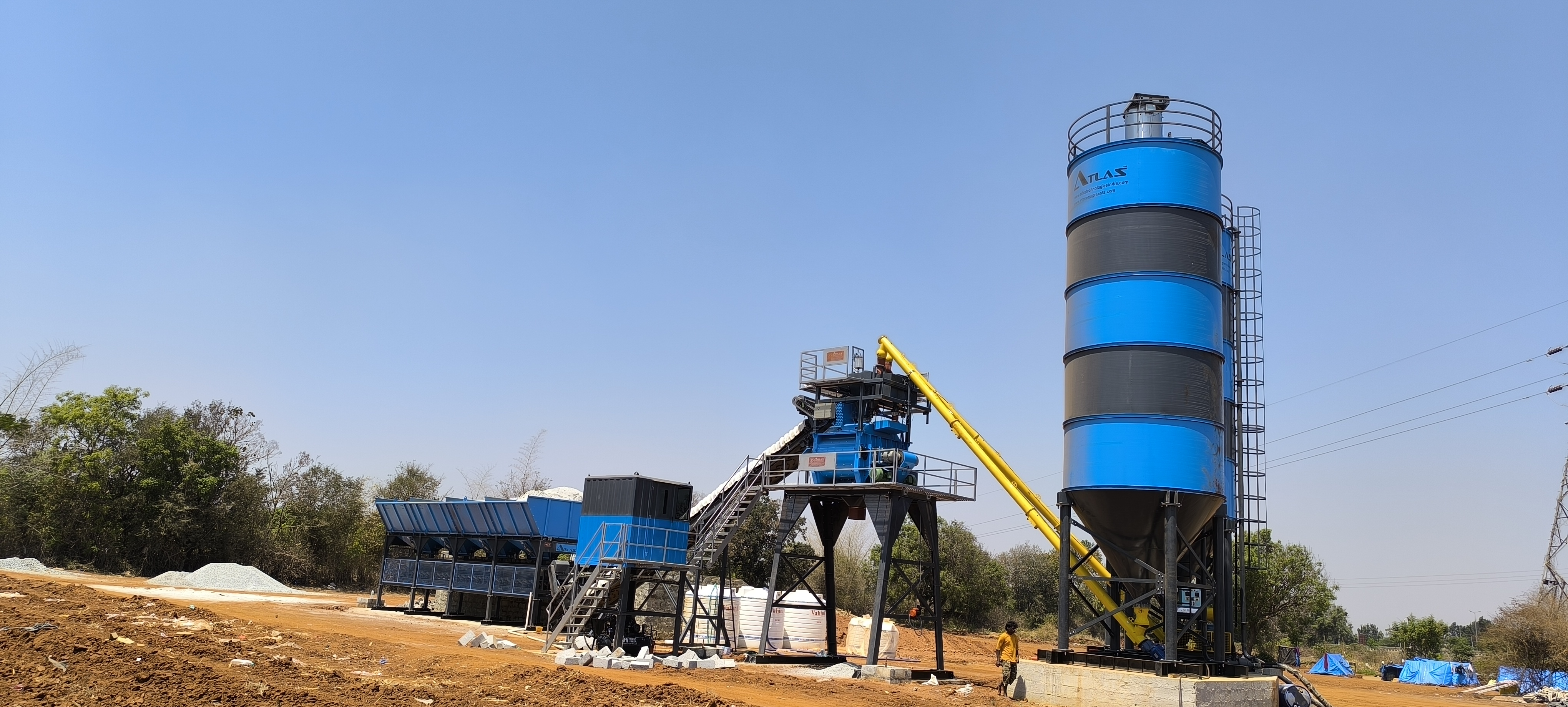

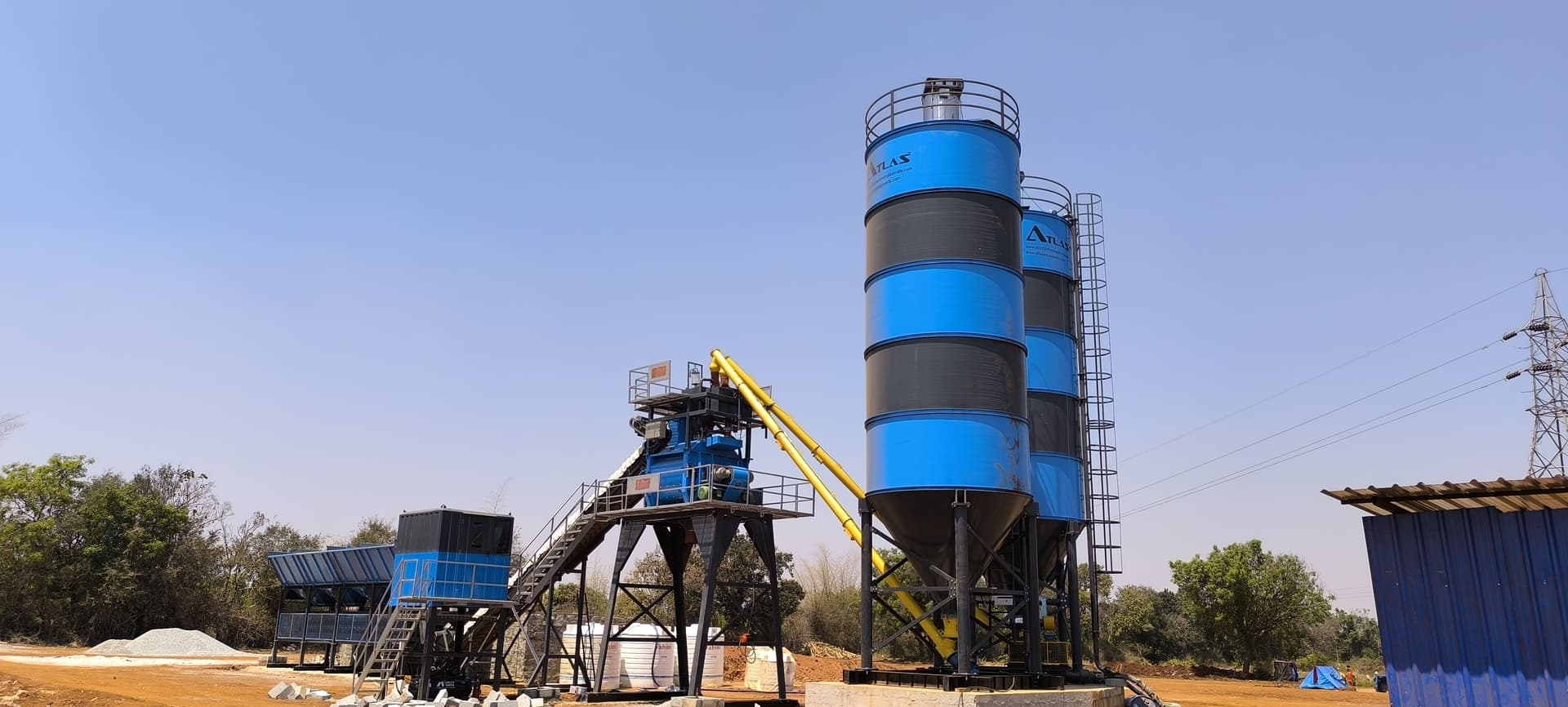

ATMIX PRO 75 T Stationary Concrete Batching Plant
Mixer: 1200 Liters | Twin Shaft (1.0 m³/batch) | Control: PLC + HMI (SCADA Optional)
The Atlas ATMIX PRO 75 T Stationary Concrete Batching Plant delivers robust performance and precise concrete production for mid-to-large construction projects. With a rated capacity of 75 cubic meters per hour, this plant combines high-efficiency mixing, accurate weighing, and automated operation for consistent results under continuous load conditions....
Read More
High Accuracy
Rugged Design
Continuous Productivity
ATMIX PRO 75 T: Designed for Heavy-Duty Productivity
Key Features & Benefits
Tailored for Capacity, Accuracy, and Long-Term Durability
Reliable 75 m³/hr Output
Delivers continuous production for RMC plants and mid-size infrastructure projects with high accuracy and uniformity.
Twin-Shaft Mixer (1875/1250 L)
Produces 1.2 m³ per batch using wear-resistant Ni-Hard liners and cast blades for exceptional durability and mix quality.
PLC + HMI Control with SCADA Option
Fully automated batching with remote access, recipe storage, and real-time monitoring through Siemens/B&R/Delta systems.
Four-Bin Feeder Design
Four 15 m³ bins with pneumatic gates and load-cell proportioning ensure steady, uninterrupted aggregate flow.
Why Choose ATMIX PRO 75 T
Built for dependable, low-maintenance operation, the ATMIX PRO 75 T ensures consistent batching accuracy, reduced downtime, and long-term structural reliability
Reliable Mixing Cycle
1.25 m³ batches mixed in ~60 seconds with automatic grease lubrication and emergency manual discharge.
Quick Installation & Operator Comfort
Pre-wired assemblies and an insulated control cabin for fast setup and efficient management.
Built to Last
Heavy-duty rolled steel chassis, PU paint finish, and ISI-grade motors ensure strength and corrosion resistance.
Safe and Service-Friendly Design
Guarded drives, emergency stops, and elevated access platforms make operation and maintenance simple and safe.
Accurate Water & Additive Control
Load-cell-mounted hoppers maintain consistent water-cement ratios for uniform strength and workability.
Components Breakdown
The ATMIX PRO 75 T integrates proven Atlas engineering with modular components for reliable, high-precision concrete production.
- • Four bins (15 m³ each) with pneumatic discharge gates.
- • Heavy-duty 5 mm mild steel construction.
- • Single vibrator for smooth aggregate discharge.
Smart Design, Seamless Operation
Browse our range of products designed for exceptional performance and reliability.
CONNECT WITH US
Ready to Build? Let’s Talk!
Whether you’re expanding existing facilities or starting new projects, we’re here to help you achieve optimal results. Complete the form, and our engineers will provide a customized solution within 24 hours.
Frequently asked questions.
1. What types of projects is the ATMIX PRO 75 T ideal for?
+Perfect for RMC plants, multi-storey construction, industrial complexes, and infrastructure projects requiring continuous, high-capacity concrete supply.
