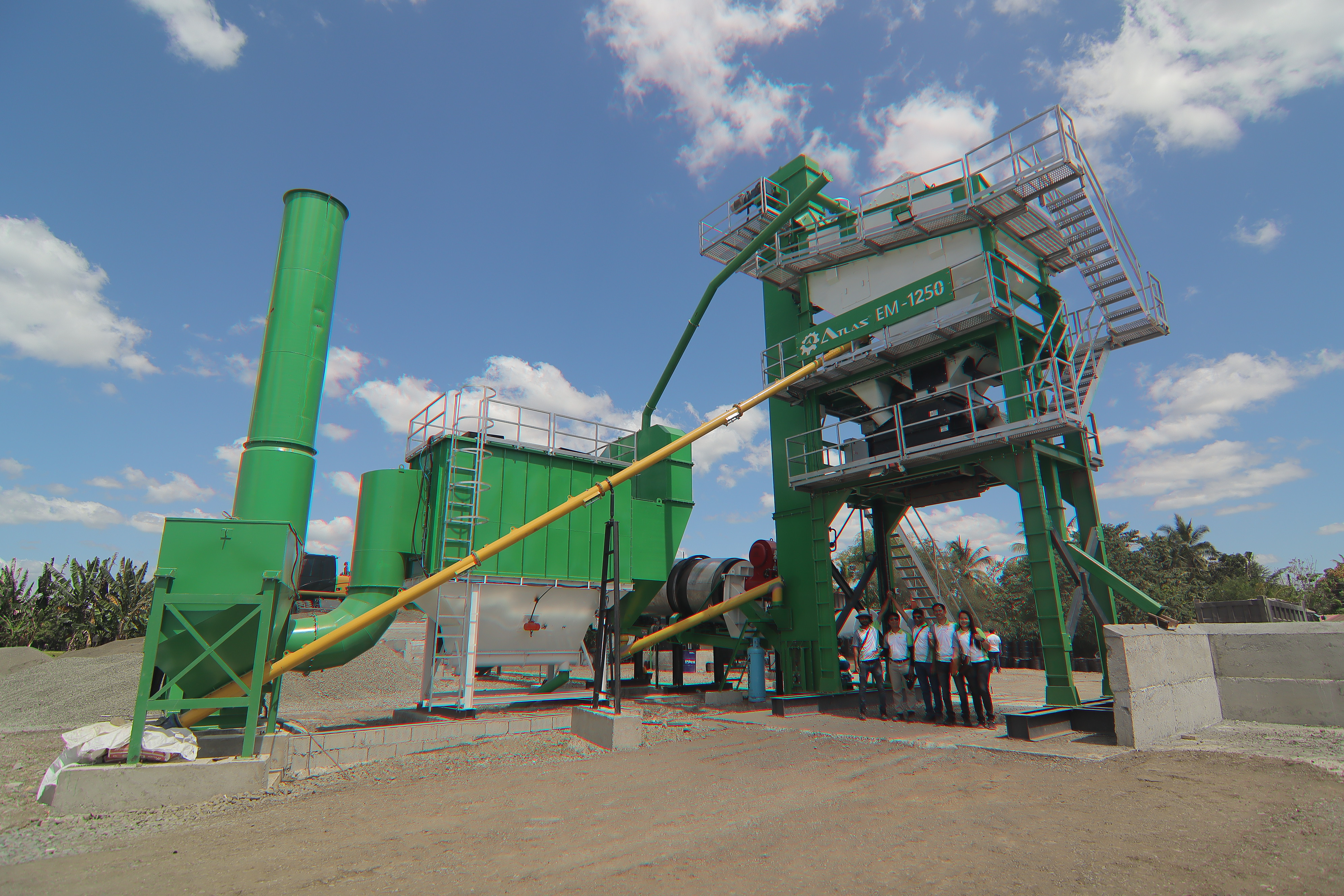

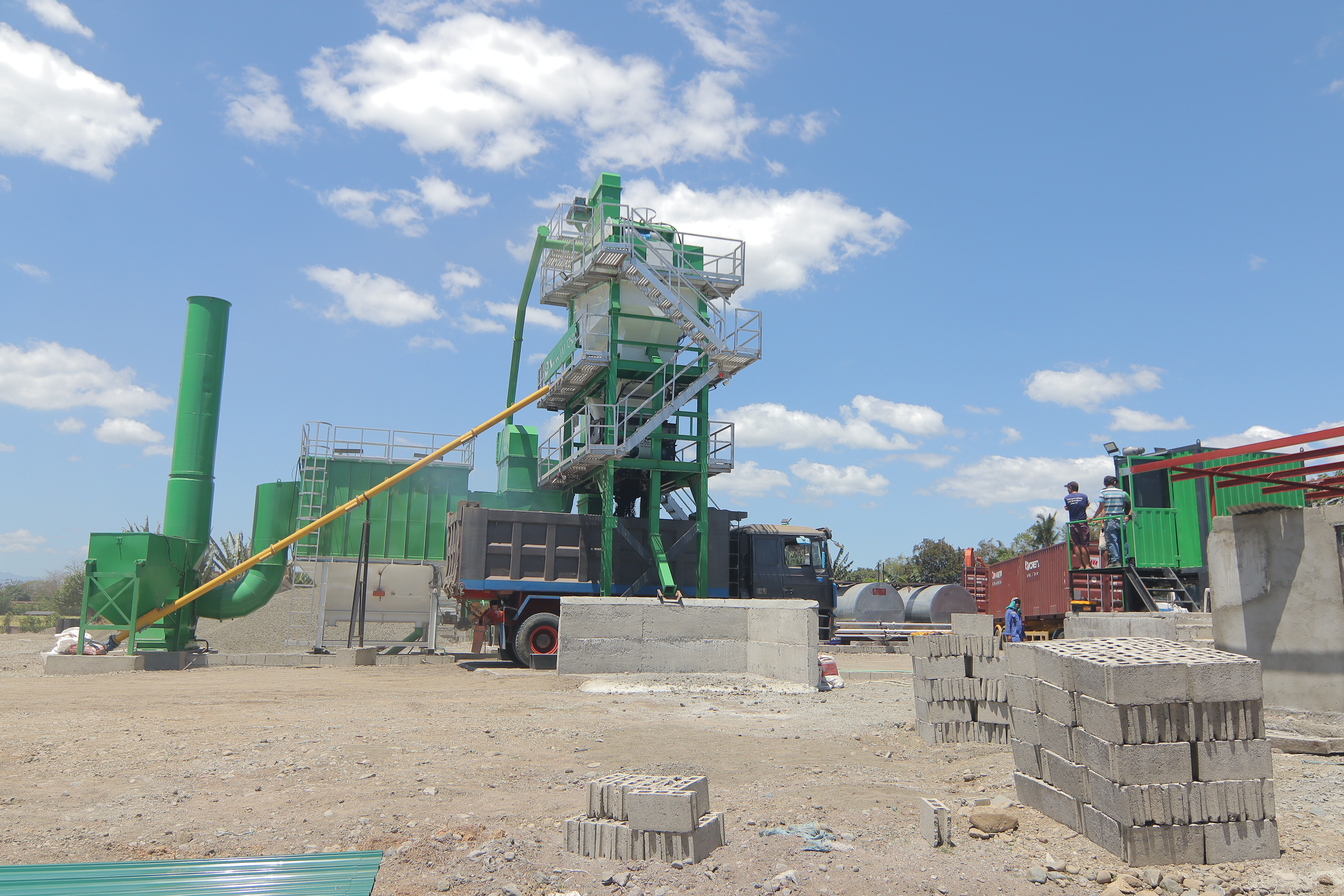

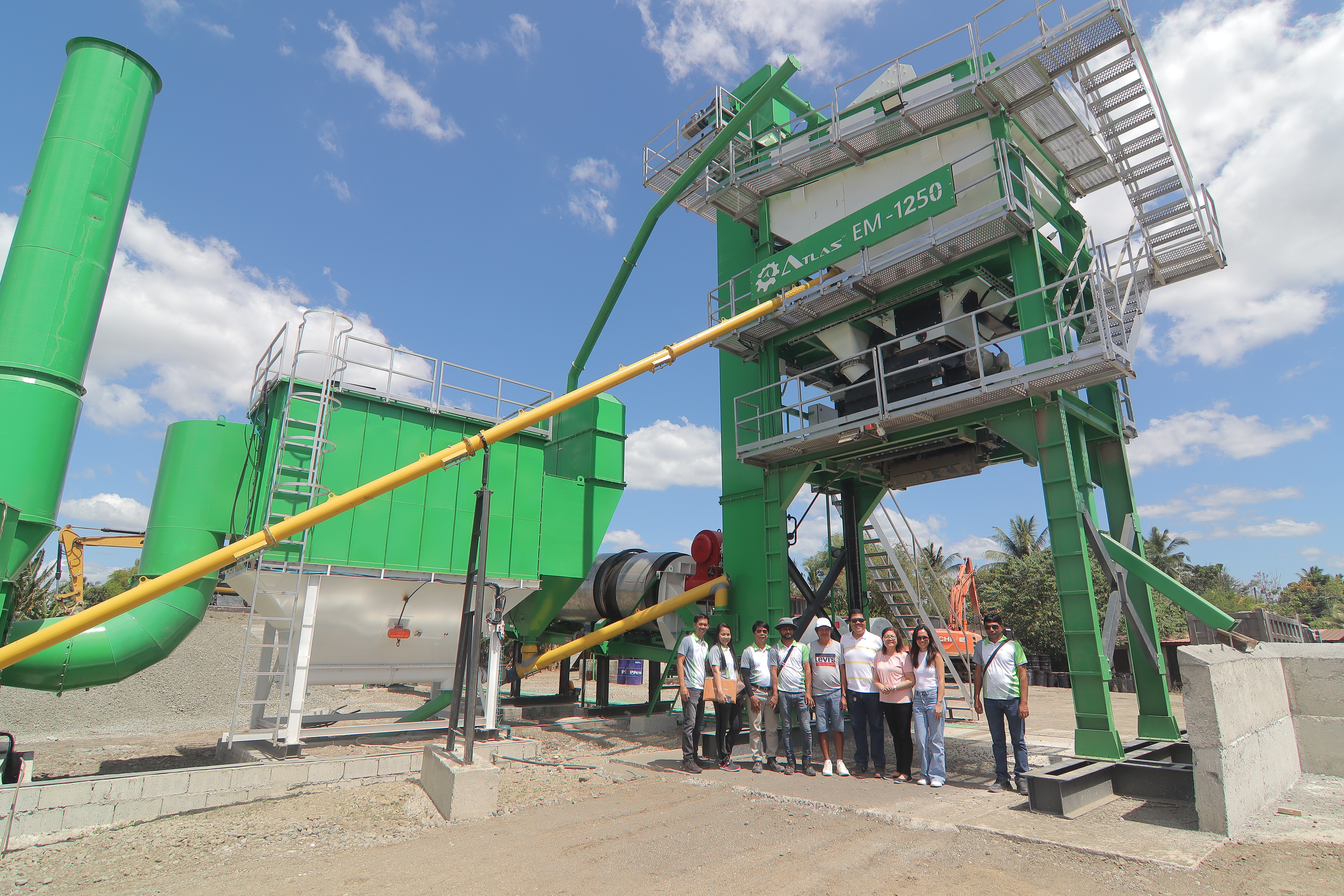

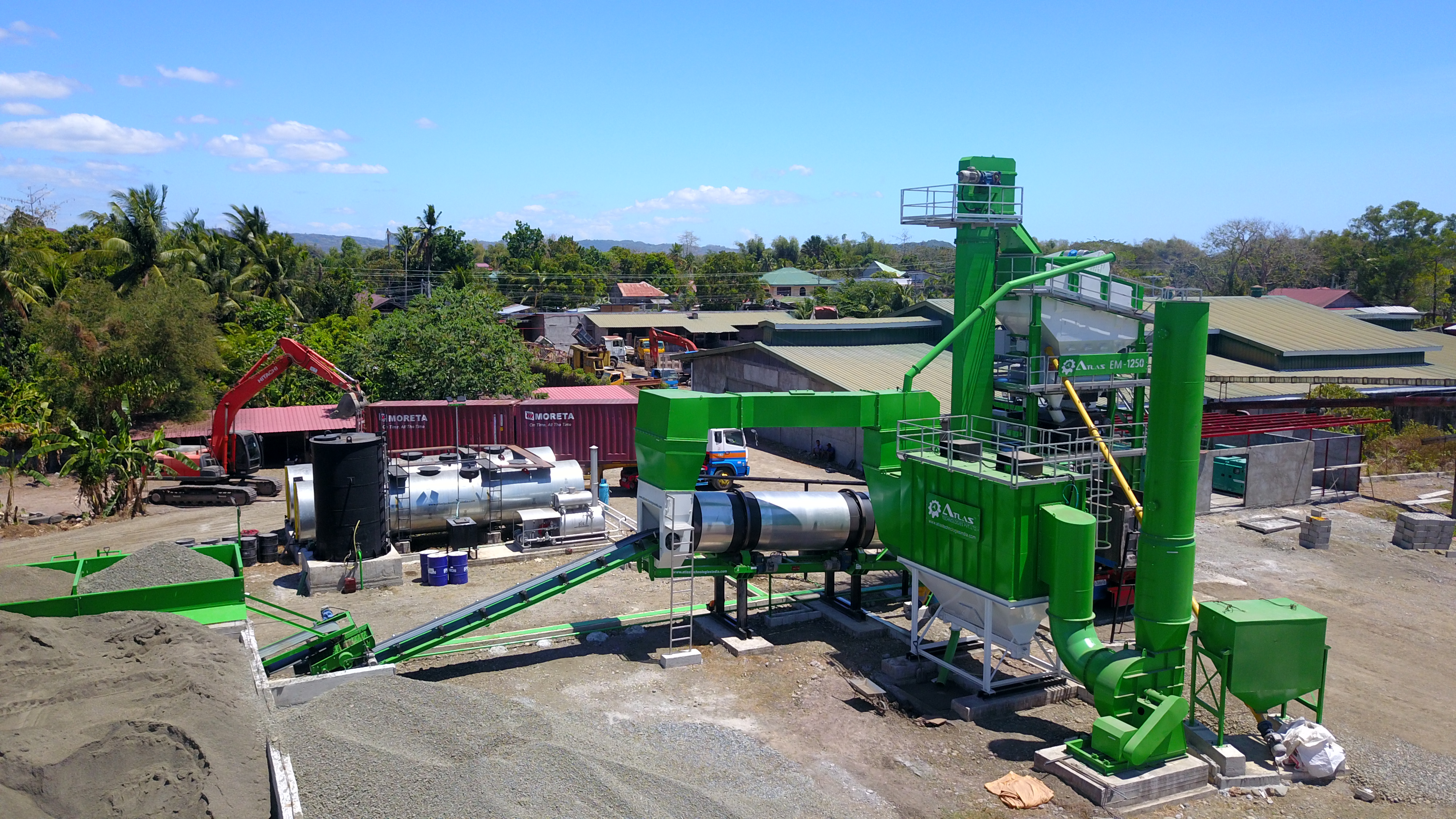

ABP 100 Stationary Asphalt Batch Plant
100 TPH Production | 1250kg Twin Shaft Mixer | RAP & SMA Ready
The Atlas ABP 100 is a high-performance stationary asphalt batching plant engineered for medium-to-large-scale projects. With its 100 tons per hour output, robust twin-shaft mixer, and advanced automation, it delivers a consistent quality mix for highways, airports, and infrastructure projects....
Read More
See the ABP (100) Stationary Asphalt Batch Plant in Action
Key Features & Benefits
Discover the advanced engineering behind our ABP Series (100) Stationary Asphalt Batch Plants
High-Capacity Production
Delivers up to 100 TPH output with 1,250 kg batch size and 80 cycles per hour, ensuring continuous supply for medium-to-large scale road projects.
Precision Mixing
Twin-shaft pugmill mixer with replaceable wear liners provides uniform mixing, maintaining ±5°C temperature accuracy across batches.
Energy-Efficient Drying
Counterflow dryer drum with optimized flights and a 7 MW modulating burner ensures maximum heating efficiency and consistent aggregate quality.
Smart Automation
PLC-based control system with real-time monitoring, auto free-fall compensation, and storage of 50+ mix designs for complete process flexibility.
Sustainable Operation
Supports use of RAP with optional cold and hot recycling systems (up to 40% cold RAP and 60% hot RAP with HRC system).
Designed for Efficiency
Delivering reliable asphalt production solutions to over 50 countries, the ABP (100) is built to exceed expectations.
Reduced Transport Costs
Modular container-friendly design simplifies transport and installation.
Accurate Weighing
Dedicated load cells for aggregates, bitumen, and filler ensure high-precision batching.
Reliable Operation
Replaceable wear parts and heavy-duty design minimize downtime.
RAP Integration
Cold and hot recycling options support sustainable asphalt production.
Precision-Engineered Components
Each component of the Stationary Asphalt Batch Plants (ABP) is designed for maximum efficiency and reliability
- 4 bins, 7 m³ each (28 m³ total)
- Frequency-controlled drives for accurate feeding
Smart Design, Seamless Operation
Browse our range of products designed for exceptional performance and reliability.
CONNECT WITH US
Ready to Build? Let’s Talk!
Whether you’re expanding existing facilities or starting new projects, we’re here to help you achieve optimal results. Complete the form, and our engineers will provide a customized solution within 24 hours.
Frequently asked questions.
What is the production capacity of the ABP 100?
+The ABP 100 produces up to 100 TPH with a 1,250 kg batch size and 80 mixing cycles per hour, assuming 3% moisture and 150°C output temperature.
