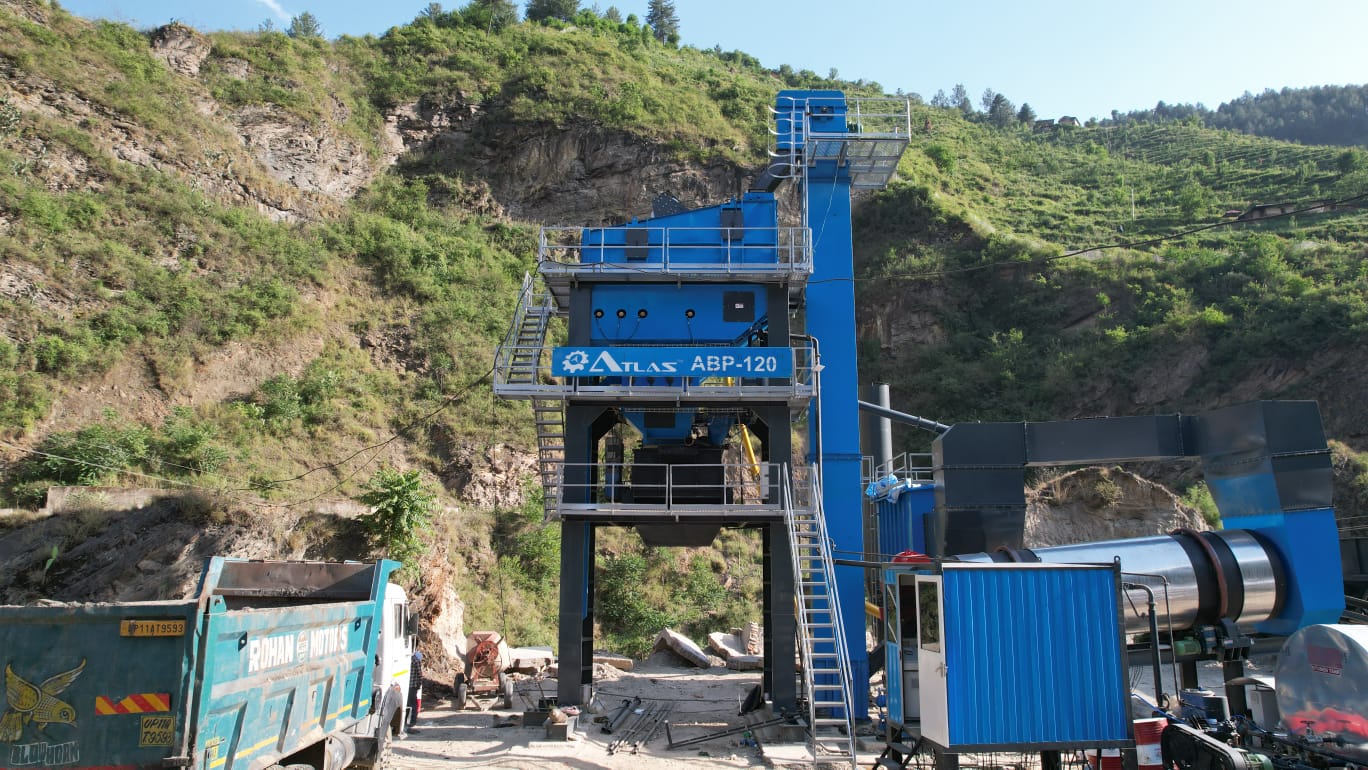

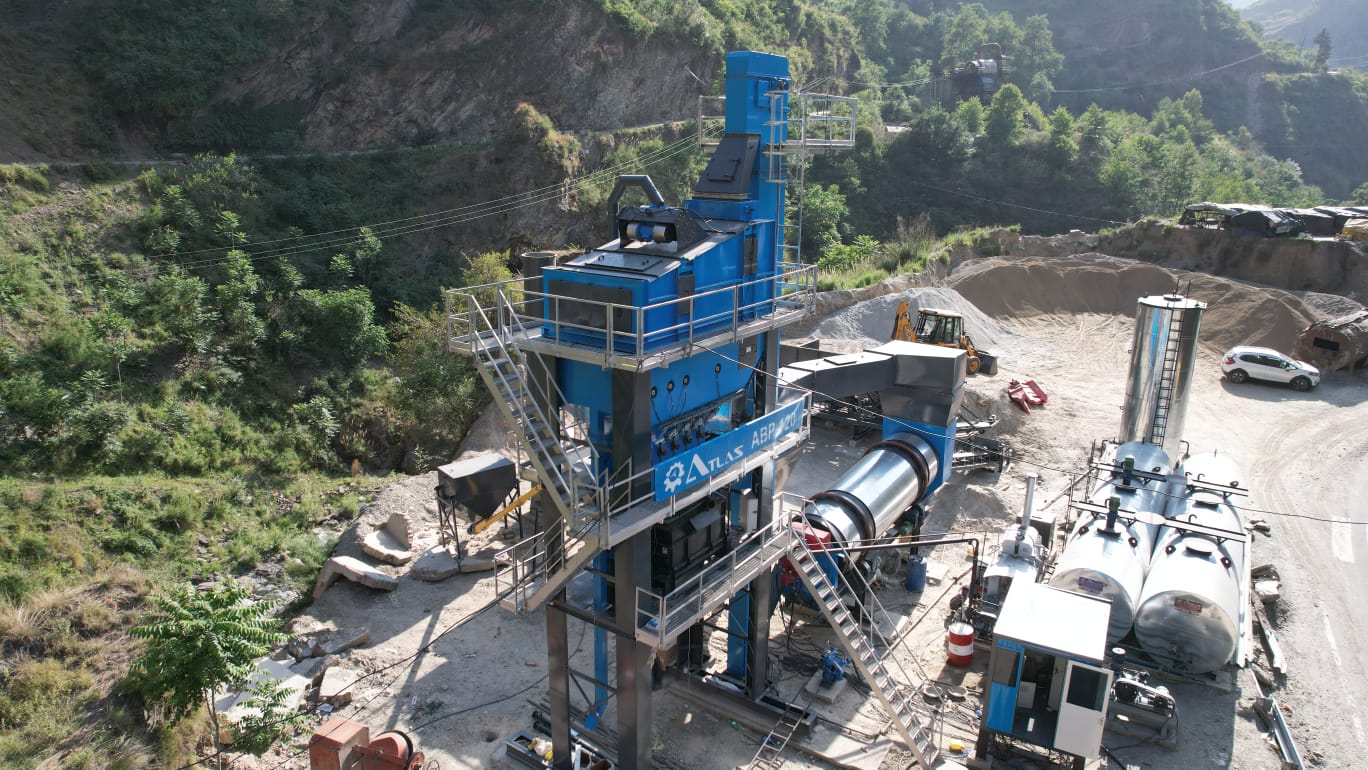

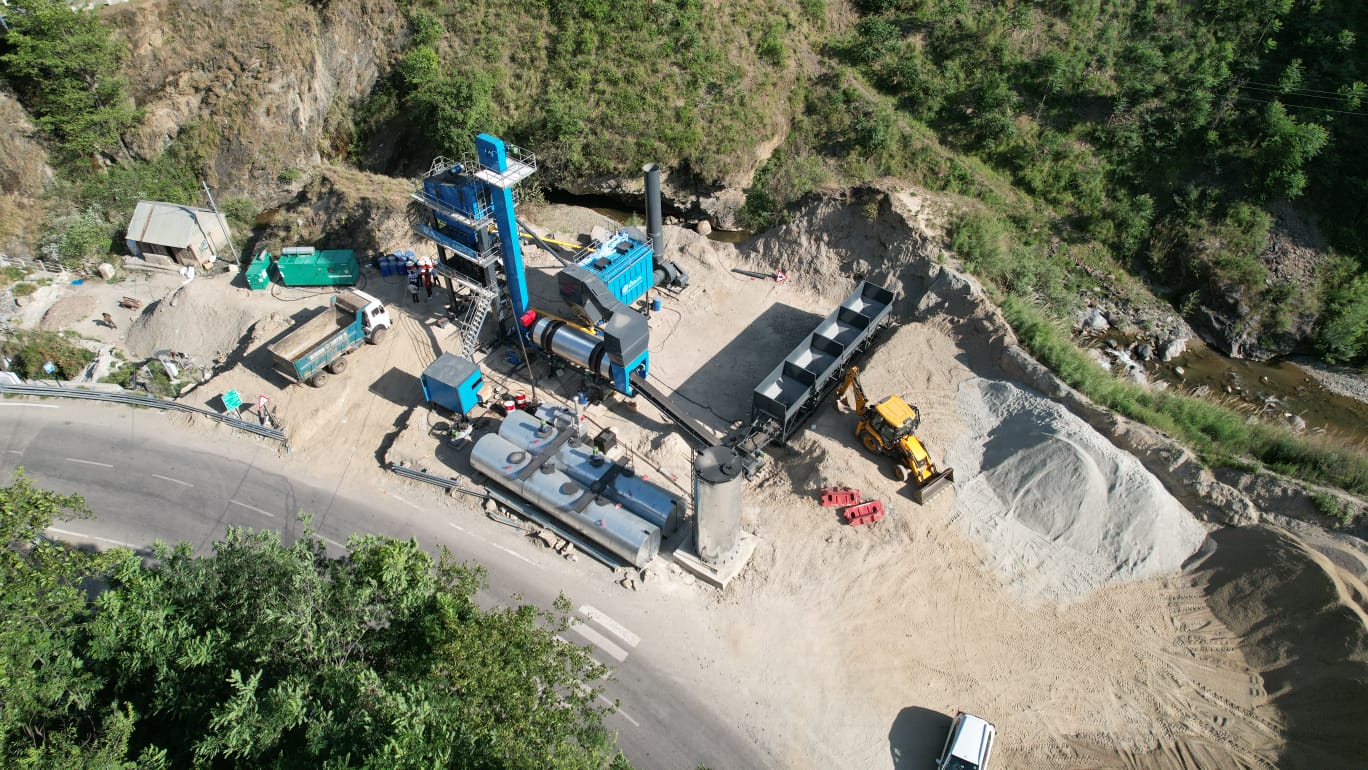

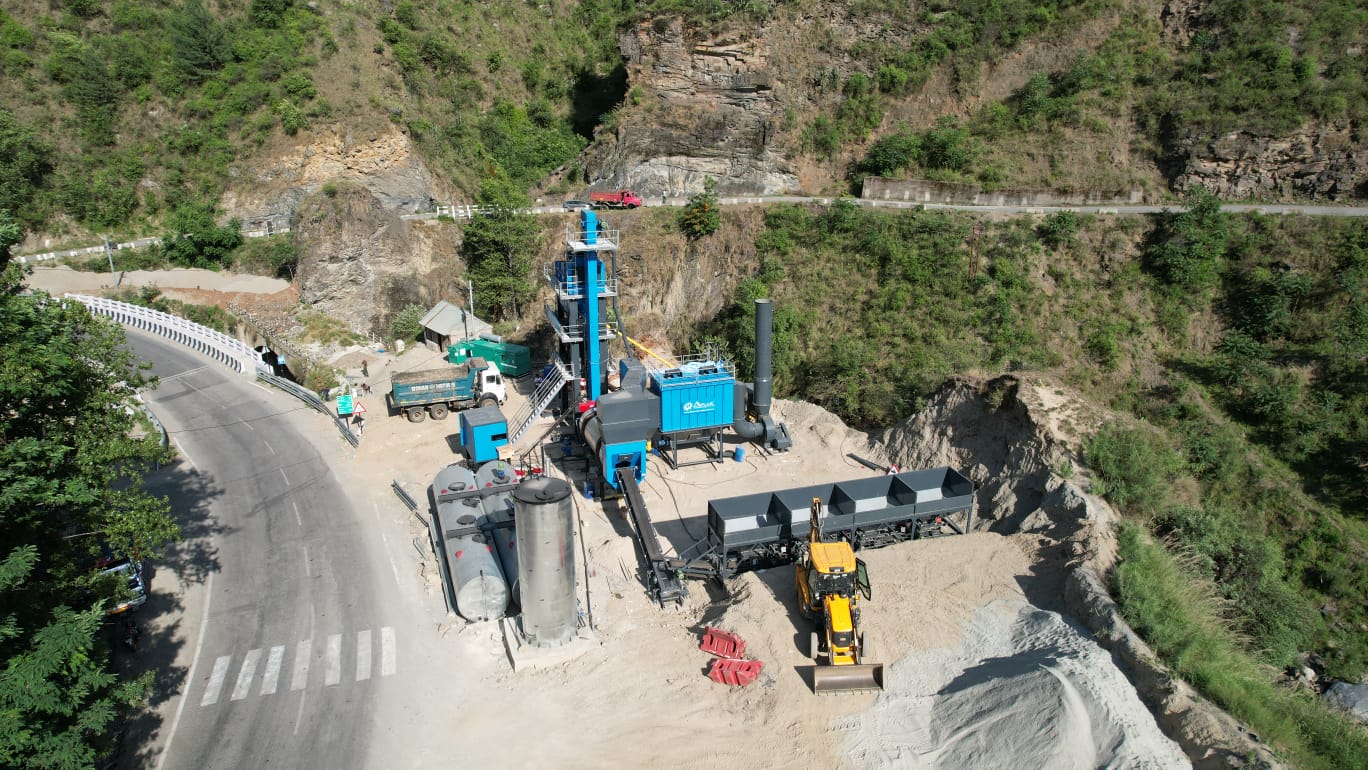

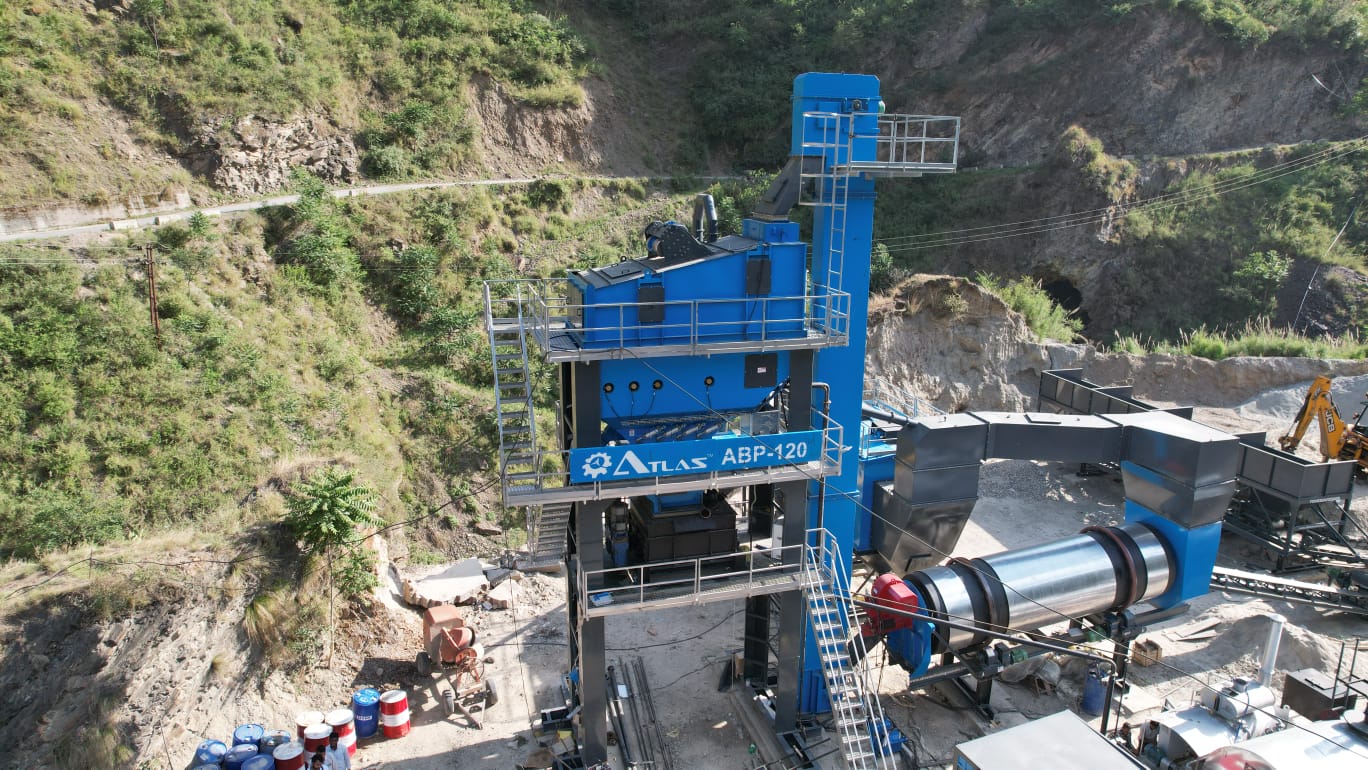

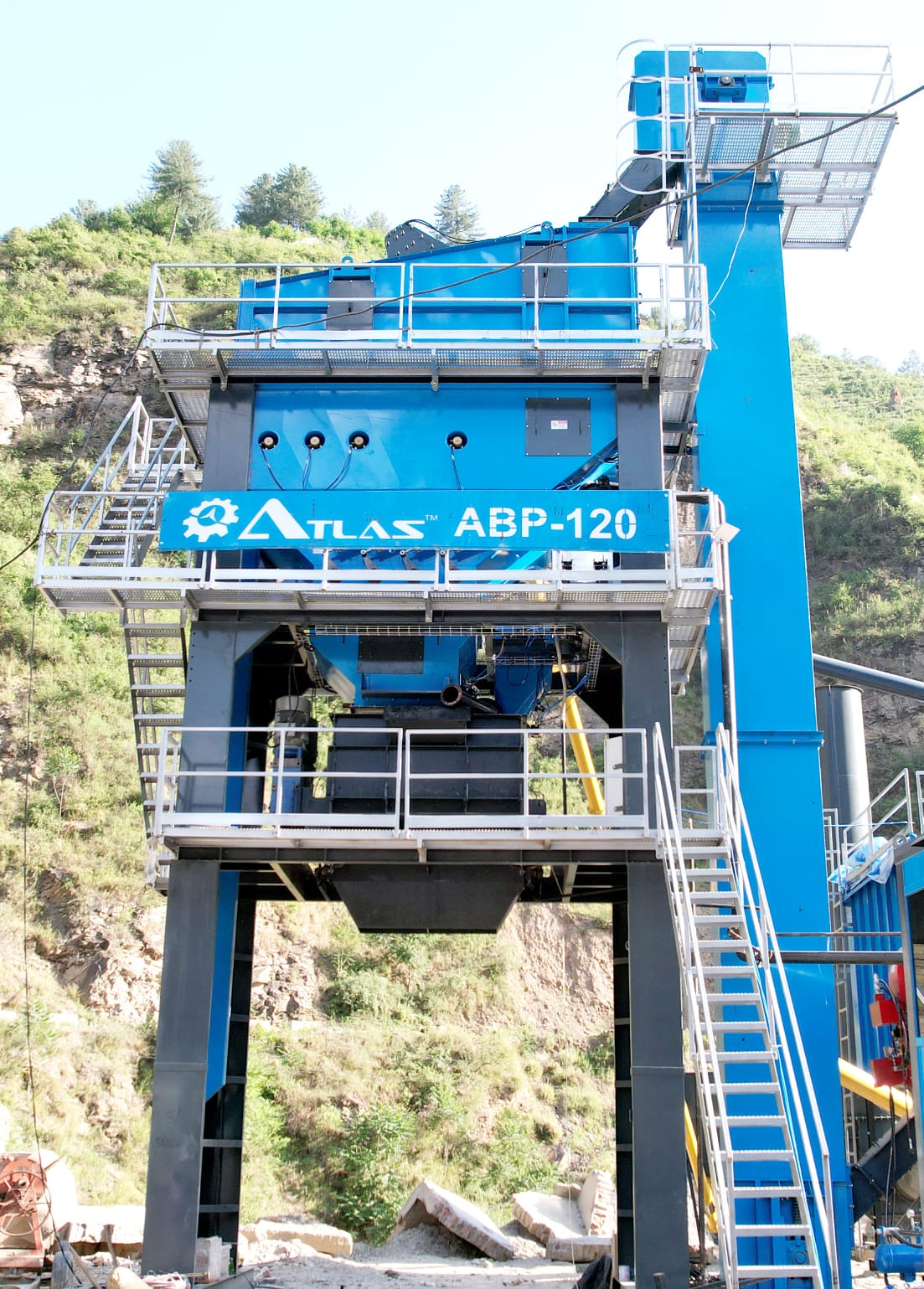

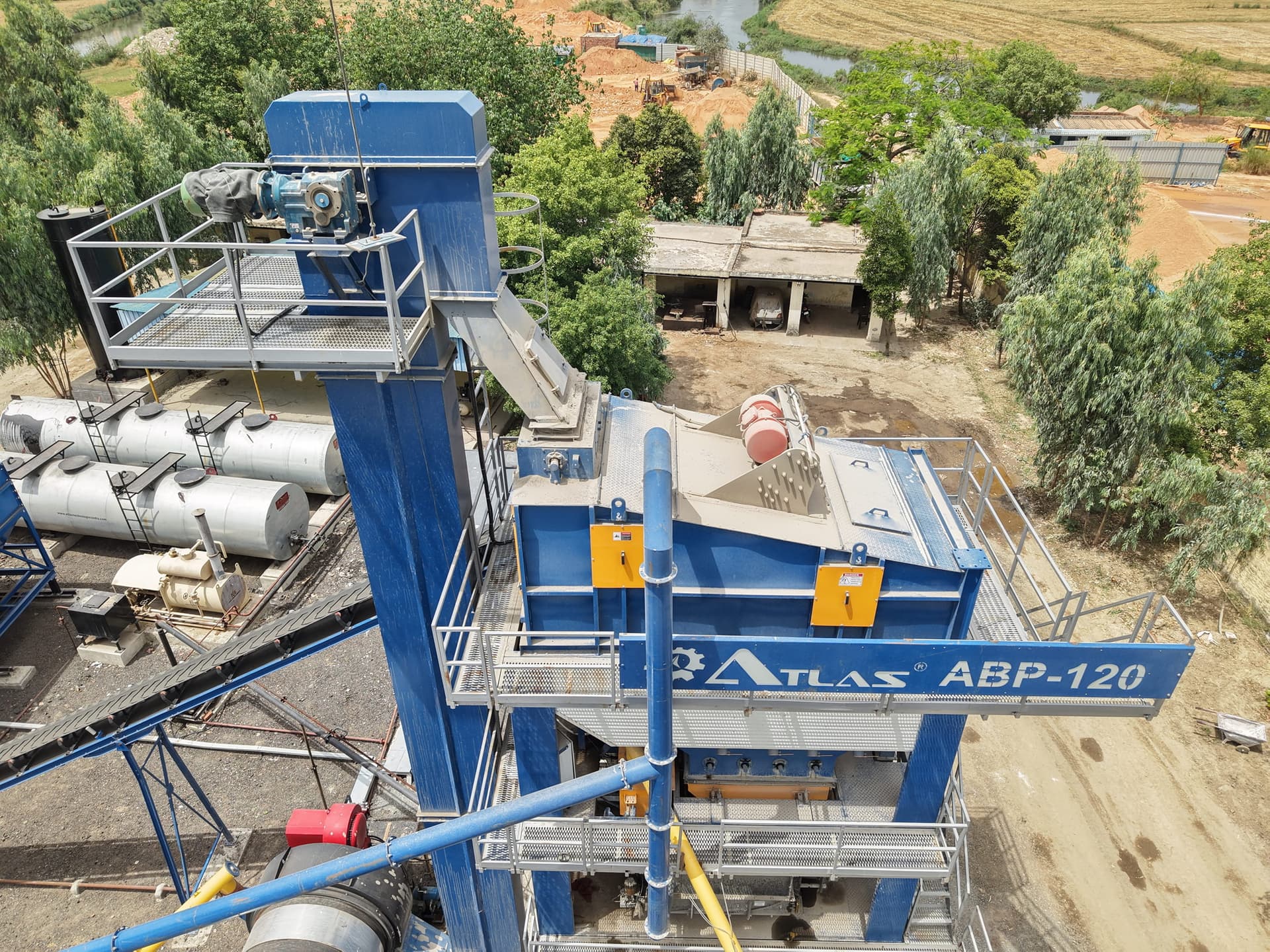

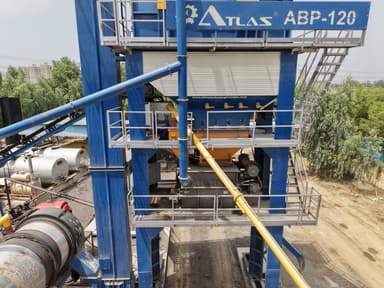

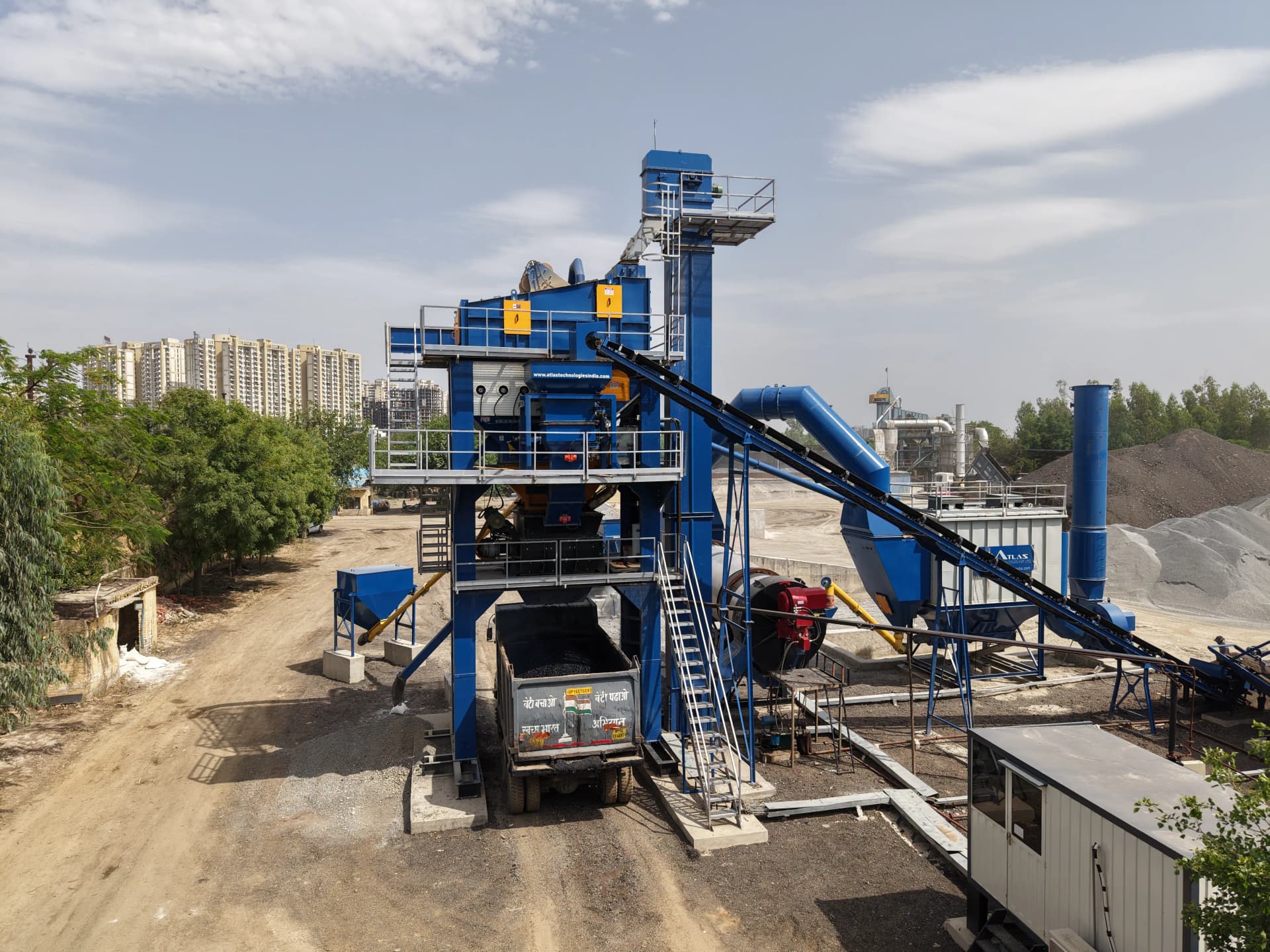

ABP 120 Stationary Asphalt Batch Plant
120 TPH Production | 1600 kg Twin-Shaft Mixer | RAP & SMA Ready
The ABP 120 is a stationary, fully automatic asphalt batching plant designed for high-volume projects. With its 120 tons per hour output, robust twin-shaft mixer, and advanced PLC-based controls, it ensures consistent asphalt quality for highways, airports, and large-scale infrastructure projects....
Read More
See the ABP (120) Stationary Plant in Action
Key Features & Benefits
Discover what makes the ABP Series (120) a leader in asphalt production.
High-Volume Production
120 TPH rated output with 1600 kg batch size, achieving up to 80 cycles per hour.
Precision Mixing
Twin-shaft pugmill mixer with wear-resistant liners ensures uniform and homogenous mixing.
Efficient Dust Control
Baghouse filter with 300 m² filtration area and 216 bags keeps emissions ≤0.1 g/m³.
Automated Control
PLC-based system with manual override, free-fall compensation, and storage of 50+ mix designs.
Sustainable Operation
Supports up to 40% cold RAP and 60% hot RAP with optional HRC system; SMA and foam bitumen configurations also available.
Designed for Efficiency
Delivering reliable asphalt production solutions to over 40 countries, here the reasons to choose Atlas ABP (120)
Reduced Transport Costs
Modular container-friendly construction reduces freight and installation effort.
Energy-Efficient Drying
Counterflow dryer drum (1.82 m × 6.4 m) with 8.5 MW modulating burner ensures consistent heating.
Accurate Weighing
Aggregate hopper: 2600 kg, Bitumen: 180 kg, Filler: 225 kg — all load-cell based for precise dosing.
Reliable Operation
Wear-resistant parts and robust chassis minimize downtime and extend service life.
RAP Integration
Cold and hot recycling systems enable sustainable production with significant cost savings.
Precision-Engineered Components
Each component of the ABP (120) is designed for maximum efficiency and reliability
- 4 bins, 9 m³ each (36 m³ total)
- Anti-bridging design, frequency-controlled drives
Smart Design, Seamless Operation
Browse our range of products designed for exceptional performance and reliability.
CONNECT WITH US
Ready to Build? Let’s Talk!
Whether you’re expanding existing facilities or starting new projects, we’re here to help you achieve optimal results. Complete the form, and our engineers will provide a customized solution within 24 hours.
Frequently asked questions.
What is the production capacity of the ABP 120?
+The ABP 120 produces up to 120 TPH with a 1600 kg batch size and 80 mixing cycles per hour, assuming 3% moisture and 150°C output temperature.
