ABP 140 Stationary Asphalt Batch Plan
140 TPH Production | 1750kg Twin Shaft Mixer | RAP & SMA Ready
The ABP Series 140 is a stationary, fully automatic asphalt batching plant designed for high-volume production. With a rated output of 140 tons per hour, a 1750 kg twin-shaft mixer, and advanced PLC-based control systems, it ensures a consistent quality mix for highways, airports, and large-scale infrastructure projects....
Read More
High Capacity
Precision
Durability

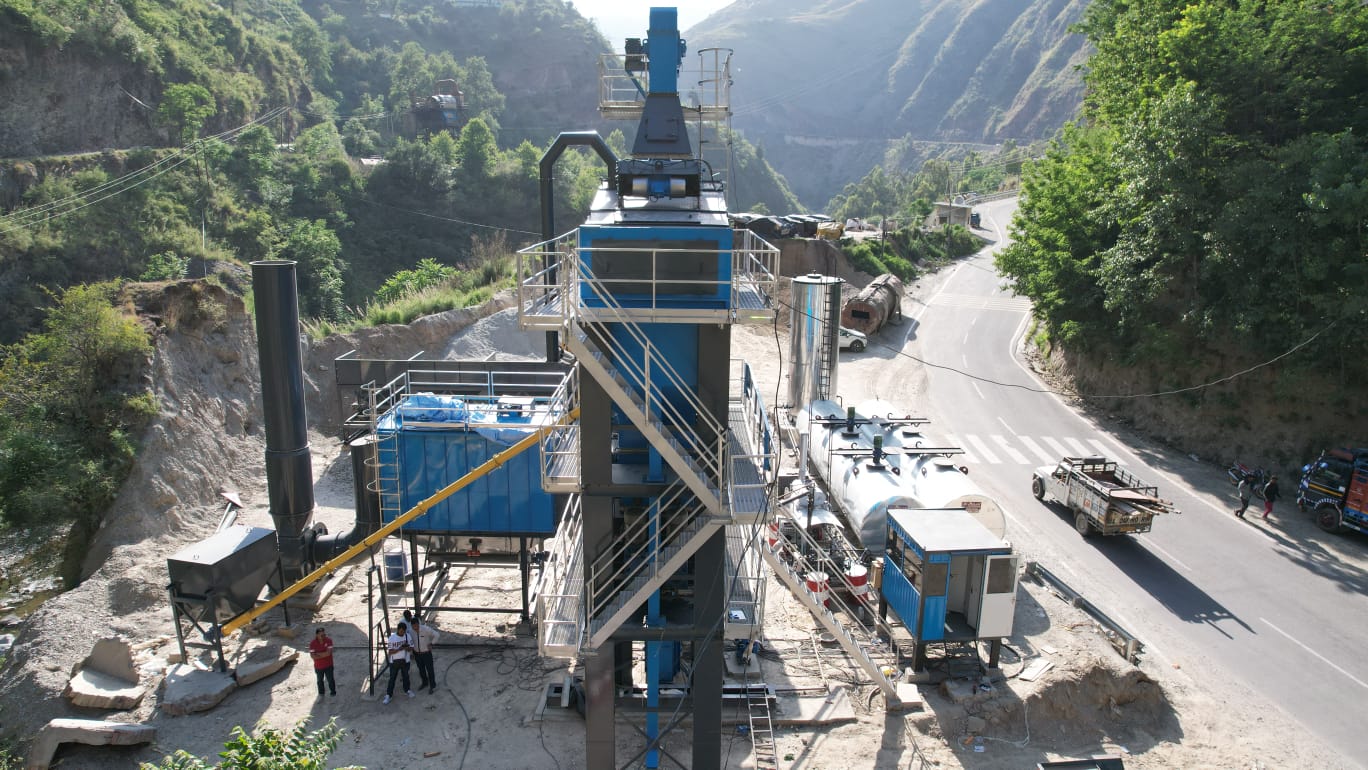

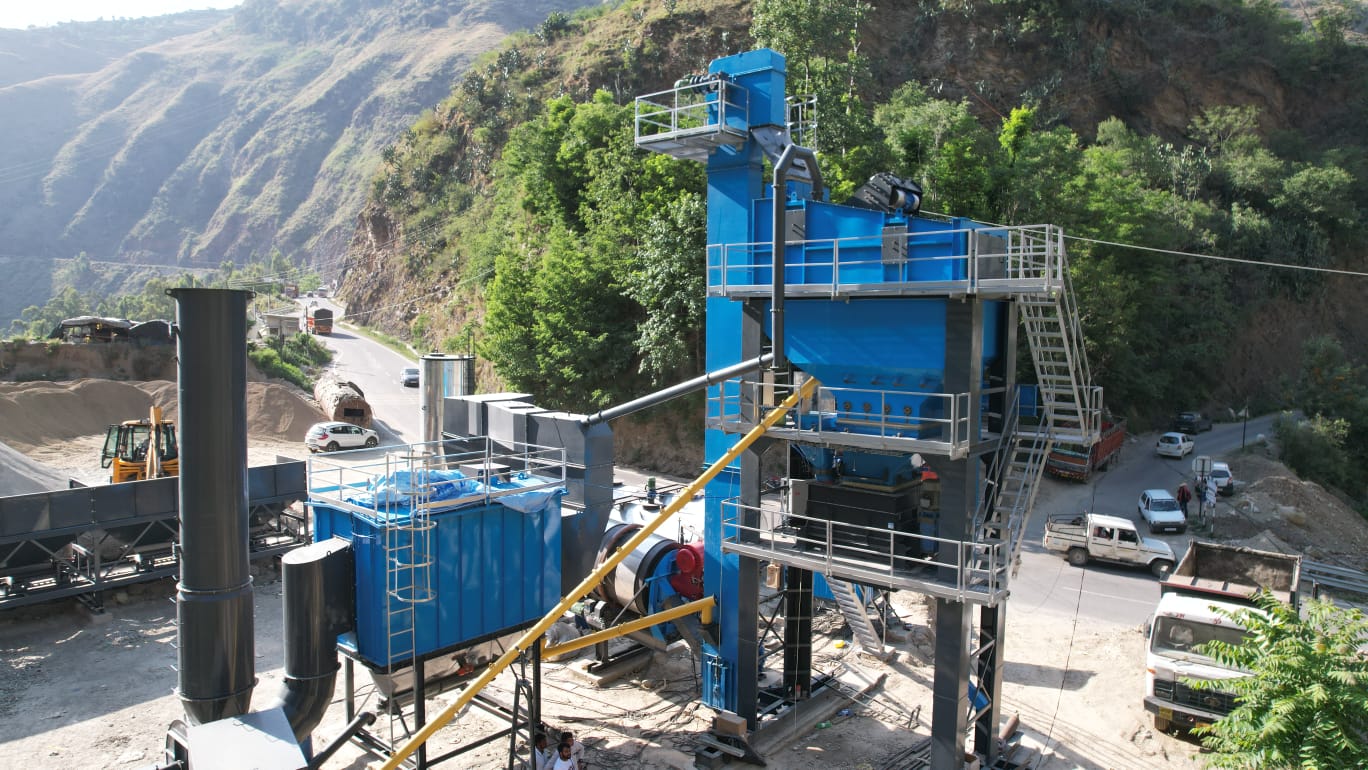

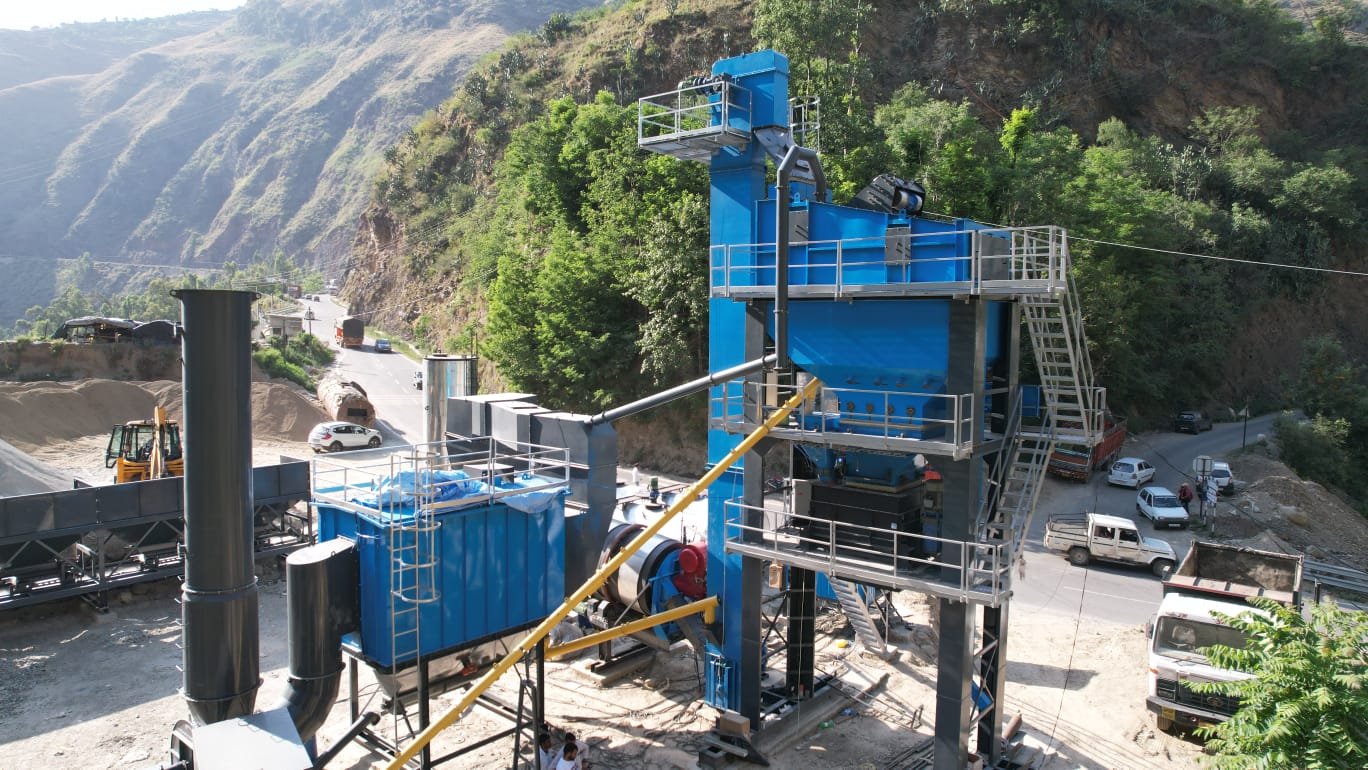

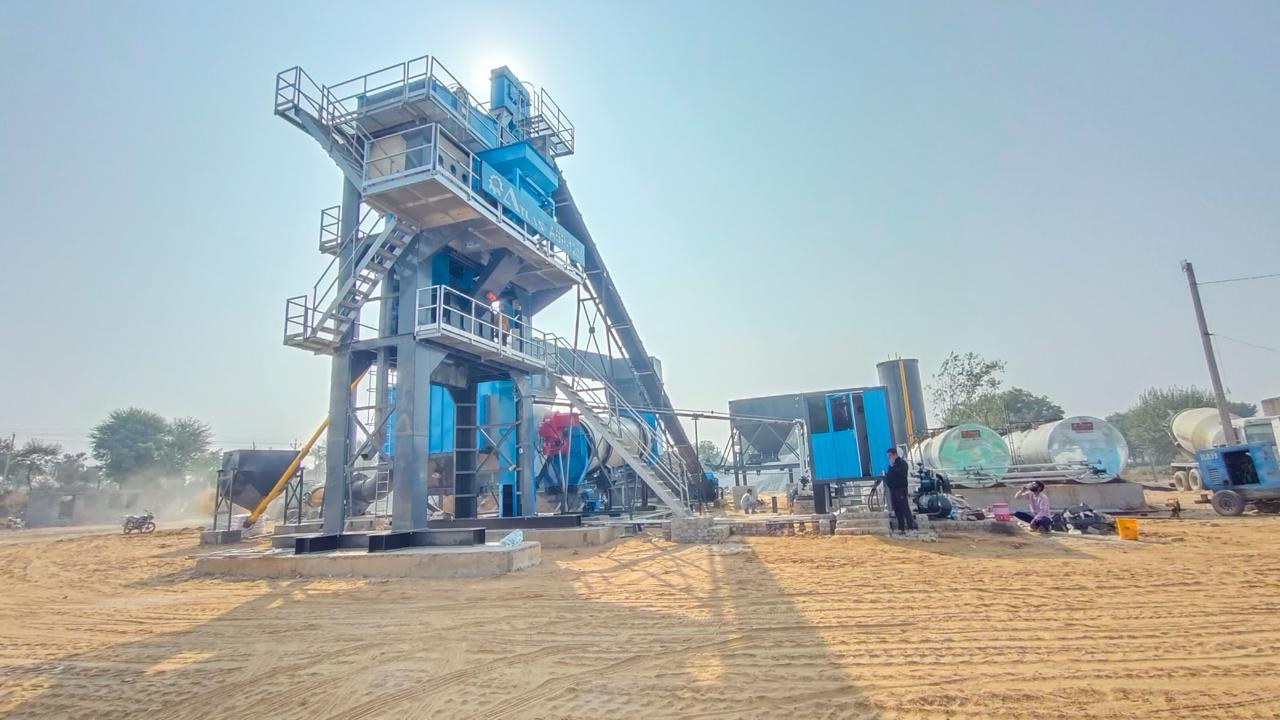

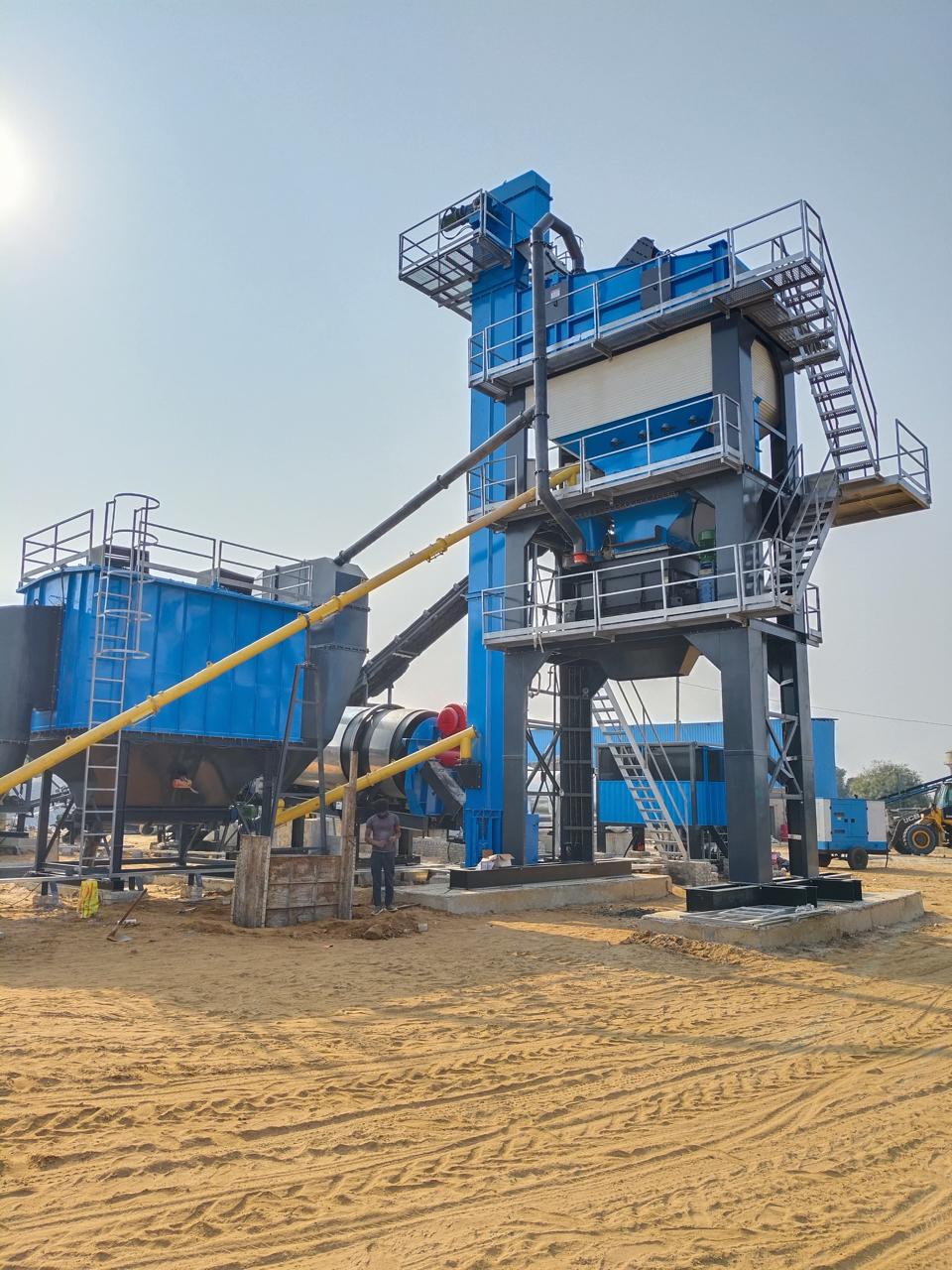

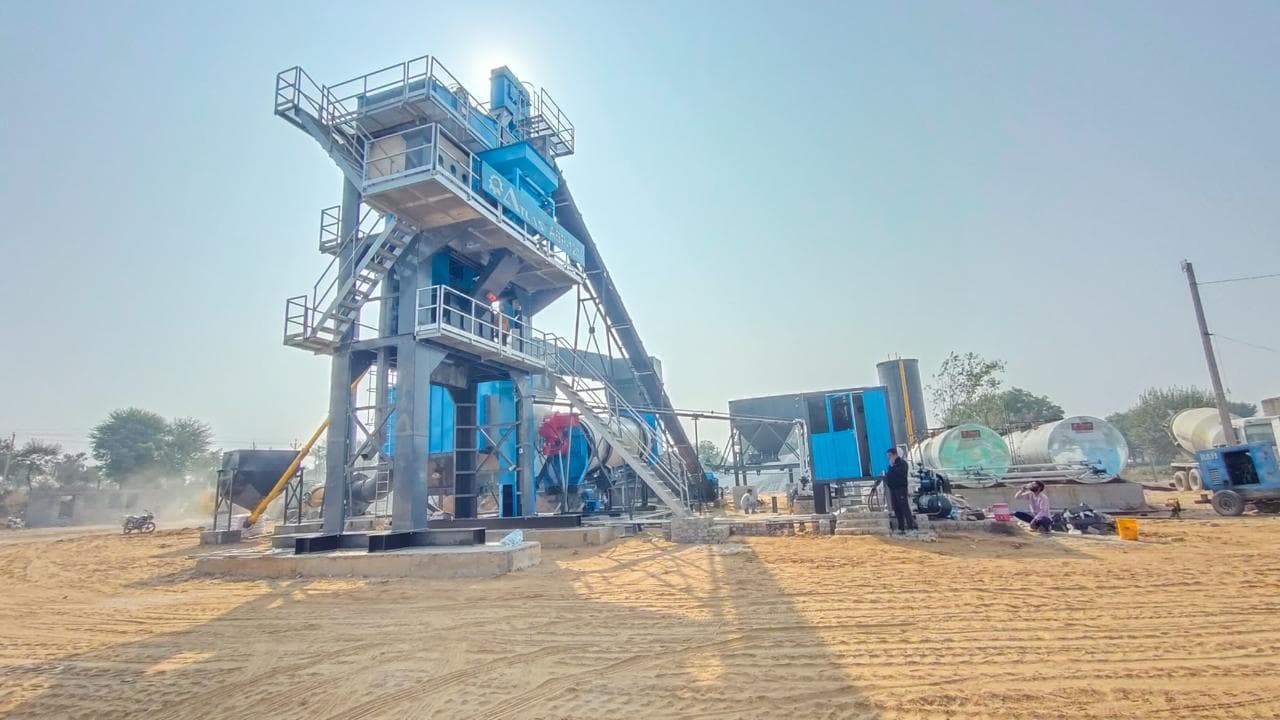

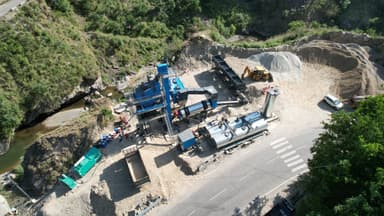

See the ABP (140) Stationary Plant in Action
Key Features & Benefits
Discover what sets the ABP Series (140) apart in the world of asphalt production.
High-Volume Production
140 TPH output with 1750 kg batch size, achieving up to 80 cycles per hour
Precision Mixing
Twin-shaft pugmill mixer with replaceable wear linersensures uniform and homogenous mixing
Efficient Dust Control
Reverse air-flow baghouse filter with 330 m² filter areaand 252 filter bags keeps emissions ≤0.1 g/m³
Automated Controls
PLC-based system with manual override, free-fall compensation, and storage of 50+ mix designs
Sustainable Operation
Supports up to 40% cold RAP and 60% hot RAPwith HRC system; optional SMA and foam bitumen production
The Efficiency Excellence
Why is the ABP (140) the ultimate choice for large-scale asphalt production?
Reduced Transport Costs
Modular, container-friendly design for simplified transport and setup
Energy-Efficient Drying
Counterflow dryer drum (1.82 m × 7.0 m) with optimized flights and 8.5 MW modulating burner for consistent aggregate heating
Accurate Weighing
Aggregate hopper: 2600 kg, Bitumen: 180 kg, Filler: 225 kg — all load-cell supported for dosing precision
Reliable Operation
Heavy-duty construction and wear-resistant partsreduce downtime and extend service life
RAP Integration
Cold and hot recycling systems enable cost savings and sustainable asphalt production
Precision-Engineered Components
Each component of the Stationary Asphalt Batch Plants (ABP) is designed for maximum efficiency and reliability
- 4 bins, 10 m³ each (40 m³ total)
- Anti-bridging design with frequency-controlled drives
Smart Design, Seamless Operation
Browse our range of products designed for exceptional performance and reliability.
CONNECT WITH US
Ready to Build? Let’s Talk!
Whether you’re expanding existing facilities or starting new projects, we’re here to help you achieve optimal results. Complete the form, and our engineers will provide a customized solution within 24 hours.
Frequently asked questions.
What is the production capacity of the ABP 140?
+The ABP 140 produces up to 140 TPH with a batch size of 1750 kg and 80 mixing cycles per hour, assuming 3% aggregate moisture and 150°C output temperature.
