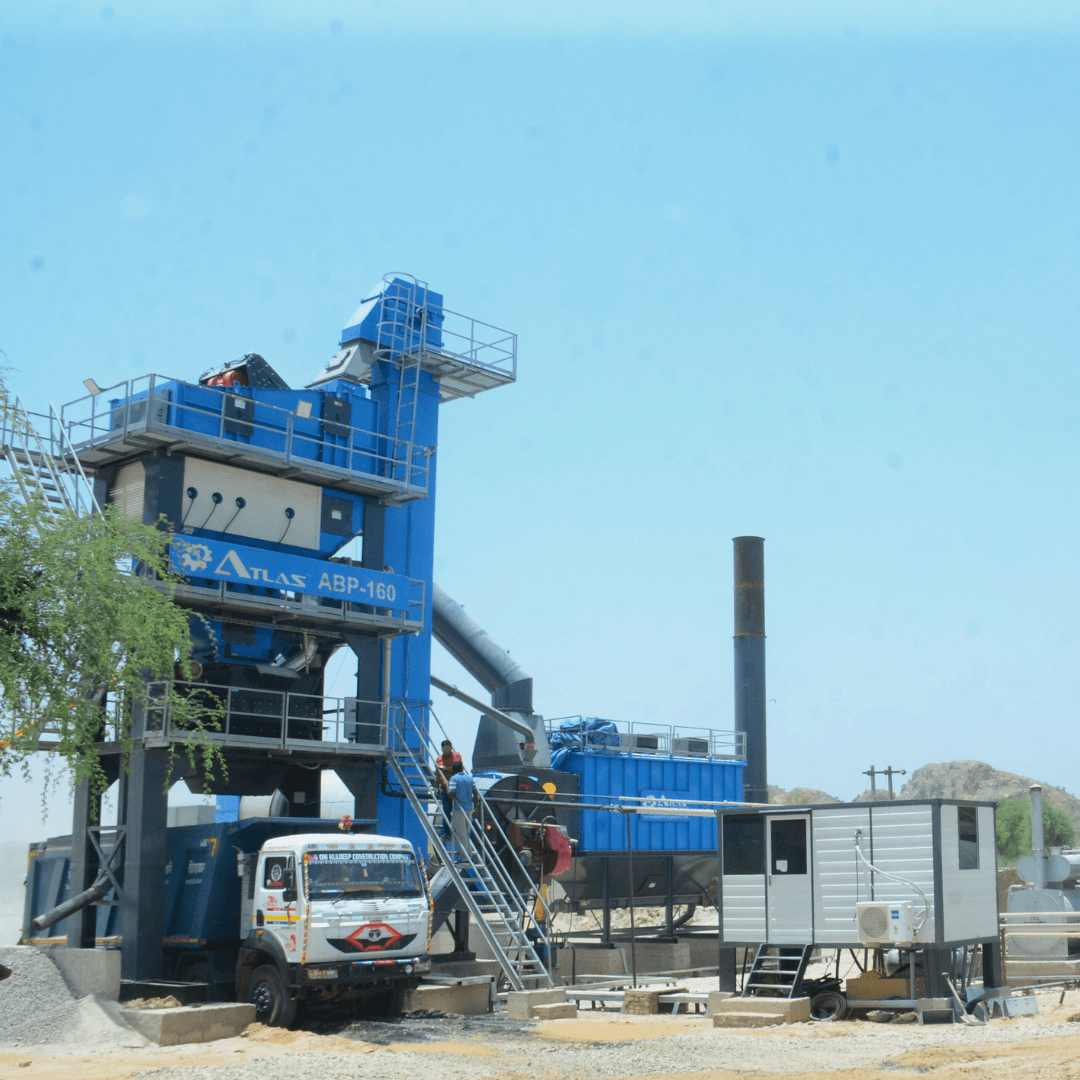

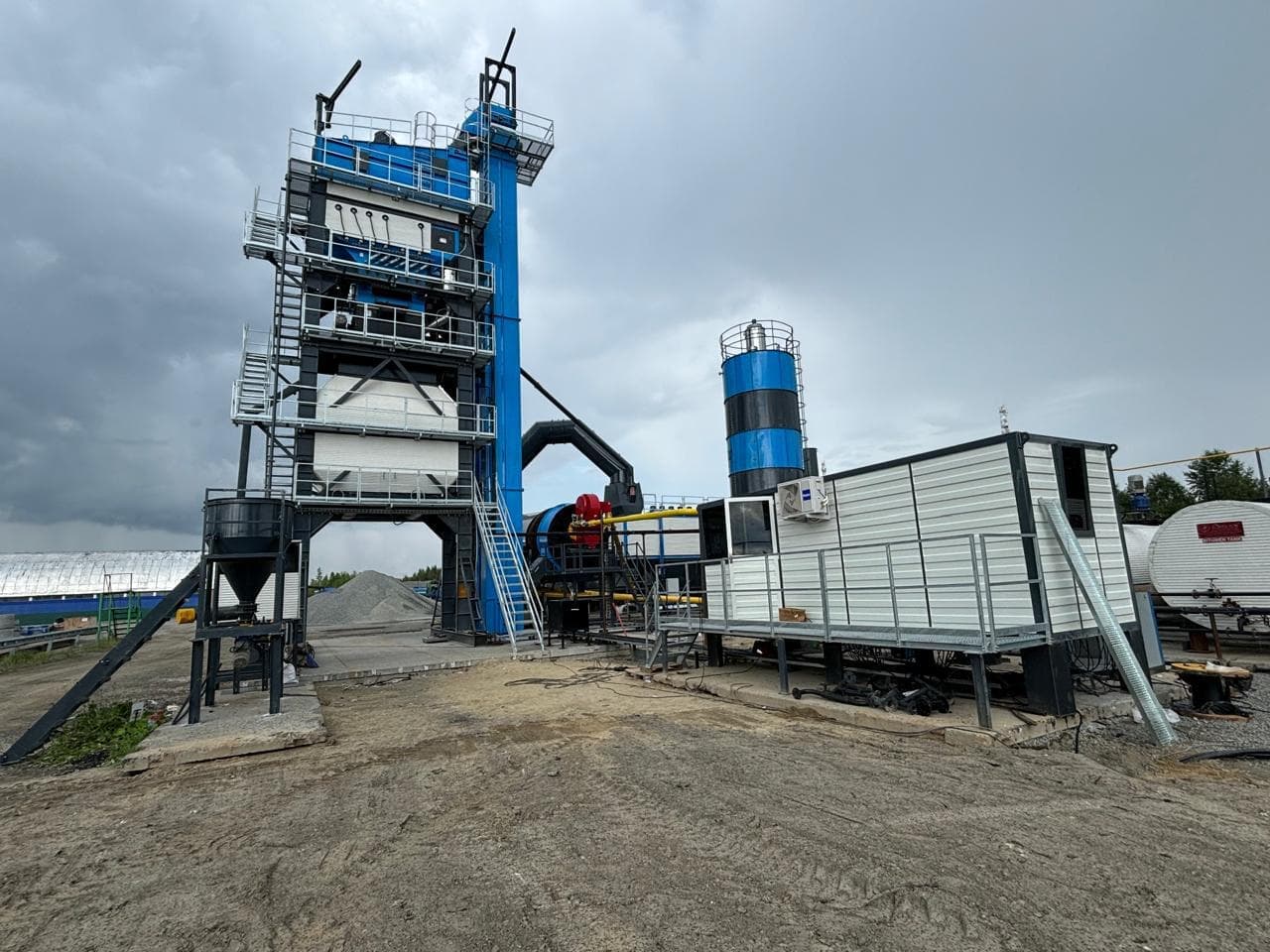

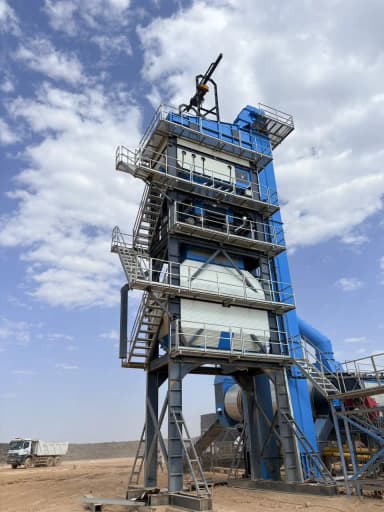

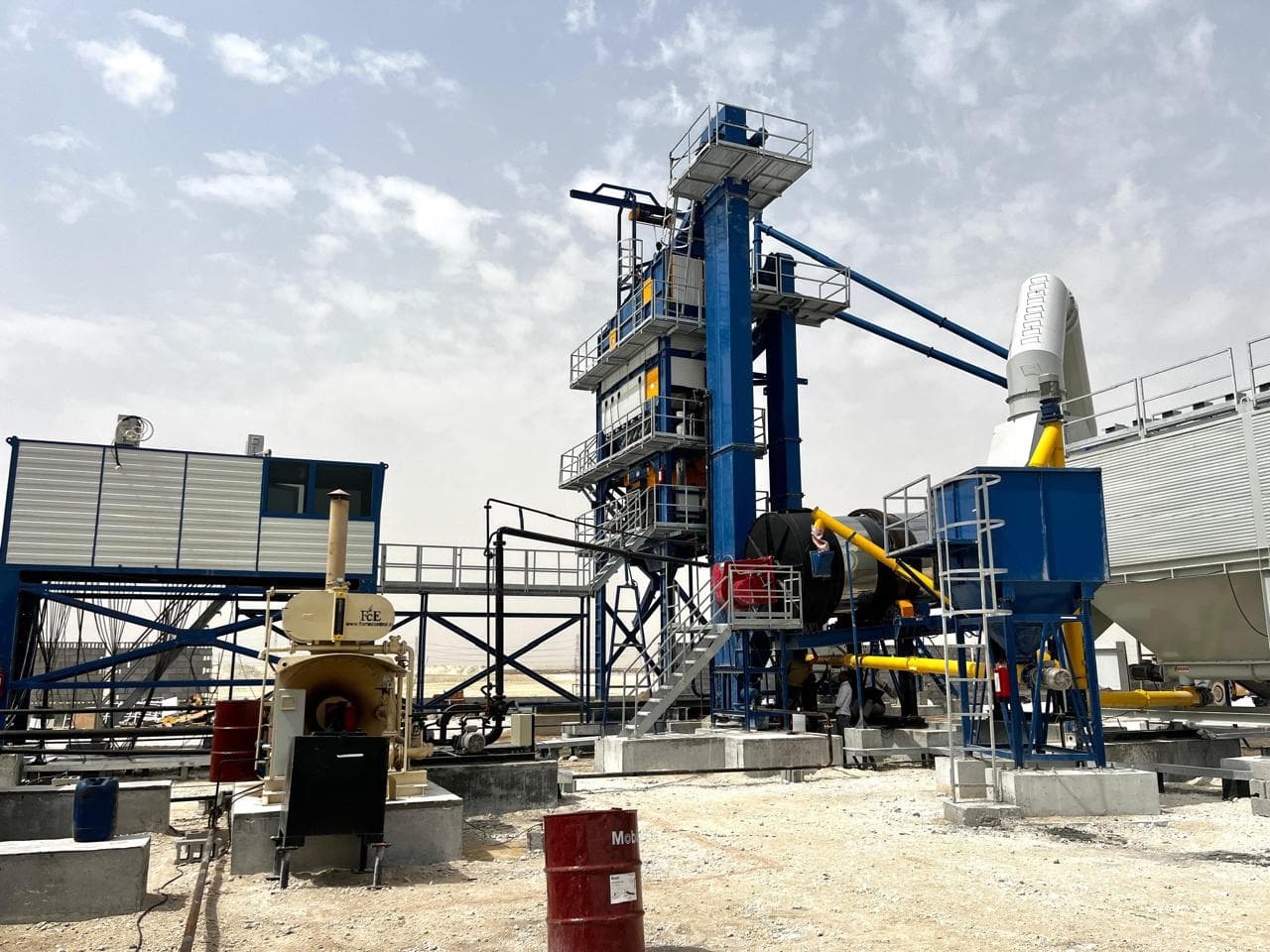

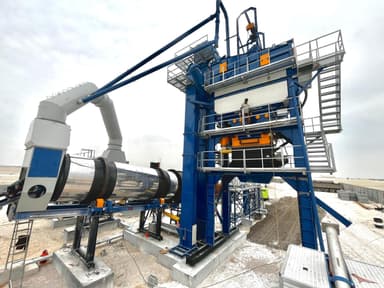

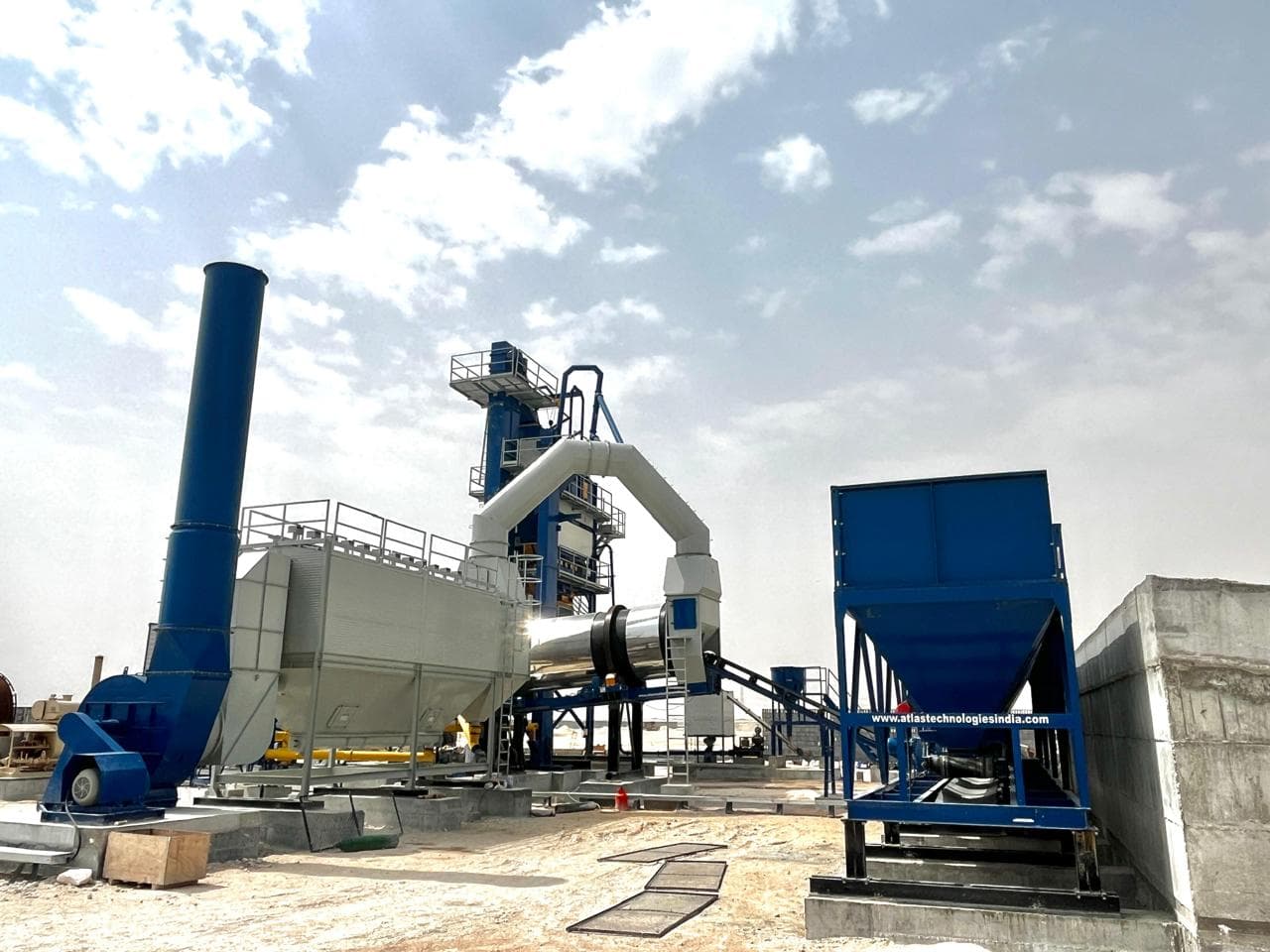

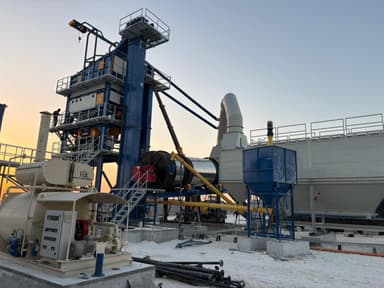

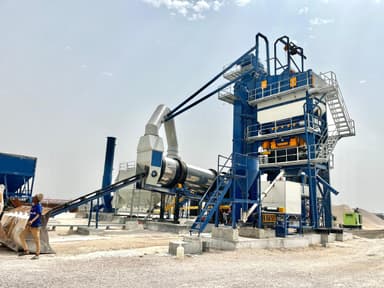

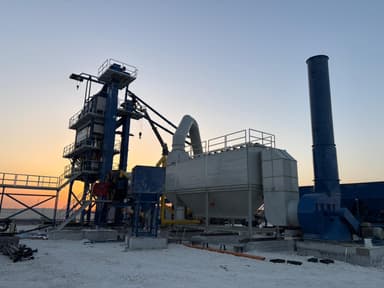

ABP 160 Stationary Asphalt Batch Plant
160 TPH Production | 2000kg Twin Shaft Mixer | RAP & SMA Ready
The ABP 160 is a stationary, fully automatic asphalt batching plant engineered for large-scale, high-output projects. With its 160 tons per hour rated capacity, 2000 kg twin-shaft mixer, and advanced PLC-based controls, it consistently delivers high-quality asphalt mix for highways, expressways, airports, and heavy-duty infrastructure projects....
Read More
High Capacity
Precision
Reliability
See the ABP (160) Stationary Plant in Action
Key Features & Benefits
Discover what makes the ABP Series (160) a leader in high-capacity asphalt production.
High-Volume Production
160 TPH rated output with 2000 kg batch size, supporting up to 80 mixing cycles per hour
Precision Mixing
Twin-shaft pugmill mixer with replaceable wear liners ensures uniform mixing and consistent asphalt quality
Dust Emission Control

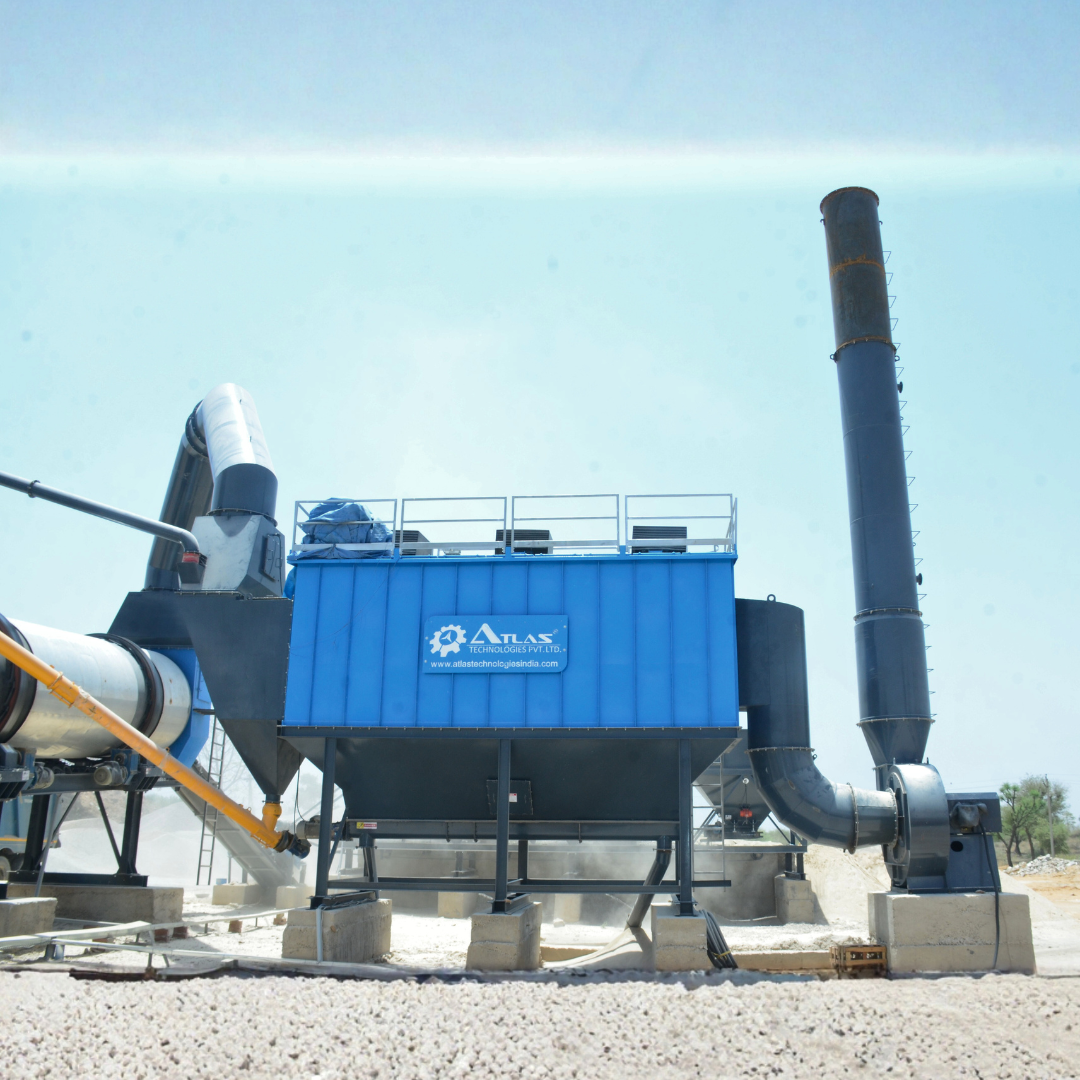

Baghouse filter with 330 m² filtration area and 252 bags reduces dust emissions to ≤0.1 g/m³
Automated Controls
PLC-based automatic sequence control with manual override, mix design storage (50+), alarms, and free-fall compensation
Sustainable Operation
Supports up to 40% cold RAP and 60% hot RAP with HRC system; SMA and foam bitumen production possible with optional accessories
The Efficiency Excellence
Why is the Stationary Asphalt Batch Plants (ABP) the ultimate choice for asphalt production in the road construction industry?
Optimized Transport & Setup
Modular, container-friendly construction simplifies freight and installation
Energy-Efficient Drying

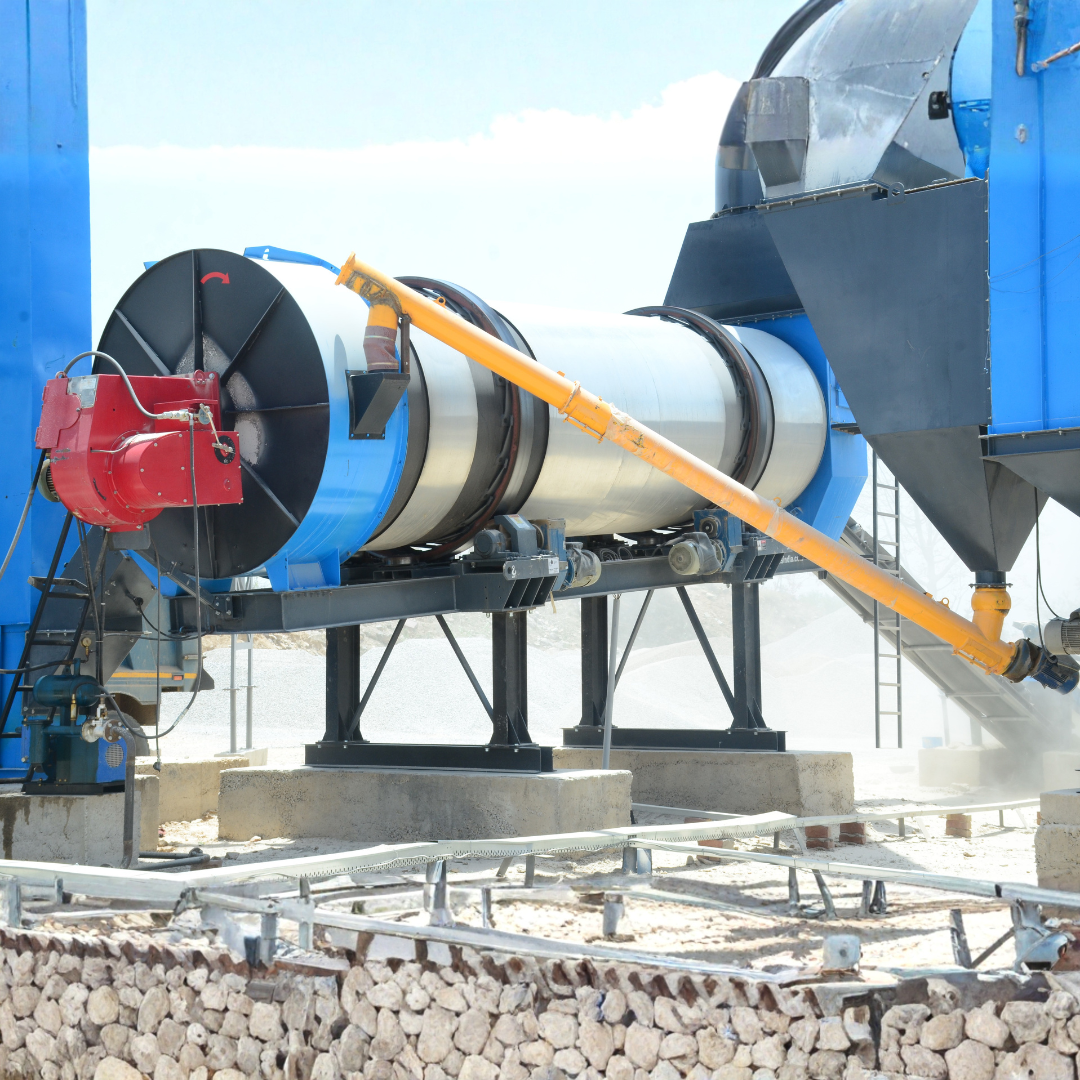

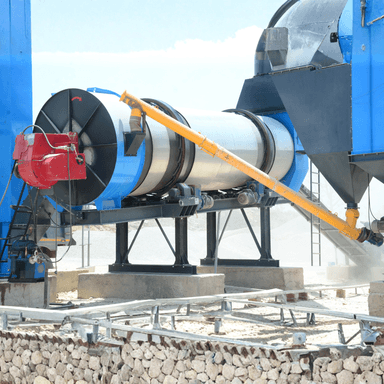

Counterflow dryer drum (2.1 m × 8.0 m) with optimized flights and 11 MW modulating burner for reliable heating performance
Accurate Weighing
Aggregate hopper: 2600 kg, Bitumen: 180 kg, Filler: 225 kg — all supported by dedicated load cells
Reliable Operation
Heavy-duty construction, wear-resistant liners, and centralized lubrication reduce downtime
RAP Integration
Designed for cold and hot recycling, enabling sustainable production and reduced material costs
Precision-Engineered Components
Each component of the ABP (160) is designed for maximum efficiency and reliability

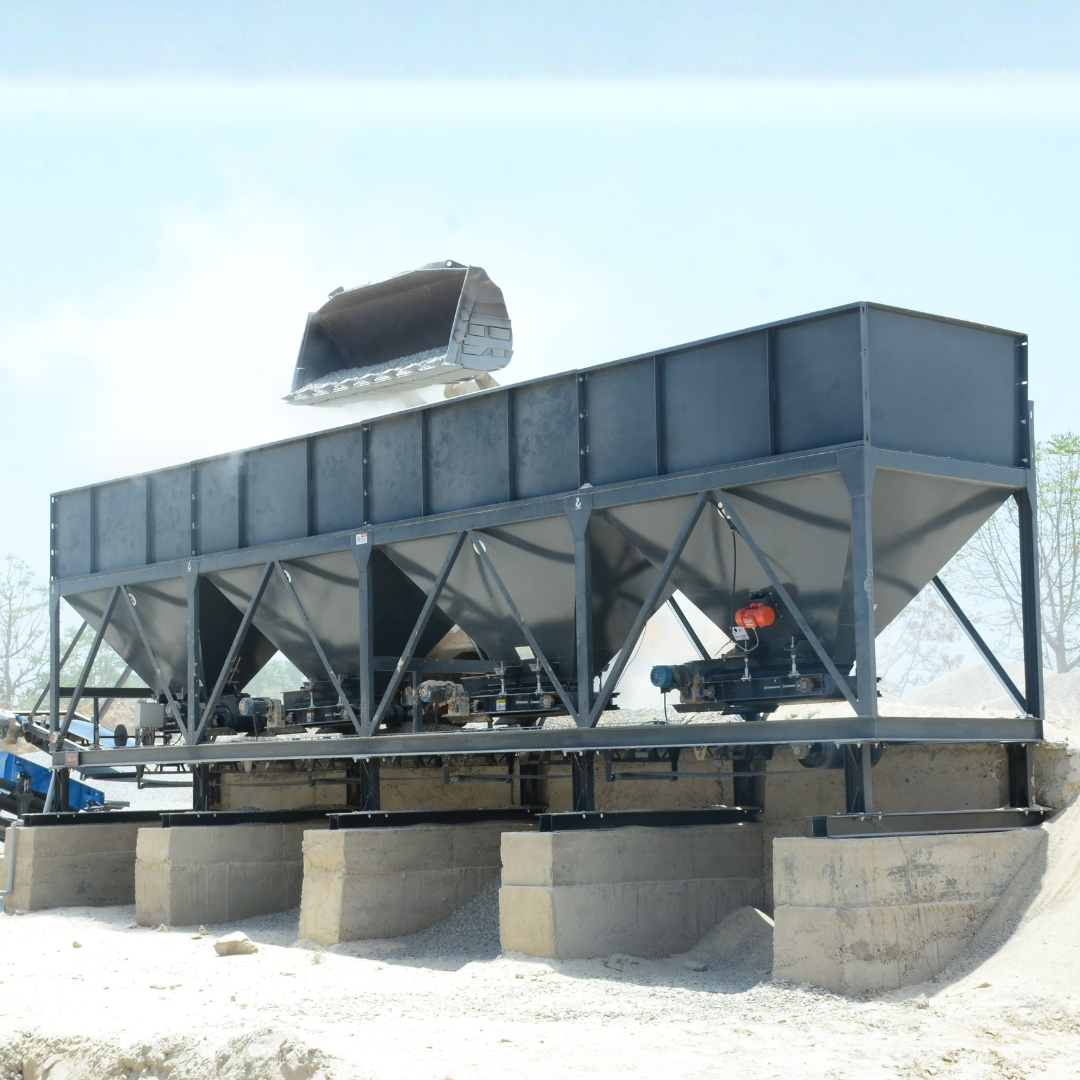

- 4 bins, 10 m³ each (40 m³ total capacity)
- Anti-bridging design and variable-speed drives
Smart Design, Seamless Operation
Browse our range of products designed for exceptional performance and reliability.
CONNECT WITH US
Ready to Build? Let’s Talk!
Whether you’re expanding existing facilities or starting new projects, we’re here to help you achieve optimal results. Complete the form, and our engineers will provide a customized solution within 24 hours.
Frequently asked questions.
What is the production capacity of the ABP 160?
+The ABP 160 delivers up to 160 TPH with a 2000 kg batch size and 80 mixing cycles per hour, based on 3% aggregate moisture and 150°C output temperature.
