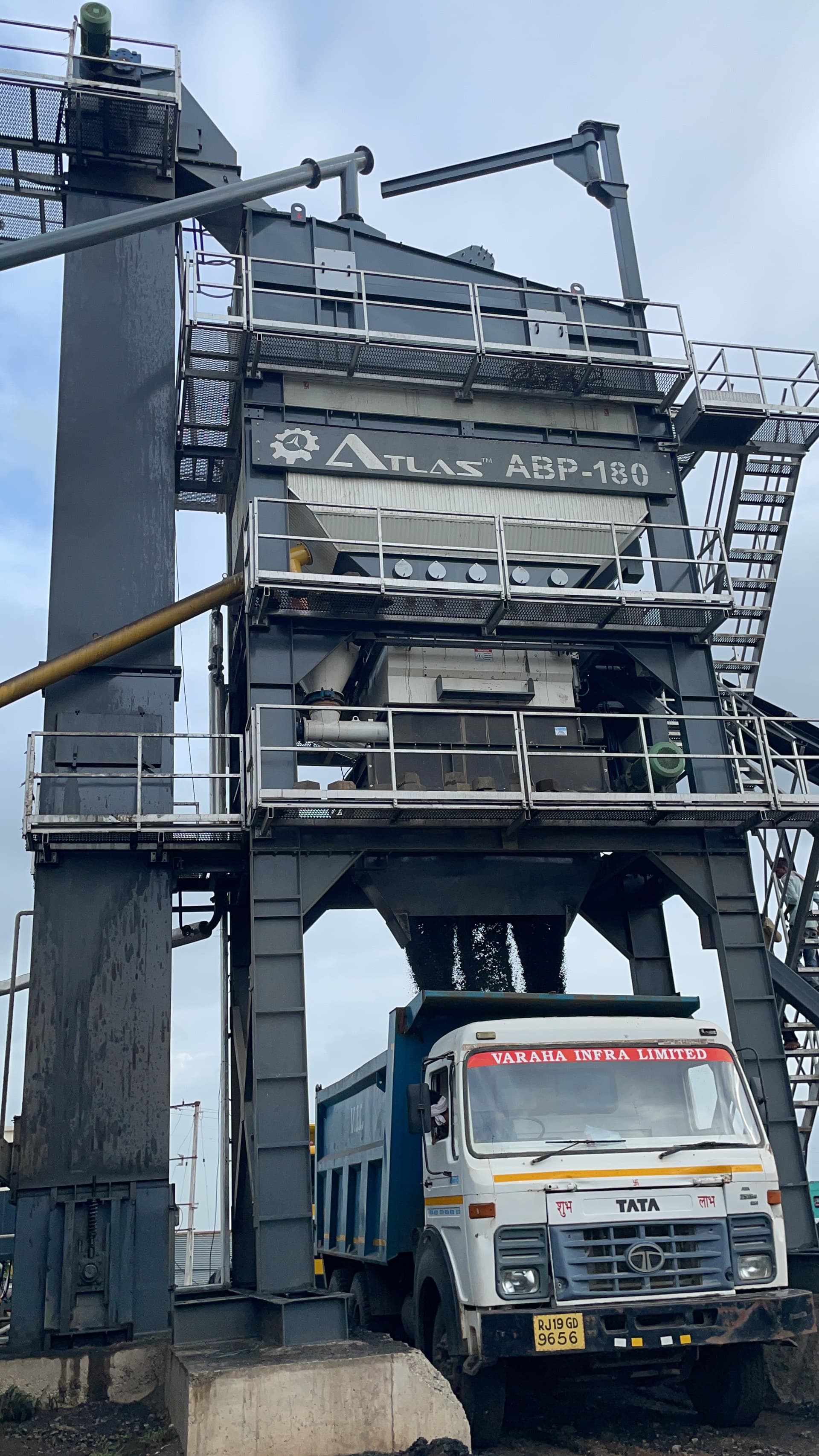

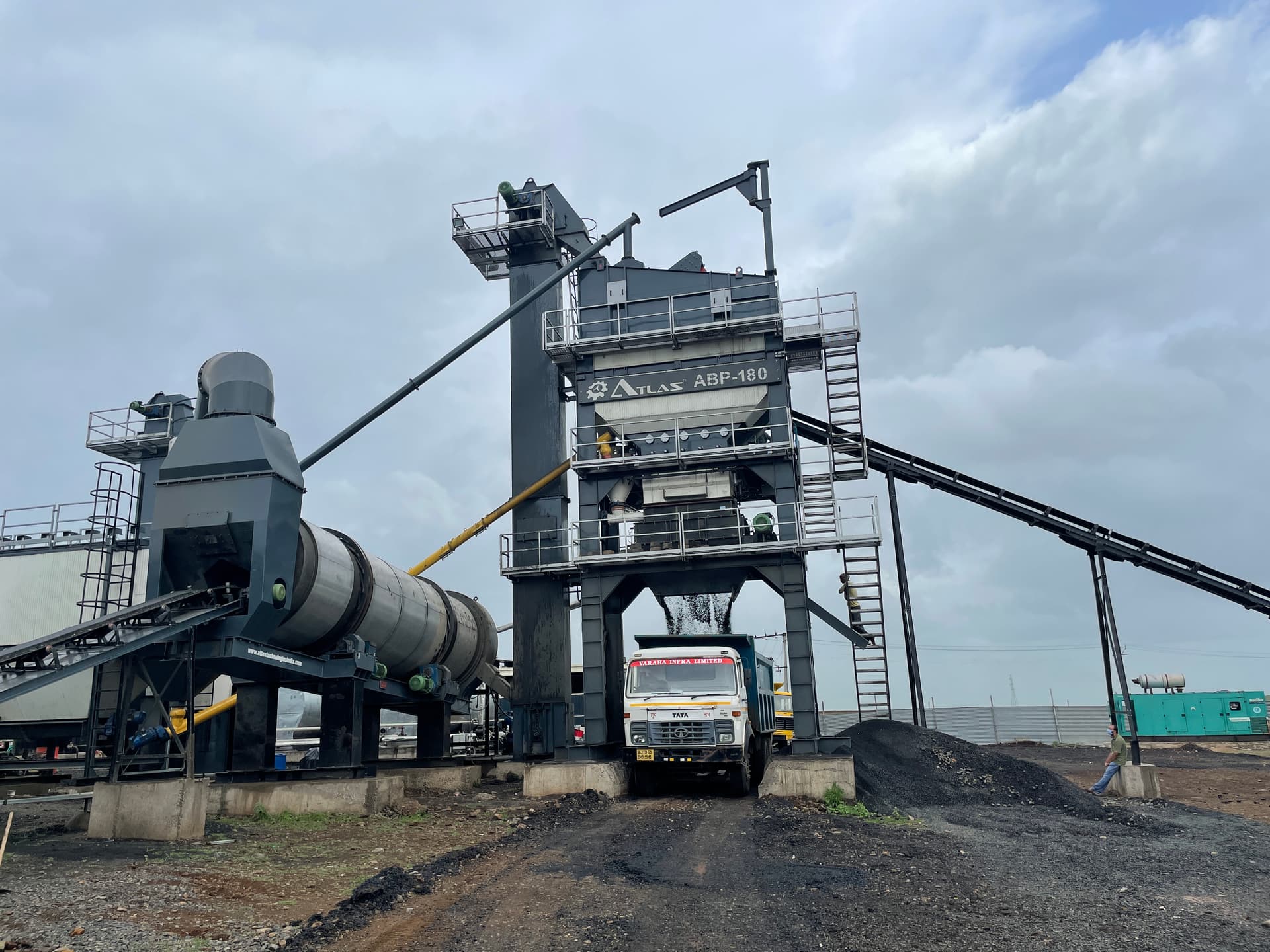

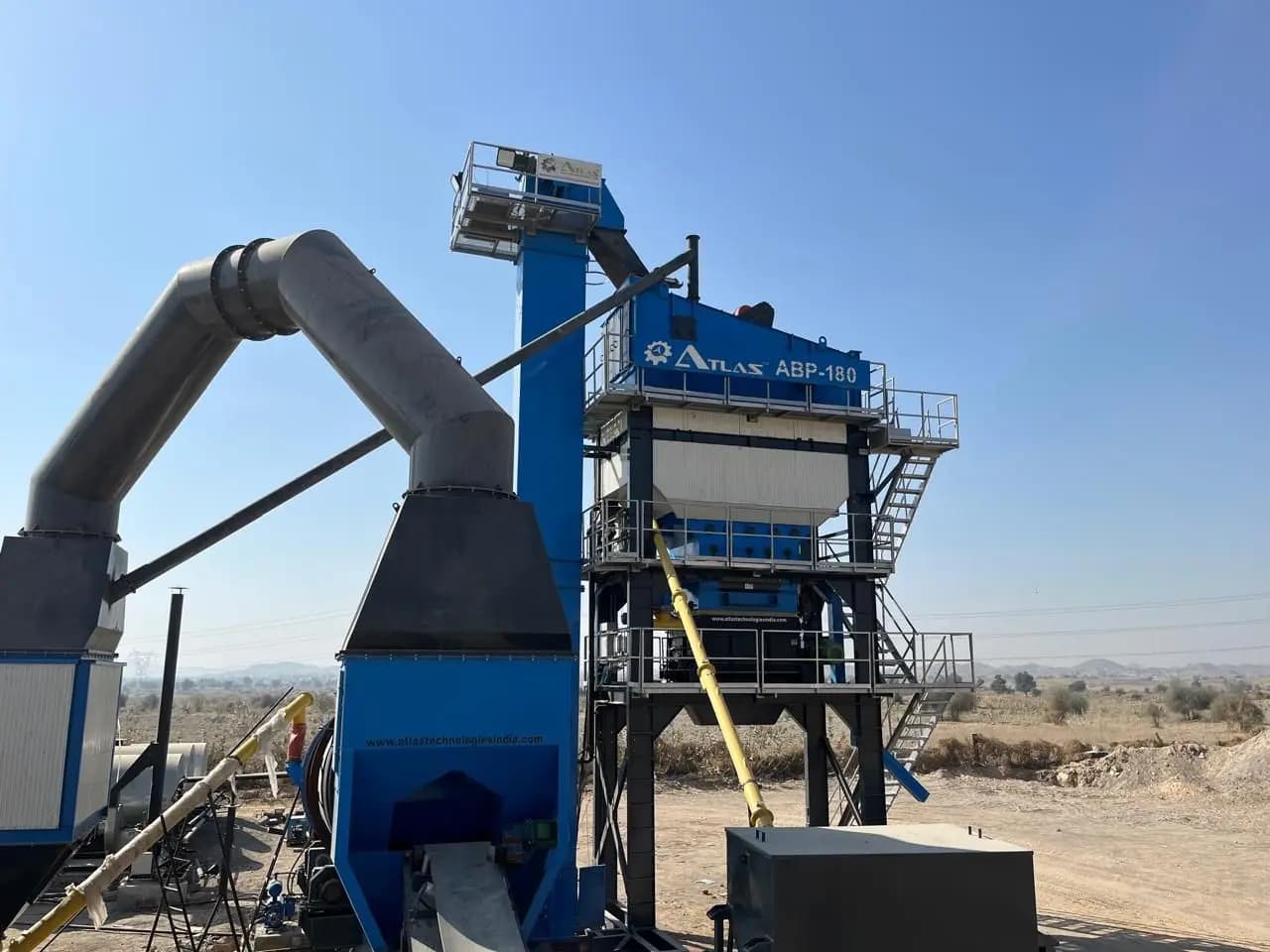

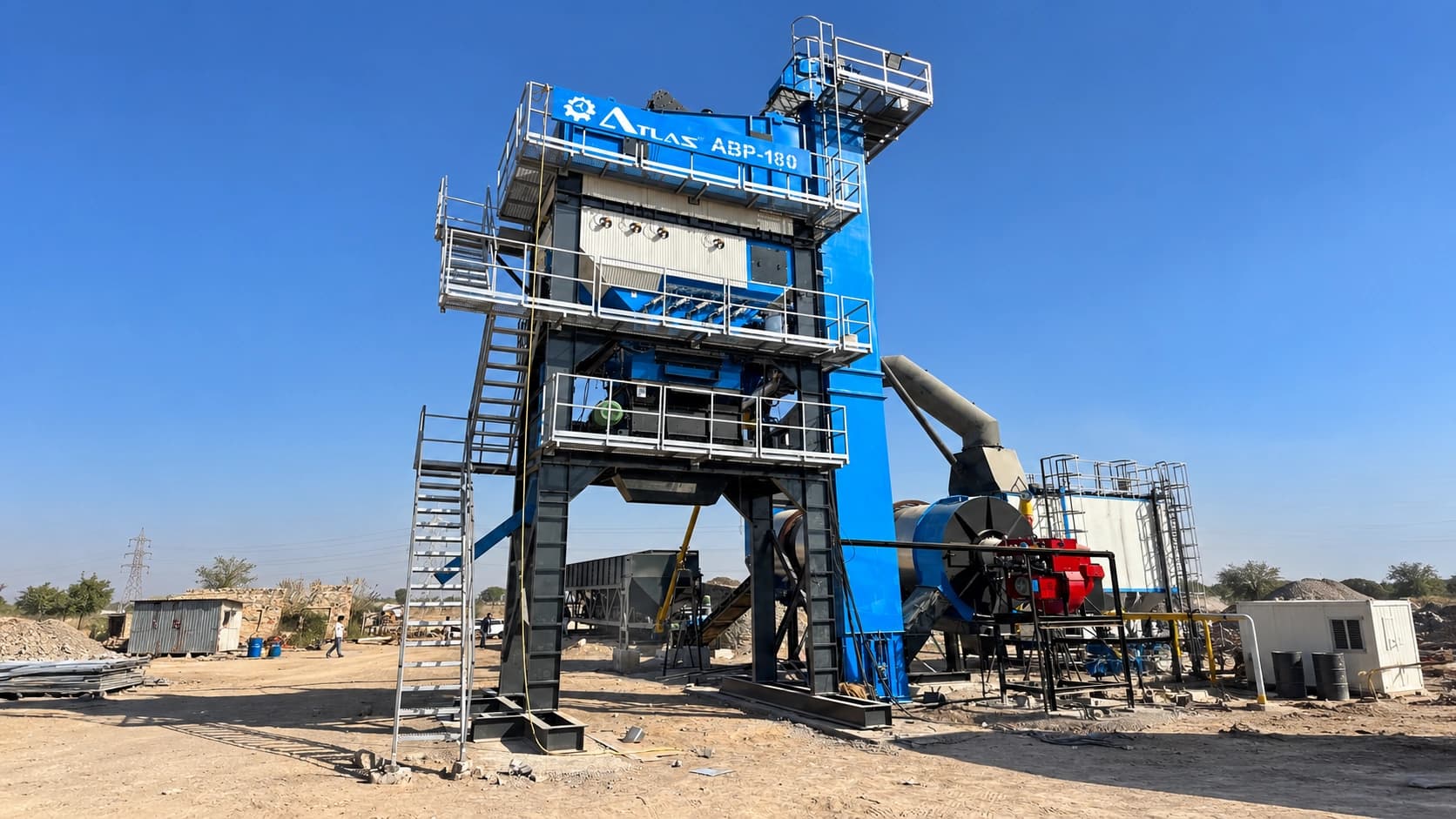

ABP 180 Stationary Asphalt Batch Plant
180 TPH Production | 2250kg Twin Shaft Mixer | RAP & SMA Ready
The ABP 180 is a stationary, fully automatic asphalt batching plant designed for high-capacity production. With its 180 tons per hour rated capacity, a 2250 kg twin-shaft mixer, and PLC-based automated controls, it delivers consistent asphalt mix for highways, expressways, airports, and large-scale infrastructure projects....
Read More
High Capacity
Precision
Efficiency

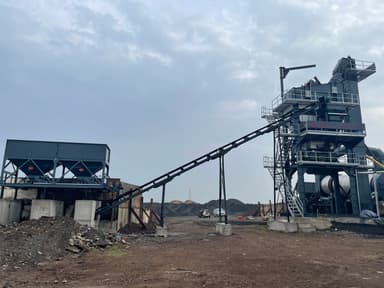

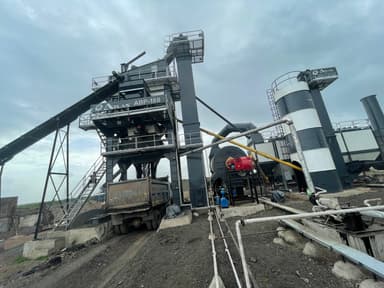

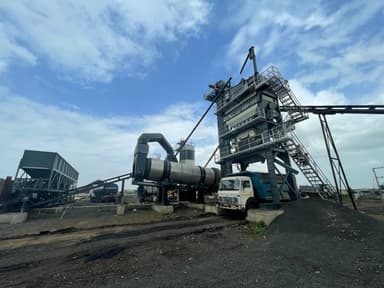

See the ABP (180) Stationary Plant in Action
Key Features & Benefits
Discover what makes the ABP Series (180) a leader in high-capacity asphalt production.
High-Volume Production
180 TPH rated output with 2250 kg batch size, supporting up to 80 mixing cycles per hour
Reliable Mixing
Twin-shaft pugmill mixer with wear-resistant liners and specially designed arms for homogenous mixing

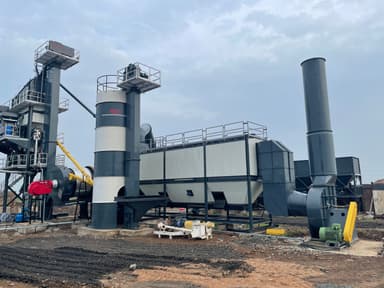

Advanced Dust Control
Baghouse filter with 510 m² filtration area and 384 Nomex filter bags keeps emissions ≤0.1 g/m³
Automated Controls
PLC-based control system with manual override, free-fall compensation, alarms, and storage of 50+ mix designs
Sustainable Operation
Supports up to 40% cold RAP and 60% hot RAP with HRC system; SMA and foam bitumen production possible with optional accessories
The Efficiency Excellence
Discover why contractors prefer ABP (180) for asphalt production in the road and civil construction projects
Modular Transport & Setup
Container-friendly design simplifies logistics and reduces installation time
Efficient Drying
Counterflow dryer drum (2.1 m × 8.0 m) with optimized flights and 14 MW air-atomized burner for high thermal efficiency
Accurate Weighing
Aggregate: 3700 kg, Bitumen: 270 kg, Filler: 225 kg — all load-cell based for high precision
Durable & Reliable
Heavy-duty chassis, wear-resistant components, and centralized lubrication for reduced downtime
RAP Integration
Cold and hot recycling systems allow sustainable, cost-efficient asphalt production
Precision-Engineered Components
Each component of the Stationary Asphalt Batch Plants (ABP) is designed for maximum efficiency and reliability
- 5 bins, 10 m³ each (50 m³ total)
- Anti-bridging design, variable-speed feeders
Smart Design, Seamless Operation
Browse our range of products designed for exceptional performance and reliability.
CONNECT WITH US
Ready to Build? Let’s Talk!
Whether you’re expanding existing facilities or starting new projects, we’re here to help you achieve optimal results. Complete the form, and our engineers will provide a customized solution within 24 hours.
Frequently asked questions.
What is the production capacity of the ABP 180?
+The ABP 180 produces up to 180 TPH with a 2250 kg batch size and 80 mixing cycles per hour, based on 3% aggregate moisture and 150°C output.
