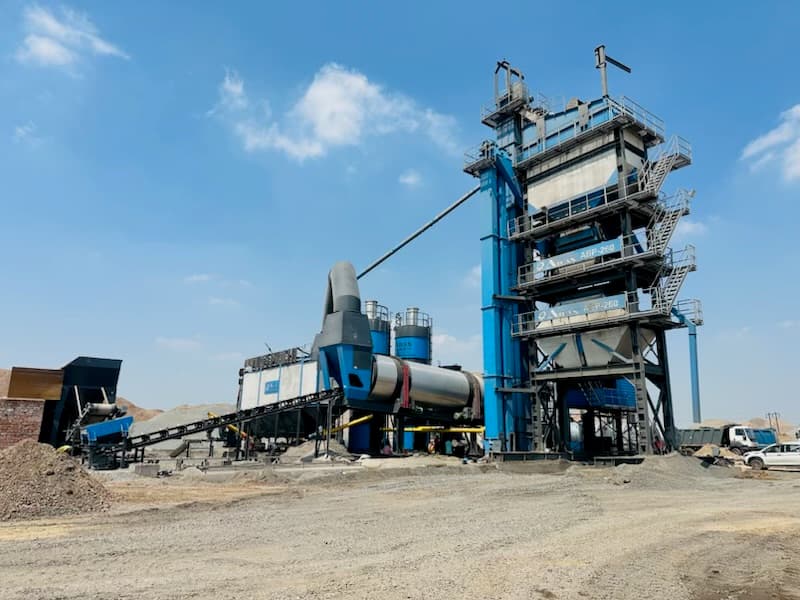

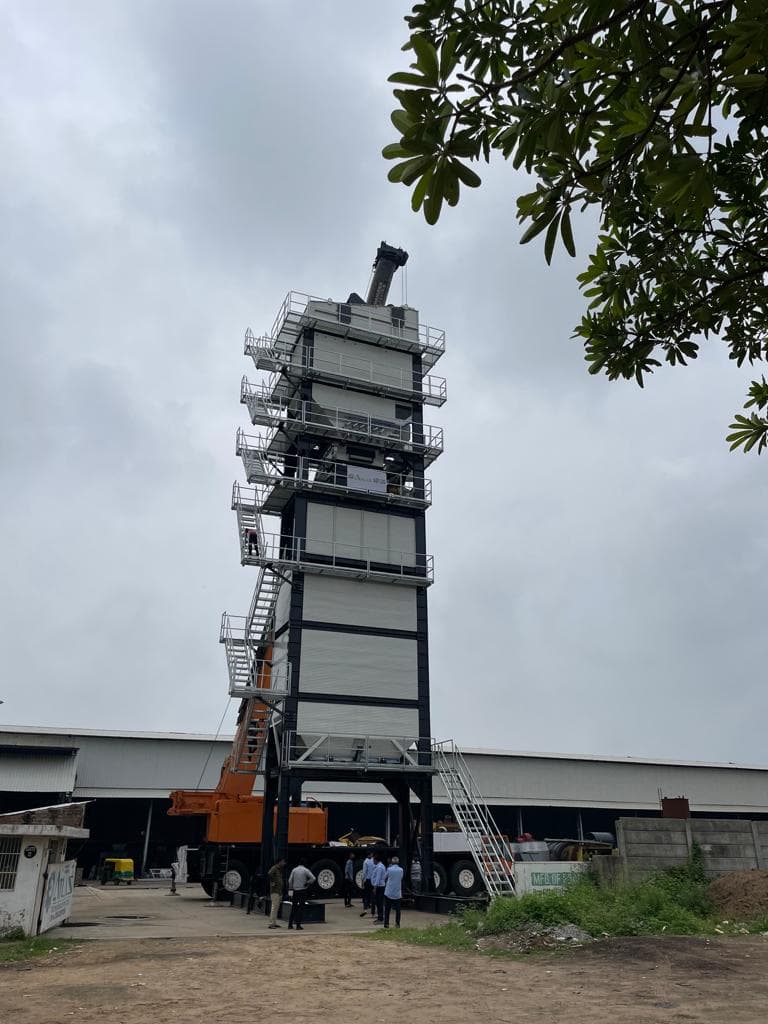

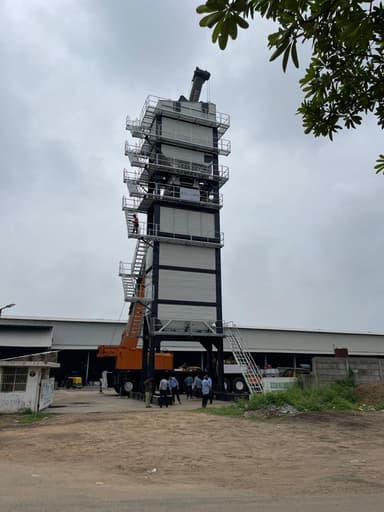

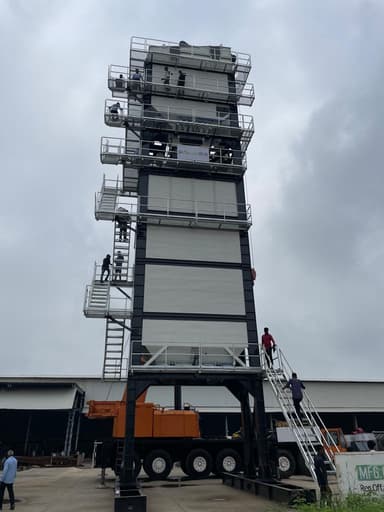

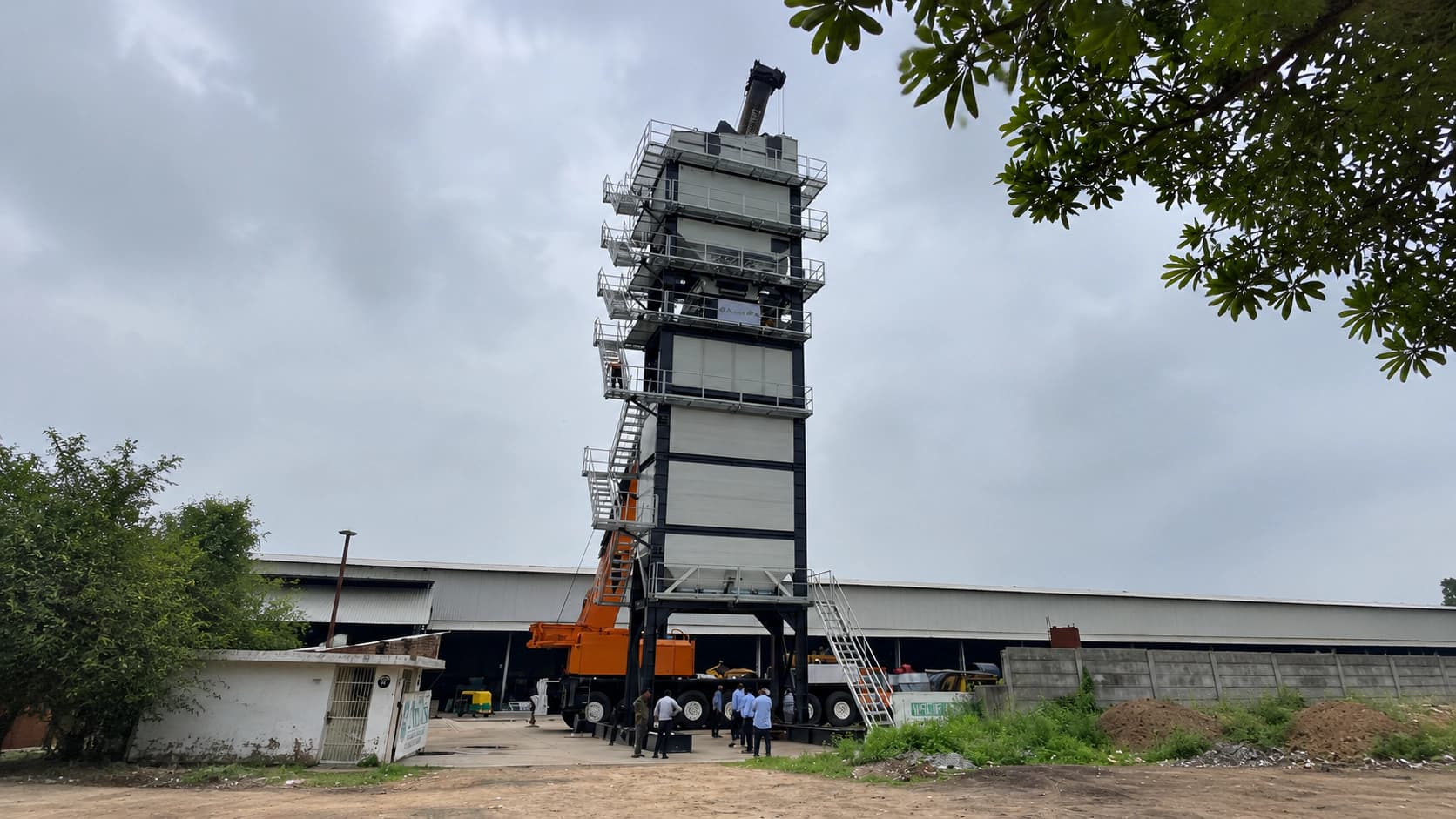

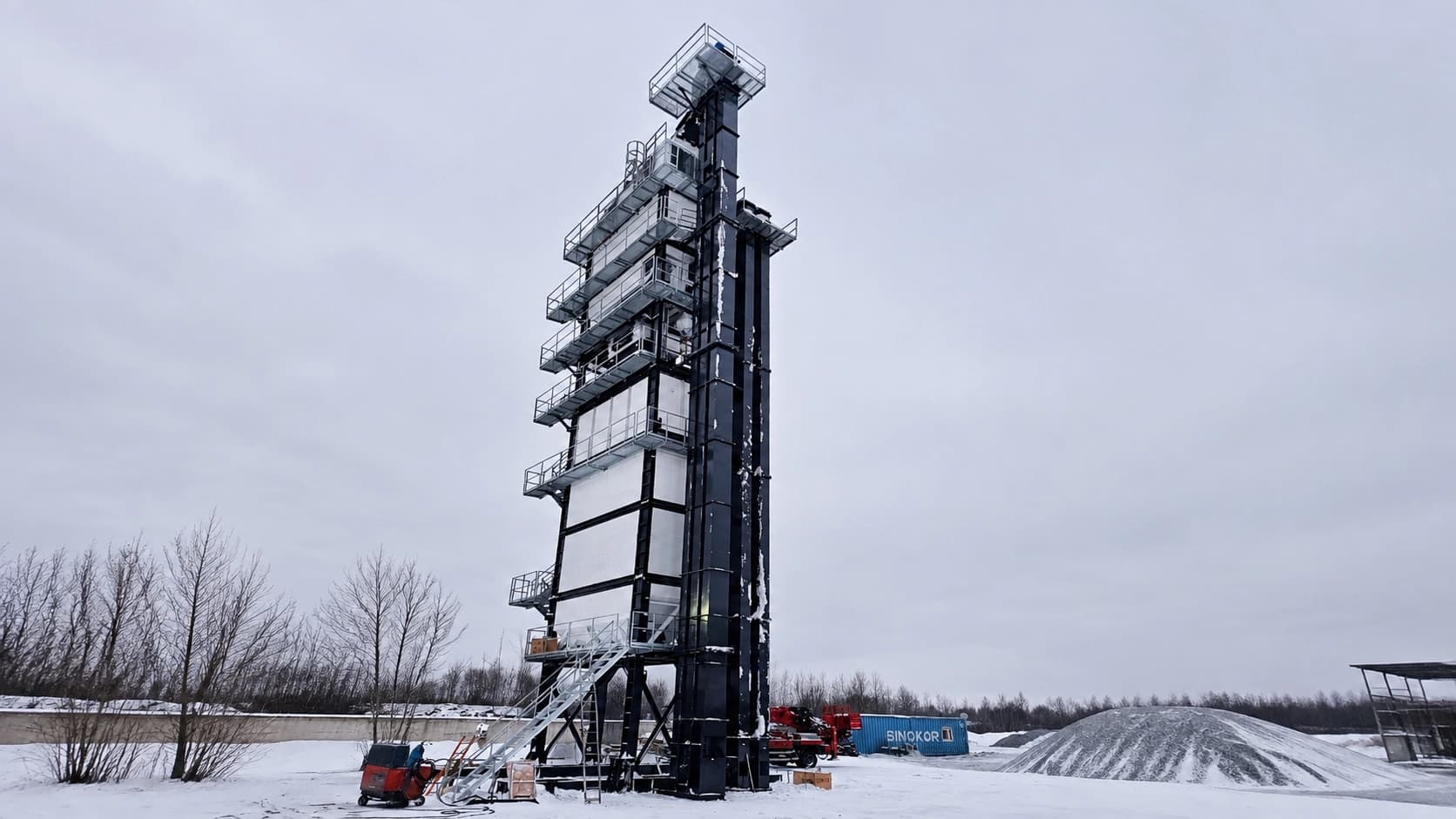

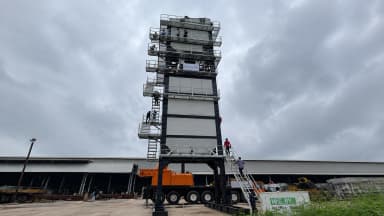

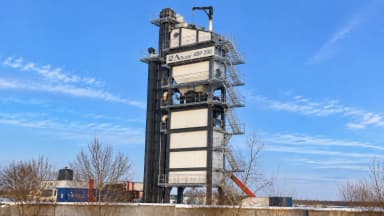

ABP 260 Stationary Asphalt Batch Plant
Up to 260 TPH Production | 3000kg Twin-Shaft Mixer | RAP & SMA Ready
The ABP Series 260 is a stationary, fully automatic asphalt batching plant designed for very high-capacity projects. With a rated output of up to 260 tons per hour (at 3% aggregate moisture and 150°C output temperature), it is ideal for mega projects such as highways, airports, and expressways....
Read More
See the ABP (200) Stationary Plant in Action
Key Features & Benefits
Discover what makes the ABP Series (200) a leader in ultra-high-capacity asphalt production.
High-Capacity Design
Rated up to 260 TPH production capacity at standard conditions
Reliable Mixing
Twin-shaft pugmill mixer delivers consistent, homogenous asphalt mix (exact batch size to be confirmed with Atlas)
Dust & Emissions Control
Large-capacity baghouse filter ensures emissions within international environmental norms
Automated Controls
PLC/SCADA-based system with manual override, free-fall compensation, alarms, and mix design storage (50+ recipes)
Sustainable Operation
Supports RAP and SMA configurations, enabling more eco-friendly asphalt production
The Efficiency Excellence
Why is the ABP (200) the ultimate choice for large-scale asphalt production?
Modular Construction
Container-friendly, modular units simplify freight, installation, and servicing
Efficient Heating
Counterflow drying drum with modulating burner for consistent aggregate heating and energy-efficient operation
Accurate Weighing
Load-cell-based weighing for aggregates, bitumen, and filler ensures precise dosing
Durable Design
Heavy-duty dryer, mixer, and bag filter units built for long service life
RAP Integration
Supports RAP addition with optional cold and hot recycling systems for reduced costs and improved sustainability
Precision-Engineered Components
Each component of the Stationary Asphalt Batch Plants (ABP) is designed for maximum efficiency and reliability
- Multi-bin configuration (commonly 5-bin)
- Anti-bridging design with frequency-controlled feeders
Smart Design, Seamless Operation
Browse our range of products designed for exceptional performance and reliability.
CONNECT WITH US
Ready to Build? Let’s Talk!
Whether you’re expanding existing facilities or starting new projects, we’re here to help you achieve optimal results. Complete the form, and our engineers will provide a customized solution within 24 hours.
Frequently asked questions.
What is the production capacity of the ABP 260?
+The ABP 260 delivers up to 260 TPH at standard conditions (3% aggregate moisture, 150°C output temperature).
